Tractor · 1954Unverified

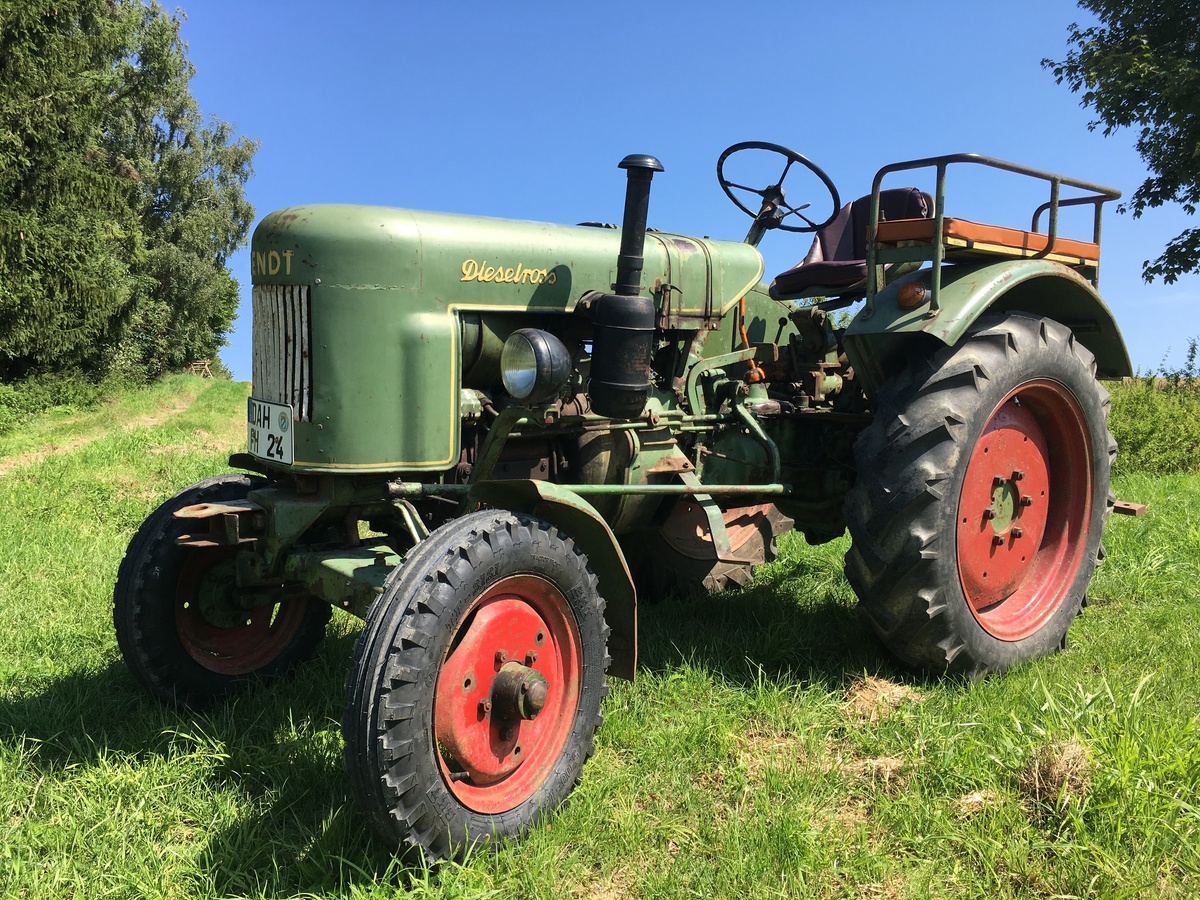

Fendt Dieselross F24
Fendt Dieselross F24 — Standard-tread tractor · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Hover a source tag to verify
Overview
ManufacturerFendtReference
Standard-tread tractorReference
Total built6369 (air cooled)Reference
Total built4148 (liquid cooled)Reference
Two-wheel driveReference
Open operator station.Reference
Engine
MWM 1.8L 2-cyl dieselReference
MWM 1.7L 2-cyl dieselReference
Engine17.9 kWReference
MWM AKD12ZReference
dieselReference
2-cylinderReference
air-cooledReference
Displacement1.8 LReference
Bore/Stroke98 x 120 mmReference
Power17.9 kWReference
Rated RPM2000Reference
MWM KD12ZReference
liquid-cooledReference
Displacement1.7 LReference
Bore/Stroke95 x 120 mmReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Dimensions
Front tire5.00-16Reference
Rear tire10-28Reference
Ag front5.00-16Reference
Ag rear10-28Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
