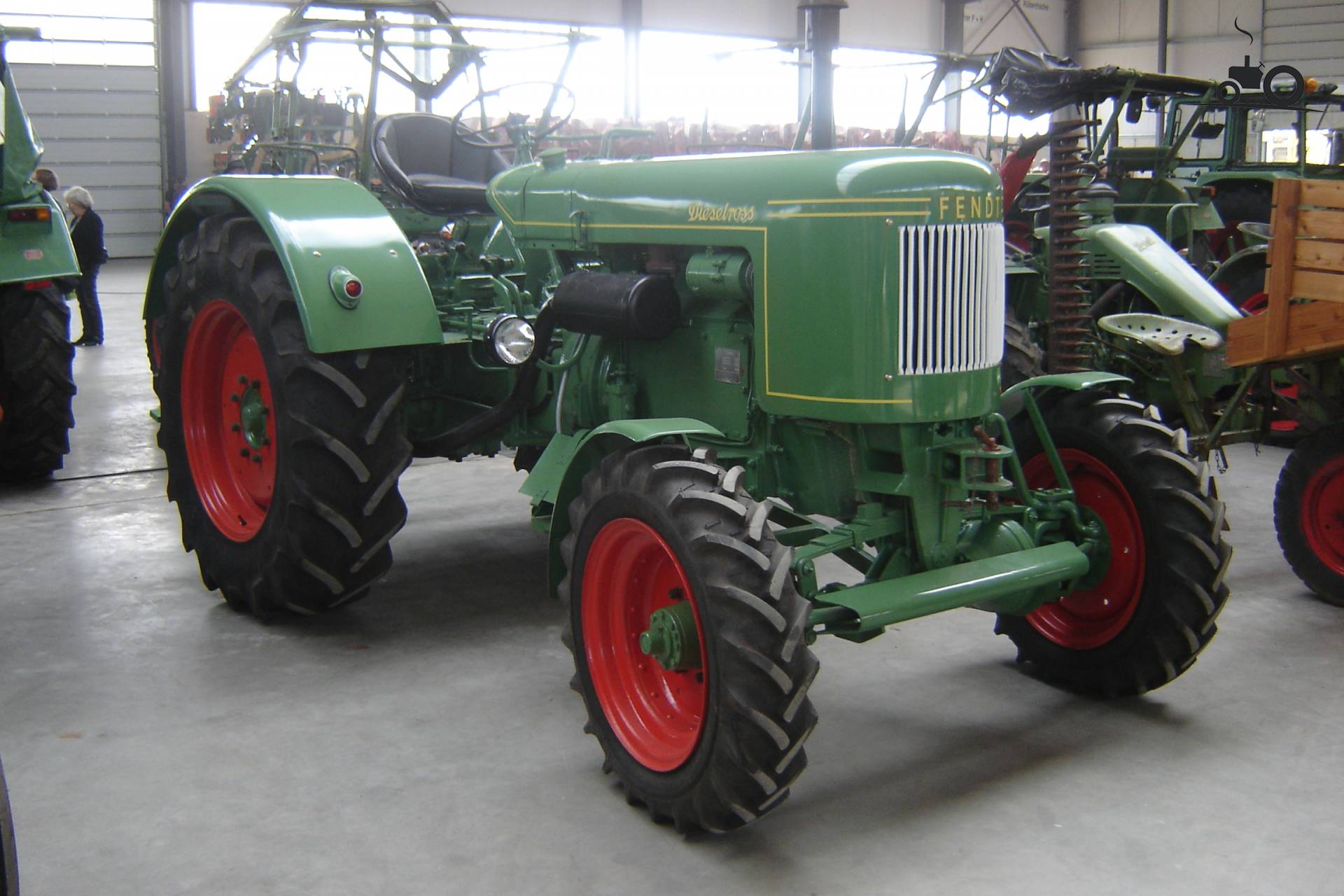

The Fendt Dieselross F40 is a tractor with a rated power of 40 hp, positioning it at the lighter end of its class. It was manufactured from 1951 to 1959. The tractor is equipped with a 3-cylinder diesel liquid-cooled engine, paired with two-wheel drive and a 5-speed gearbox. Its listed operating weight is 2399 kg, suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
2399 kg
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
40 hp
Recorded weight
2399 kg
Transmissions
5-speed gear
Production years
1951-1959
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerFendtReference
Standard-tread tractorReference
Built in Marktoberdorf, GermanyReference
Total built1030Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
MWM 3.5L 3-cyl dieselReference
Engine29.8 kWReference
MWM KDW415DReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.5 LReference
Bore/Stroke100 x 150 mmReference
Power29.8 kWReference
Rated RPM1500Reference
Idle RPM600-1620Reference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
Clutchdry discReference
Dimensions
Wheelbase222 cmReference
Weight2399 kgReference
Front tire6.00-20Reference
Rear tire13-30Reference
Ag front6.00-20Reference
Ag rear13-30Reference
Length369 cmReference
Width184 cmReference
Height180 cmReference
Ground clearance45 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
