Tractor · 1976Unverified

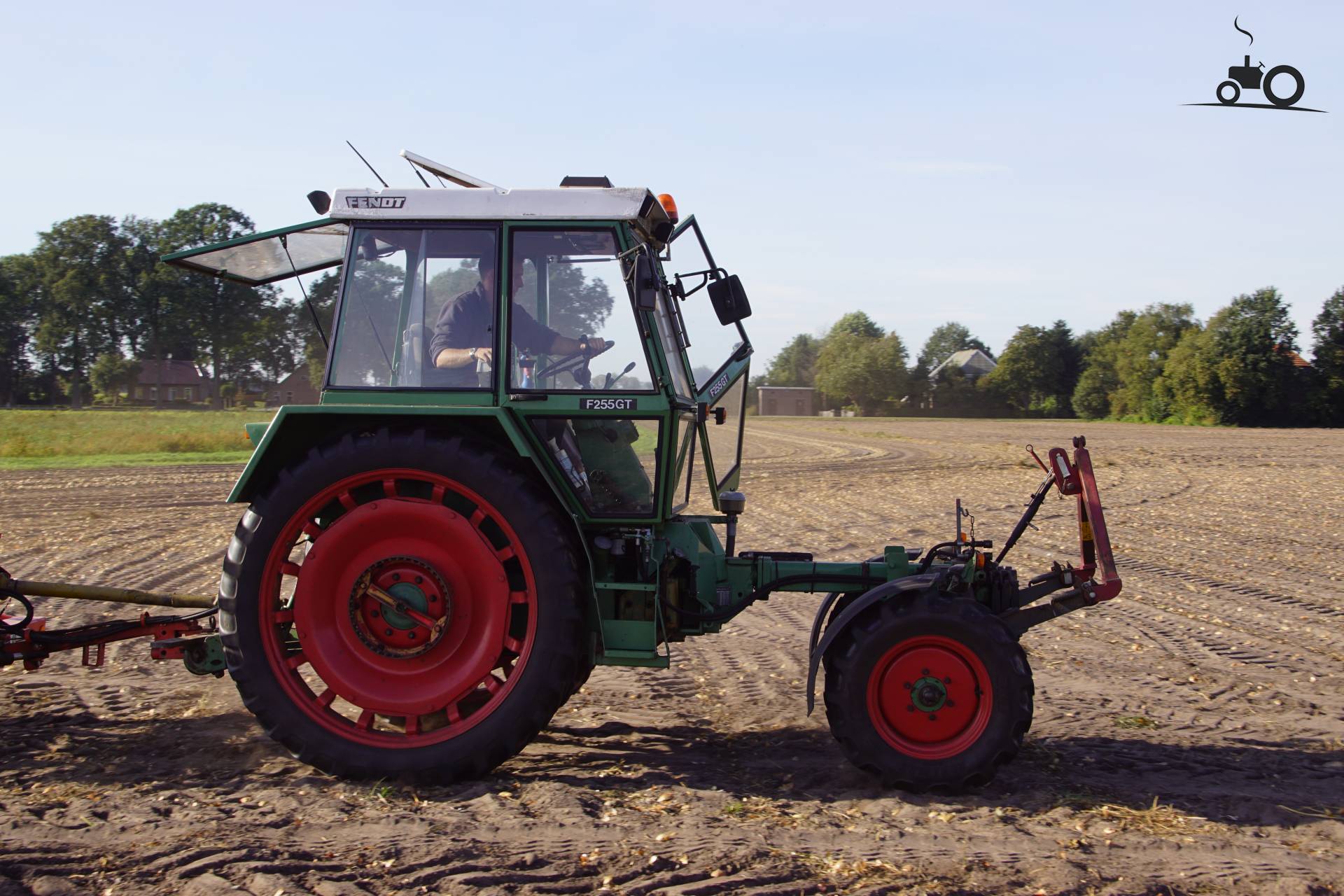

Fendt F255GT
Fendt F255GT — Tool Carrier tractor · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
3274 kg
Hover a source tag to verify
Overview
ManufacturerFendtReference
Tool Carrier tractorReference
Two-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical brakesReference
Cab standard.Reference
Engine
KHD 2.8L 3-cyl dieselReference
KHD 3.8L 4-cyl dieselReference
Fuel tank76.8 LReference
Engine52.2 kWReference
KHDReference
dieselReference
3-cylinderReference
air-cooledReference
Displacement2.8 LReference
Bore/Stroke100 x 120 mmReference
Power41.0 kWReference
Fuel systemdirect injectionReference
Rated RPM2300Reference
Starter volts12Reference
KHD F4L912HReference
4-cylinderReference
Displacement3.8 LReference
Power52.2 kWReference
Transmission
14-speed synchromeshReference
20-speed creeperReference
TypesynchromeshReference
Gears14 forward and 4 reverseReference
Clutchmechanical dry discReference
TypecreeperReference
Gears20 forward and 6 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure175.0 barReference
Pump flow40.1 lpmReference
Rear lift2050 kgReference
Rear PTO Type540/1000Reference
Front PTO Type540/1000Reference
Dimensions
Wheelbase299 cmReference
Weight3274 kgReference
Front tire7.50-16Reference
Rear tire13.6-36Reference
Ag front7.50-16Reference
Ag rear13.6-36Reference
Length463 cmReference
Width184 cmReference
Height (cab)256 cmReference
Ground clearance48 cmReference
Front tread135/150/164/169/180 cmReference
Rear tread150 cmReference
Electrical
Charging systemalternatorReference
Charging amps33Reference
Charging volts14Reference
Battery volts12Reference
Battery AH110Reference
Speeds
With 16.9/14-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
