Tractor · 1984Unverified

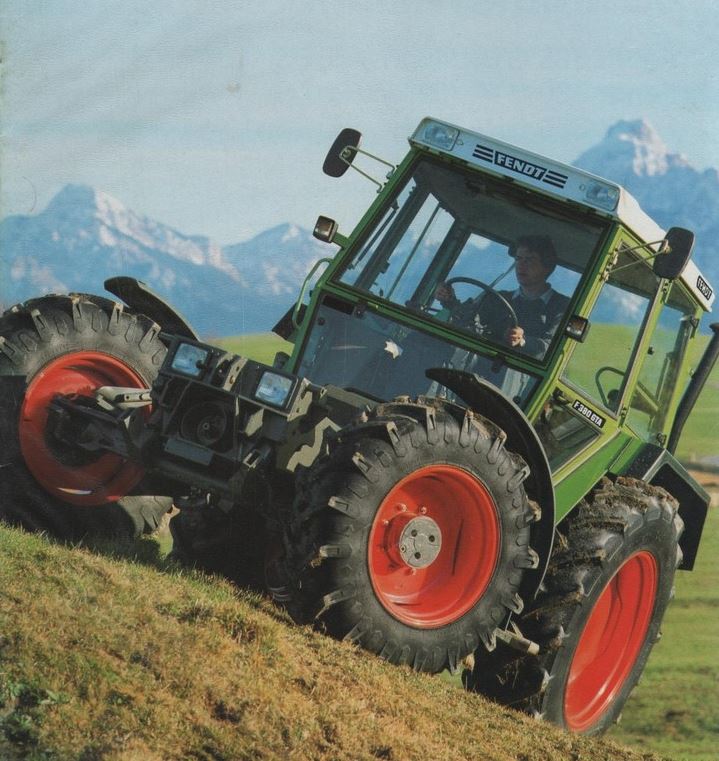

Fendt F380GH
Fendt F380GH · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
8268 to 9558 pounds
Hover a source tag to verify
Overview
ManufacturerFendtReference
Two- or four-wheel driveReference
Engine
KHD 4.1L 4-cyl dieselReference
Fuel tank79.9 LReference
Engine59.7 kWReference
KHDReference
dieselReference
4-cylinderReference
Displacement4.1 LReference
Bore/Stroke102 x 125 mmReference
Power59.7 kWReference
Rated RPM2400Reference
Torque260.1 NmReference
Torque RPM1550Reference
Transmission
21-speedReference
Gears21 forward and 6 reverseReference
PTO & Hydraulics
Pump flow68.1 lpmReference
Rear lift4380 kgReference
Rear PTO Type540, 750Reference
Dimensions
Wheelbase327 cmReference
Weight8268 to 9558 poundsReference
Front tire11.00-16Reference
Rear tire11.2-48Reference
Ag front11.00-16Reference
Ag rear11.2-48Reference
Length474 cmReference
Height281 cmReference
Weight3750 kgReference
Weight4335 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
