Tractor · 1972Unverified

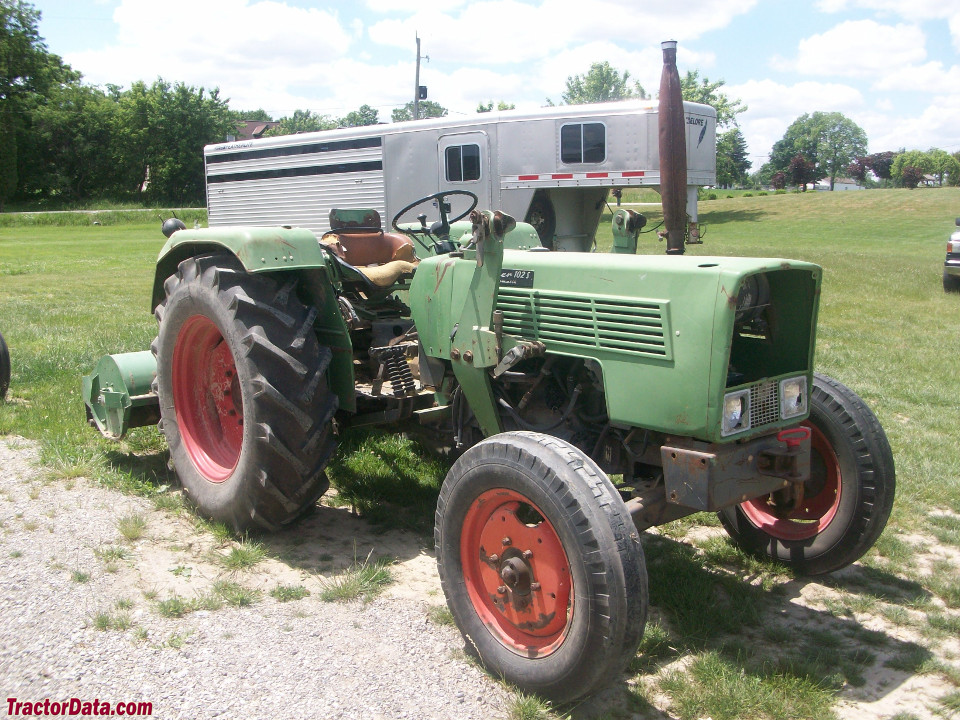

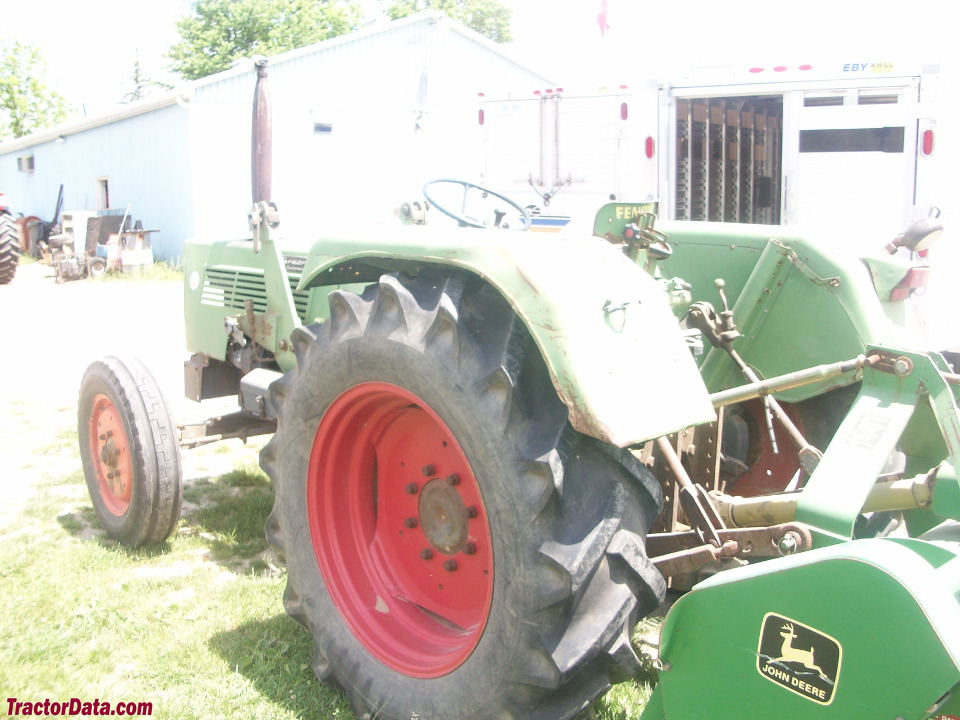

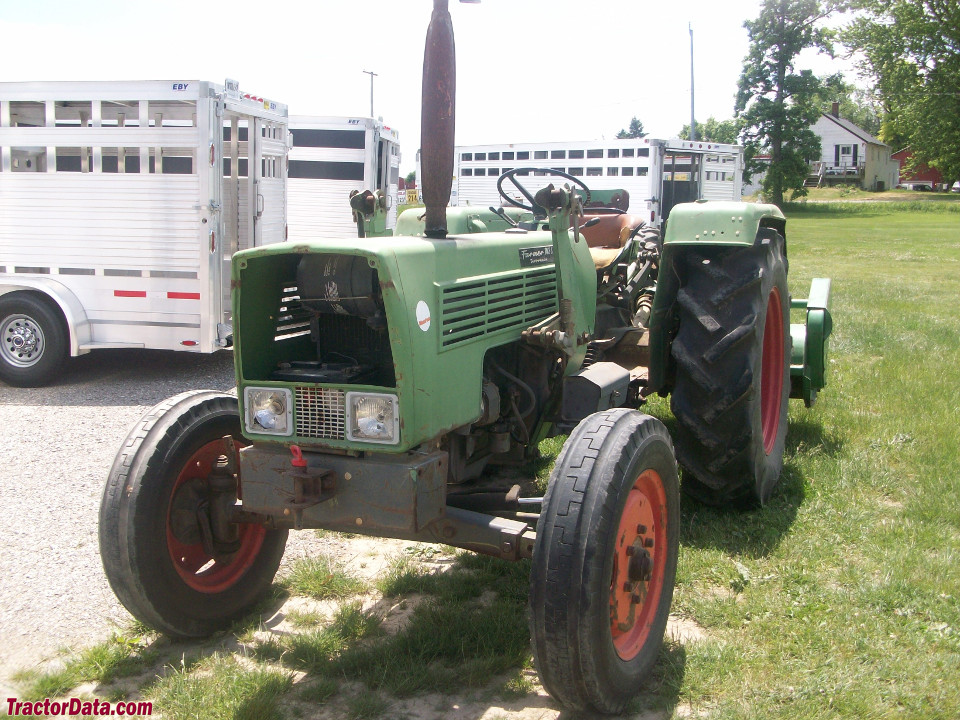

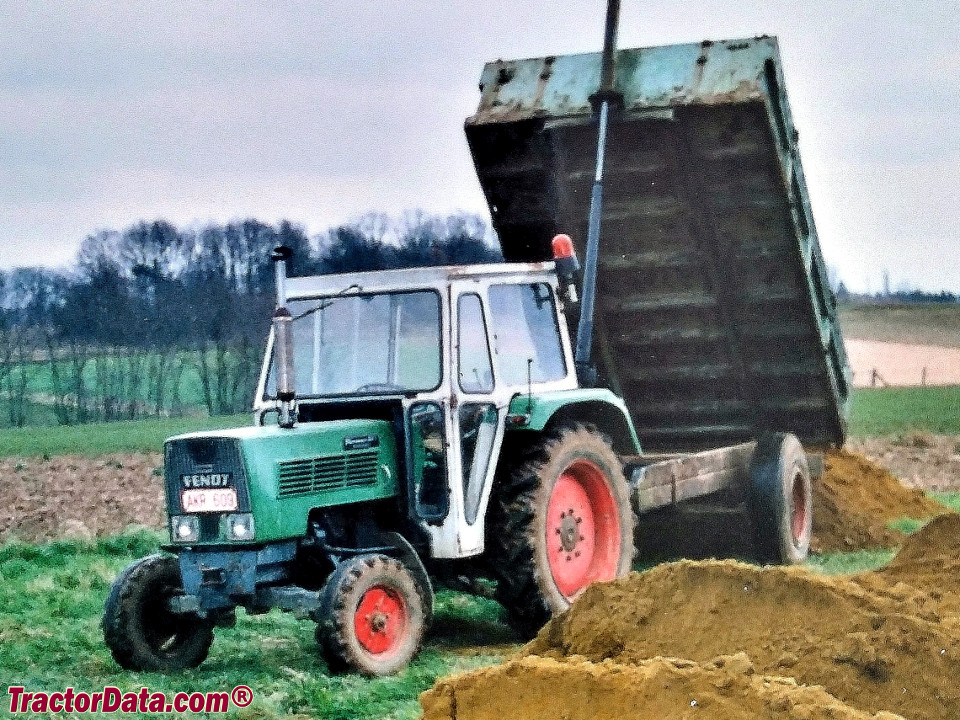

Fendt Farmer 102S
Fendt Farmer 102S — Model year 1972-19751976-1987 · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
5049 to 6019 pounds
Hover a source tag to verify
Overview
ManufacturerFendtReference
Row-Crop tractorReference
Two- or four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Mechanical drum brakesReference
Four-post ROPS.Reference
Engine
MWM 2.6L 3-cyl dieselReference
Fuel tank65.1 LReference
Engine29.8 kWReference
MWM D325-3Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement2.6 LReference
Bore/Stroke95 x 120 mmReference
Power29.8 kWReference
Fuel systemdirect injectionReference
Compression17.5:1Reference
Rated RPM2175Reference
Starter volts12Reference
Transmission
13-speed synchronizedReference
16-speed creeperReference
TypesynchronizedReference
Gears13 forward and 4 reverseReference
TypecreeperReference
Gears16 forward and 5 reverseReference
PTO & Hydraulics
Rear TypeII/IReference
Rear lift2000 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase208 cmReference
4WD Wheelbase211 cmReference
Weight5049 to 6019 poundsReference
Front tire6.00-16Reference
Rear tire9.5/9-36Reference
Standard tires (ag)Front: 6.00-16. Rear: 9.5/9-36Reference
Length362 cmReference
Width169 cmReference
Height234 cmReference
2WD Weight2290 kgReference
4WD Weight2730 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
