Tractor · 1972Unverified

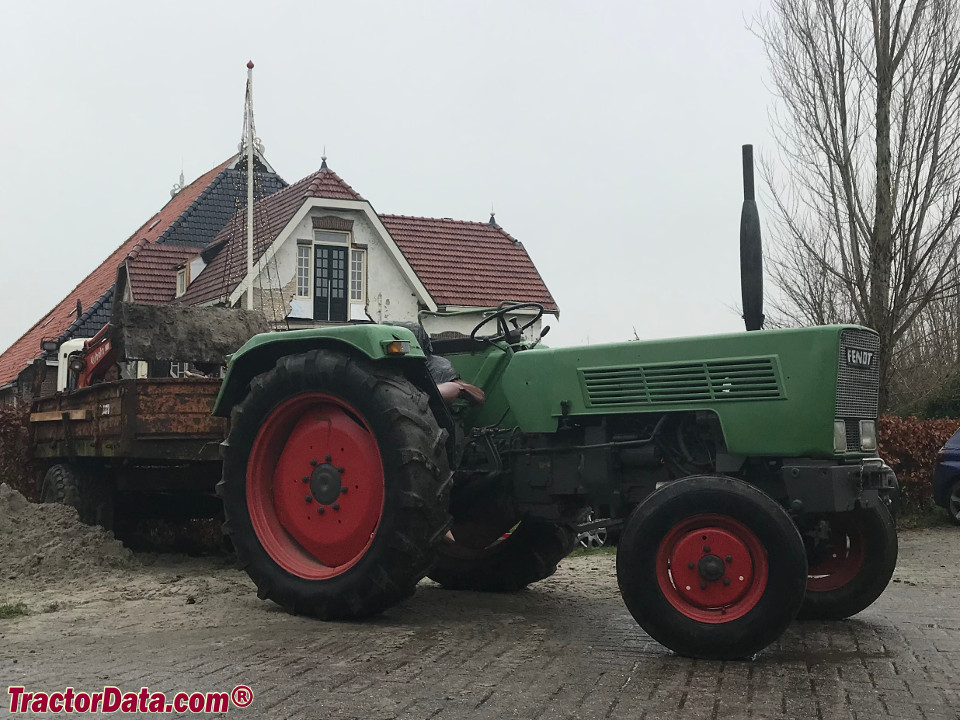

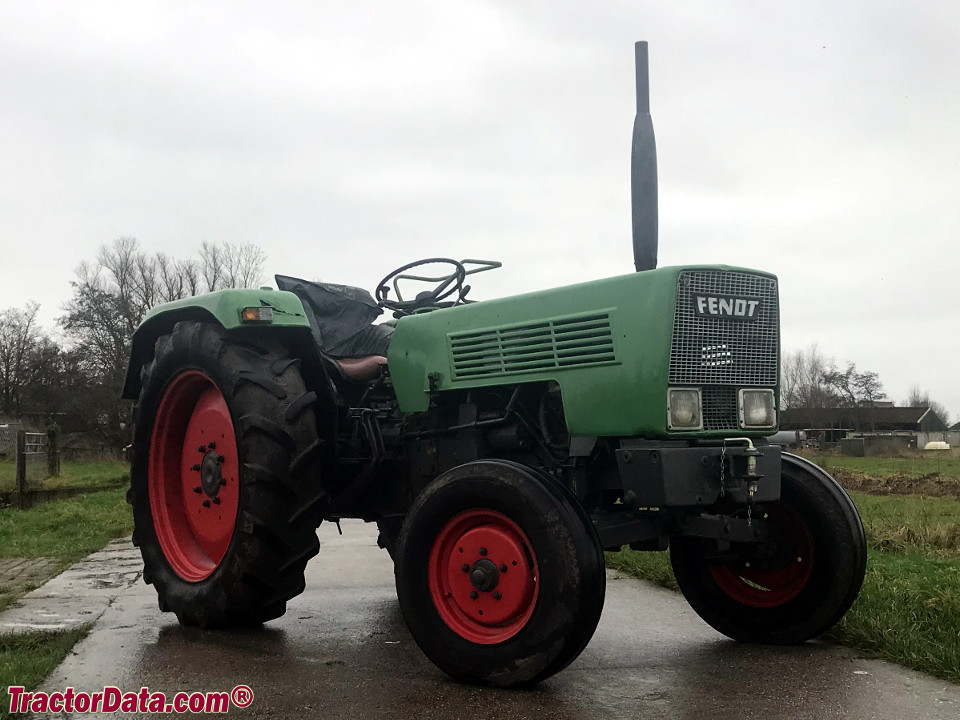

Fendt Farmer 103S
Fendt Farmer 103S — Model year 1972-19751976-1984 · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
4905 to 5534 pounds
Hover a source tag to verify
Overview
ManufacturerFendtReference
Row-Crop tractorReference
Two- or four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Mechanical drum brakesReference
Four-post ROPS.Reference
Engine
MWM 2.6L 3-cyl dieselReference
Fuel tank65.1 LReference
Engine35.8 kWReference
MWM D225-3Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Bore/Stroke95 x 120 mmReference
Power35.8 kWReference
Compression17.5:1Reference
Rated RPM2400Reference
Idle RPM650-2520Reference
Starter volts12Reference
Transmission
13-speed synchronizedReference
16-speed creeperReference
TypesynchronizedReference
Gears13 forward and 4 reverseReference
TypecreeperReference
Gears16 forward and 5 reverseReference
PTO & Hydraulics
Pressure175.0 barReference
Pump flow33.7 lpmReference
Rear TypeII/IReference
Rear lift2000 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase207 cmReference
4WD Wheelbase211 cmReference
Weight4905 to 5534 poundsReference
Front tire6.00-16Reference
2WD Rear tire12/11-32Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 12/11-32Reference
4WD Standard tires (ag)Front: 6.50-20. Rear: 11-32Reference
Length362 cmReference
Width172 cmReference
Height236 cmReference
Rear tread135 to 150 cmReference
2WD2224 kgReference
4WD2510 kgReference
Capacities
Max capacity4199 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
