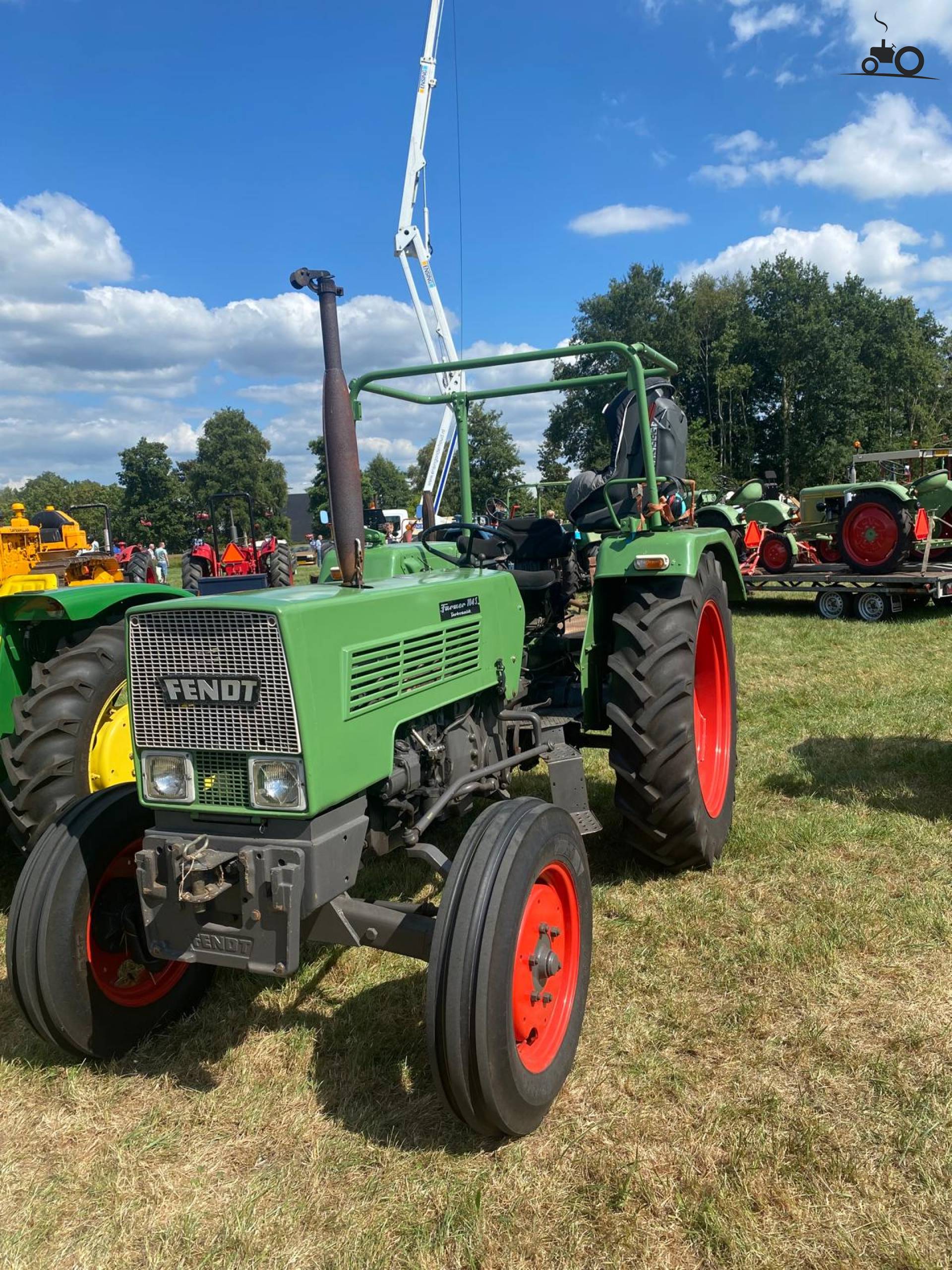

Fendt Farmer 104S
Fendt Farmer 104S — Model year 1972-19751976-1979 · 54 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Weight
5467 to 6129 pounds
Hover a source tag to verify
Overview
ManufacturerFendtReference
Row-Crop tractorReference
Two- or four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Mechanical drum brakesReference
Four-post ROPS.Reference
Engine
MWM 3.1L 3-cyl dieselReference
Fuel tank65.1 LReference
Engine40.3 kWReference
MWM D226-3Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke105 x 120 mmReference
Power40.3 kWReference
Compression18:1Reference
Rated RPM2300Reference
Idle RPM650-2490Reference
Firing order1-3-2Reference
Starter volts12Reference
Transmission
13-speed synchronizedReference
16-speed creeperReference
TypesynchronizedReference
Gears13 forward and 4 reverseReference
TypecreeperReference
Gears16 forward and 5 reverseReference
PTO & Hydraulics
Rear TypeII/IReference
Rear lift2000 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2164Reference
Engine RPM1000@2251Reference
Dimensions
2WD Wheelbase212 cmReference
4WD Wheelbase205 cmReference
Weight5467 to 6129 poundsReference
Front tire6.50-20Reference
2WD Rear tire12.4/11-38Reference
2WD Standard tires (ag)Front: 6.50-20. Rear: 12.4/11-38Reference
4WD Standard tires (ag)Front: 10.5-20. Rear: 12.4/11-36Reference
Length368 cmReference
Width180 cmReference
Height235 cmReference
Height (ROPS)260 cmReference
2WD Weight2479 kgReference
4WD Weight2780 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
