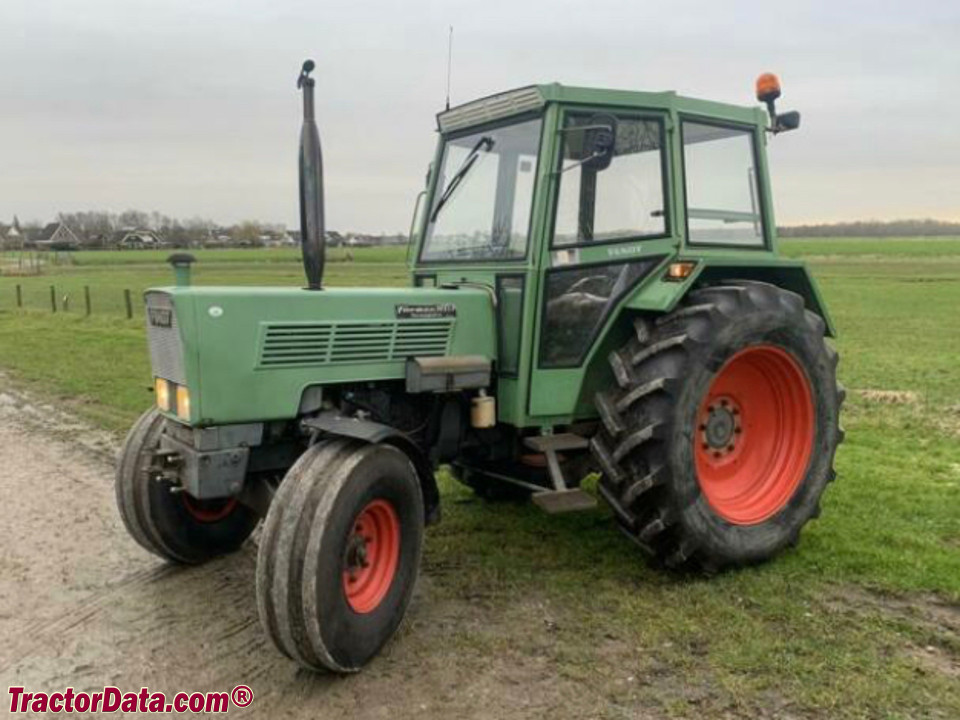

The Fendt Farmer 105LS is a tractor rated at approximately 59 horsepower, positioning it at the lighter end of its class. It was manufactured from 1977 to 1985. The tractor features a 4-cylinder diesel liquid-cooled engine coupled with four-wheel drive and a 13-speed gearbox. Its operating weight ranges from 6636 to 7341 pounds.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
6636 to 7341 pounds
Catalogue coverage
Variants represented
2
Richest spec table
51 rows
Recorded power
59 hp
Transmissions
13-speed synchronized
Production years
1977-1985
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerFendtReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Cab standard with available heater.Reference
Variants
105SbasicReference
105LSdeluxeReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank87.8 LReference
Engine44.0 kWReference
MWM D226-4Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power44.0 kWReference
Rated RPM2175Reference
StarterelectricReference
Starter volts12Reference
Transmission
13-speed synchronizedReference
16-speed creeperReference
TypesynchronizedReference
Gears13 forward and 4 reverseReference
TypecreeperReference
Gears16 forward and 5 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure175.0 barReference
Pump flow43.9 lpmReference
Rear lift2770 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase222 cmReference
4WD Wheelbase224 cmReference
Weight6636 to 7341 poundsReference
Front tire7.50-18Reference
2WD Rear tire13.6/12-36Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 13.6/12-36Reference
4WD Standard tires (ag)Front: 10.5-20. Rear: 13.6/12-36Reference
Length382 cmReference
Width188 cmReference
Height245 cmReference
2WD3010 kgReference
4WD3329 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps28Reference
Charging volts14Reference
Battery volts12Reference
Battery AH110Reference
Capacities
Max capacity5000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
