Tractor · 1972Unverified

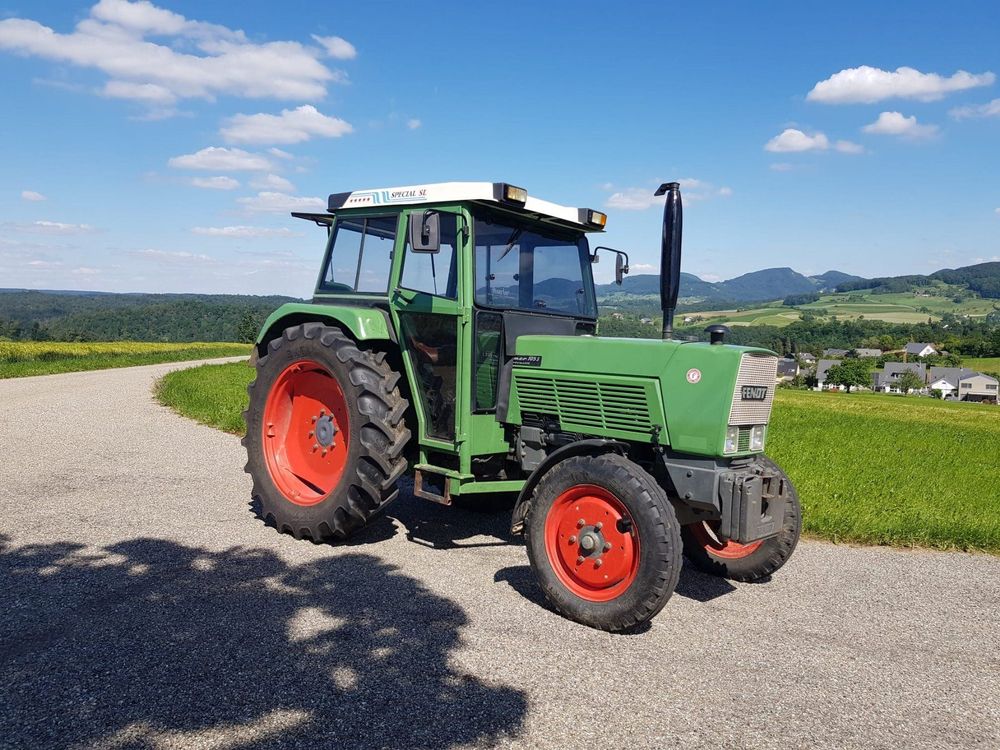

Fendt Farmer 105S
Fendt Farmer 105S — Farmer 100 Series · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
6327 to 7033 pounds
Hover a source tag to verify
Overview
ManufacturerFendtReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Cab standard.Reference
Variants
105SbasicReference
105LSdeluxeReference
Engine
MWM 3.4L 4-cyl dieselReference
MWM 4.2L 4-cyl dieselReference
Fuel tank87.8 LReference
Engine44.0 kWReference
MWM D225-4Reference
dieselReference
4-cylinderReference
liquid-cooledReference
The D225-4 was the original engine in the Farmer 105S, used through 1974.Reference
Displacement3.4 LReference
Bore/Stroke95 x 120 mmReference
Power44.0 kWReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
MWM D226-4Reference
The D226-4 was used beginning in 1975.Reference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Rated RPM2175Reference
Transmission
13-speed synchronizedReference
16-speed creeperReference
TypesynchronizedReference
Gears13 forward and 4 reverseReference
TypecreeperReference
Gears16 forward and 5 reverseReference
PTO & Hydraulics
Rear lift2580 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase222 cmReference
4WD Wheelbase224 cmReference
Weight6327 to 7033 poundsReference
Front tire7.50-18Reference
2WD Rear tire13.6/12-36Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 13.6/12-36Reference
4WD Standard tires (ag)Front: 10.5-20. Rear: 13.6/12-36Reference
Length382 cmReference
Width188 cmReference
Height245 cmReference
2WD Weight2869 kgReference
4WD Weight3190 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps28Reference
Charging volts14Reference
Battery volts12Reference
Battery AH110Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
