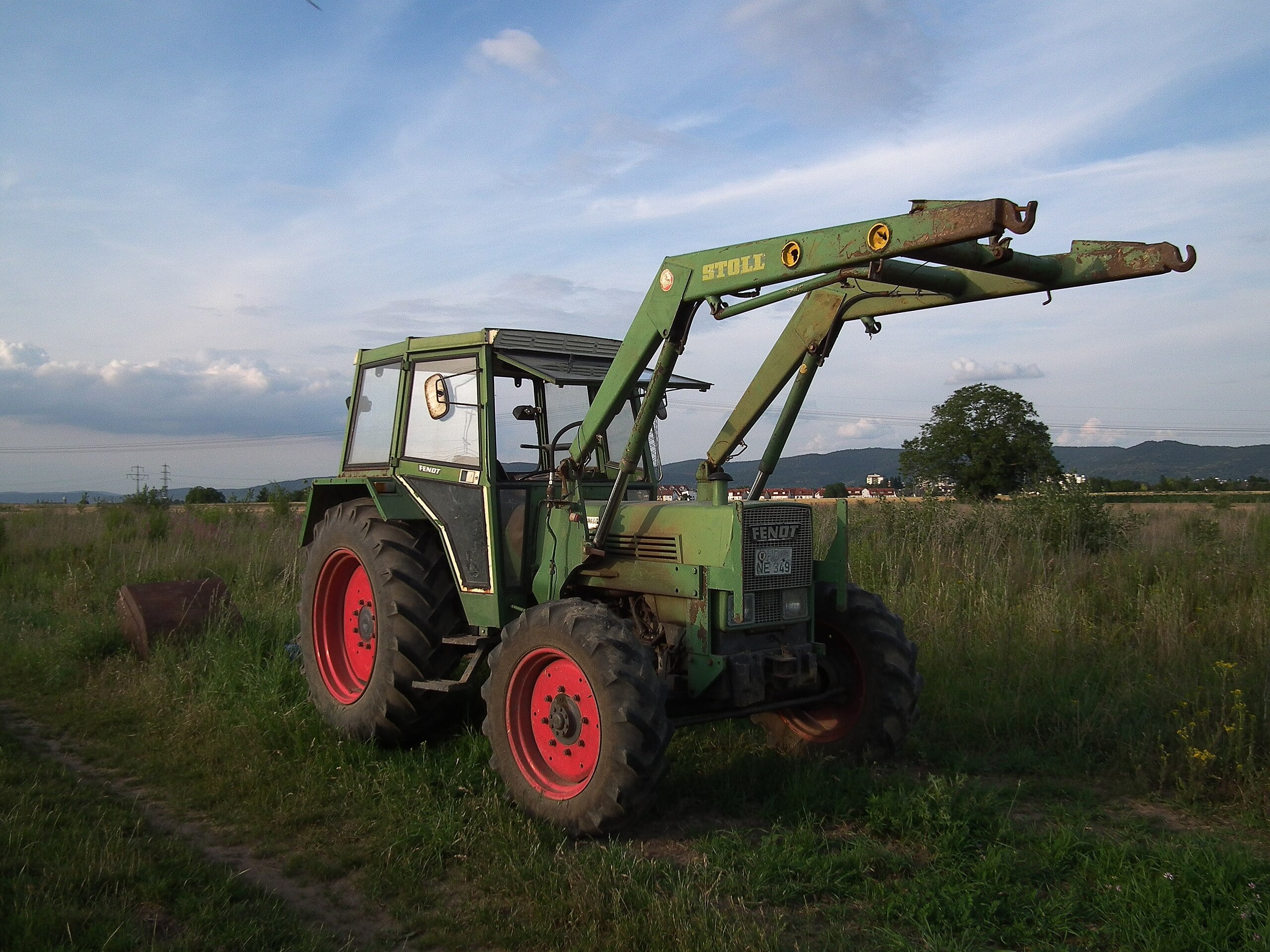

The Fendt Farmer 106LS is a lightweight tractor model with a rated engine power of approximately 64 hp, produced from 1977 to 1980. It features a 4-cylinder liquid-cooled diesel engine and four-wheel drive, paired with a 13-speed gearbox. The operating weight of the Fendt Farmer 106LS ranges from 7044 to 7959 pounds, and it is designed for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Weight
7044 to 7959 pounds
Catalogue coverage
Variants represented
2
Richest spec table
51 rows
Recorded power
64 hp
Transmissions
13-speed synchronized
Production years
1977-1980
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerFendtReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Cab standard with available heater.Reference
Variants
106SbasicReference
106LSdeluxeReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank87.8 LReference
Engine48.0 kWReference
MWM D226-4Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power48.0 kWReference
Rated RPM2175Reference
StarterelectricReference
Starter volts12Reference
Transmission
13-speed synchronizedReference
16-speed creeperReference
TypesynchronizedReference
Gears13 forward and 4 reverseReference
TypecreeperReference
Gears16 forward and 5 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure175.0 barReference
Pump flow43.9 lpmReference
Rear lift2770 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase222 cmReference
4WD Wheelbase224 cmReference
Weight7044 to 7959 poundsReference
Front tire7.50-18Reference
2WD Rear tire13.6/12-38Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 13.6/12-38Reference
4WD Standard tires (ag)Front: 11.2/10-24. Rear: 13.6/12-38Reference
Length382 cmReference
Width200 cmReference
Height247 cmReference
2WD3195 kgReference
4WD3610 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps28Reference
Charging volts14Reference
Battery volts12Reference
Battery AH110Reference
Capacities
Max capacity5000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
