Tractor · 1974Unverified

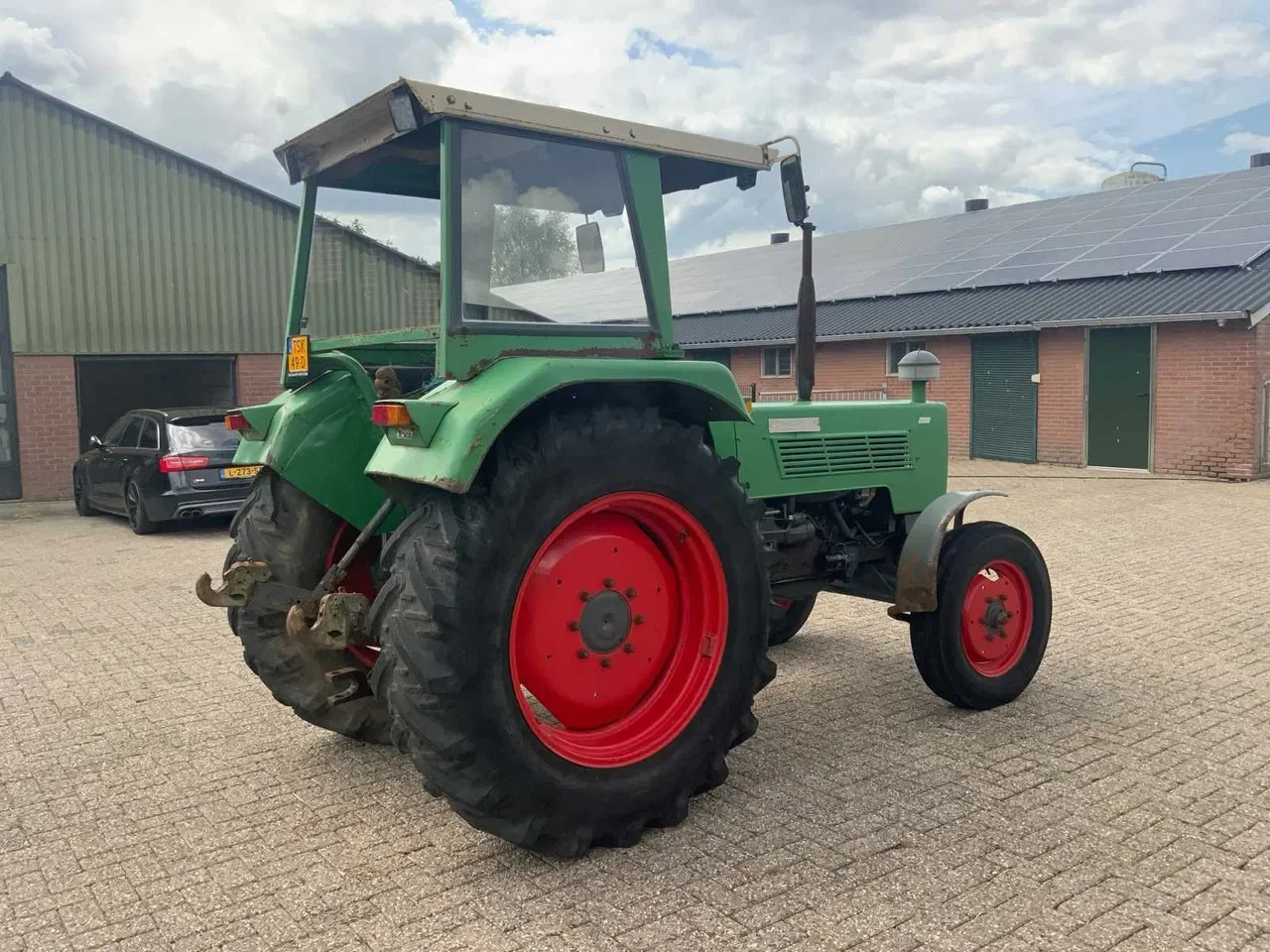

Fendt Farmer 108S
Fendt Farmer 108S — Farmer 100 Series · 74 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Weight
6967 to 7804 pounds
Hover a source tag to verify
Overview
ManufacturerFendtReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Cab standard.Reference
Variants
108SbasicReference
108LSdeluxeReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank87.8 LReference
Engine55.0 kWReference
MWM D226-4Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power55.0 kWReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
13-speed synchronizedReference
16-speed creeperReference
TypesynchronizedReference
Gears13 forward and 4 reverseReference
TypecreeperReference
Gears16 forward and 5 reverseReference
PTO & Hydraulics
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase222 cmReference
4WD Wheelbase224 cmReference
Weight6967 to 7804 poundsReference
Front tire7.50-18Reference
2WD Rear tire13.6/12-38Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 13.6/12-38Reference
4WD Standard tires (ag)Front: 11.2/10-24. Rear: 13.6/12-38Reference
Length389 cmReference
Width200 cmReference
Height247 cmReference
2WD Weight3160 kgReference
4WD Weight3539 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps28Reference
Charging volts14Reference
Battery volts12Reference
Battery AH110Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
