Tractor · 1971Unverified

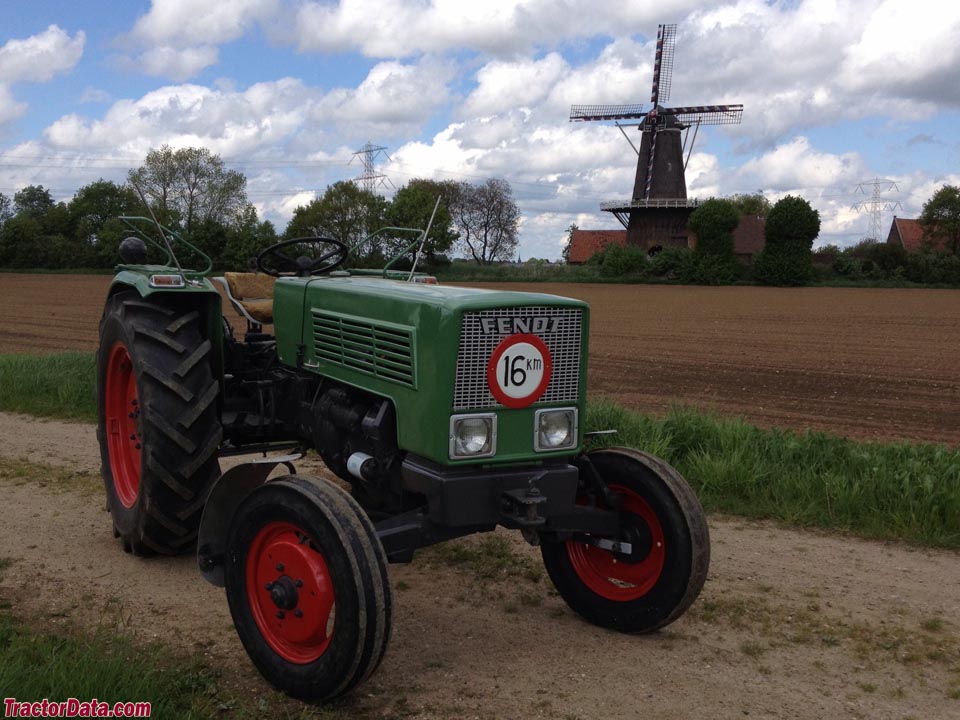

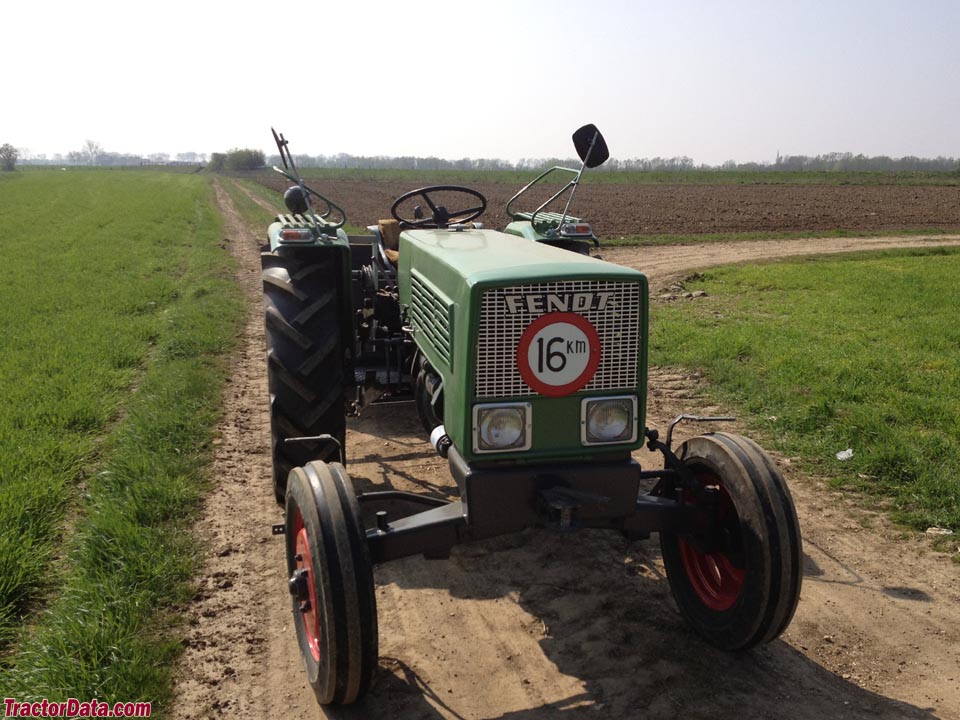

Fendt Farmer 1D
Fendt Farmer 1D · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
2399 kg
Hover a source tag to verify
Overview
ManufacturerFendtReference
Two-wheel driveReference
Open operator station.Reference
Engine
MWM 2.6L 3-cyl dieselReference
Fuel tank30.3 LReference
Engine25.4 kWReference
MWMReference
dieselReference
3-cylinderReference
Displacement2.6 LReference
Bore/Stroke95 x 120 mmReference
Power25.4 kWReference
Rated RPM2100Reference
Firing order1-2-3Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Rear lift1500 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase199 cmReference
Weight2399 kgReference
Front tire5.50-16Reference
Rear tire11.2-28Reference
Ag front5.50-16Reference
Ag rear11.2-28Reference
Length330 cmReference
Height231 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
