Tractor · 1967Unverified

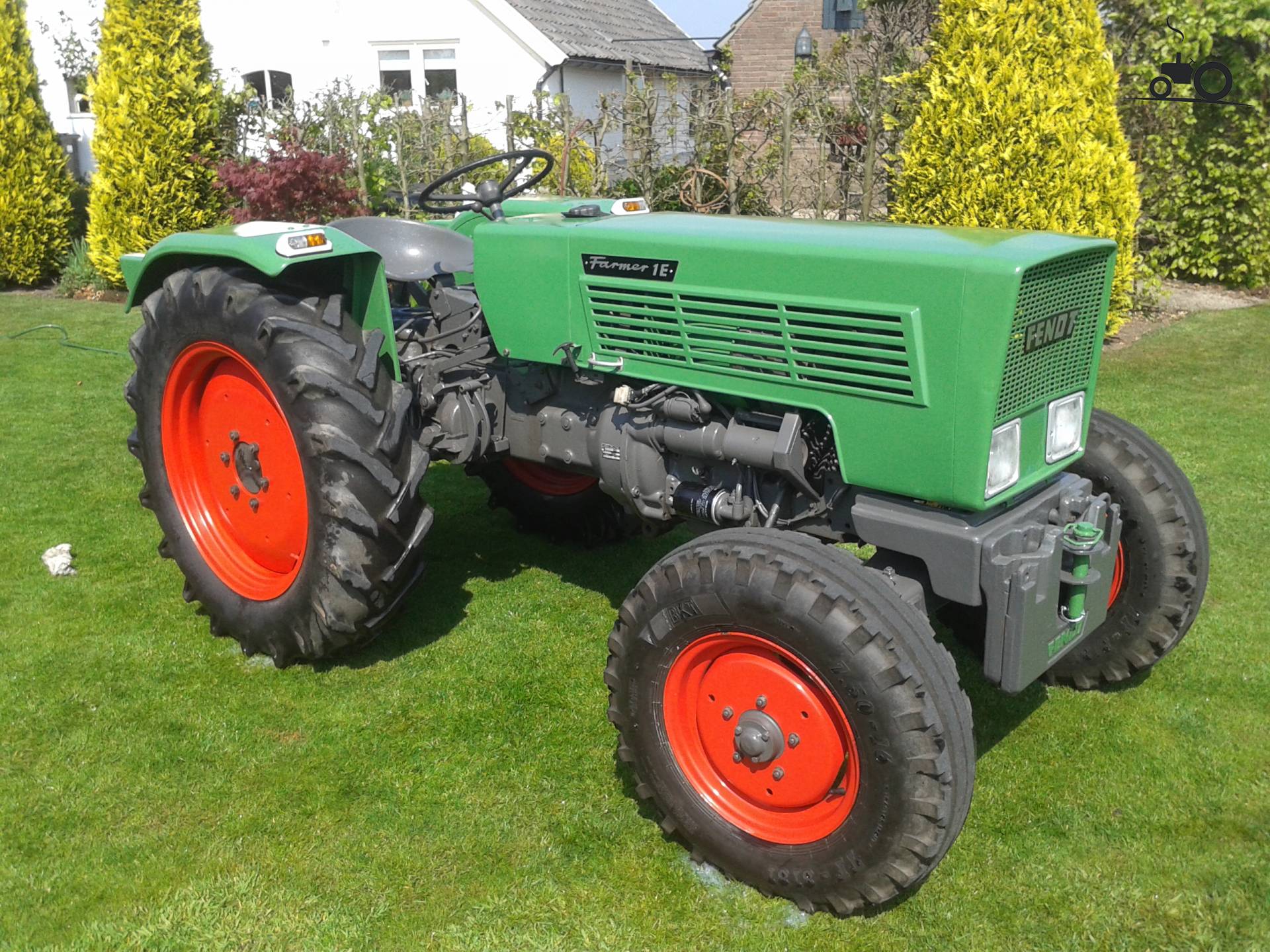

Fendt Farmer 1E
Fendt Farmer 1E · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1610 kg
Hover a source tag to verify
Overview
ManufacturerFendtReference
Engine
MWM 1.7L 2-cyl dieselReference
Fuel tank31.0 LReference
Engine22.4 kWReference
MWMReference
dieselReference
2-cylinderReference
Displacement1.7 LReference
Bore/Stroke95 x 120 mmReference
Power22.4 kWReference
Rated RPM2275Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear lift1500 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase186 cmReference
Weight1610 kgReference
Front tire5.00-16Reference
Rear tire9.5-30Reference
Ag front5.00-16Reference
Ag rear9.5-30Reference
Length318 cmReference
Height219 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
