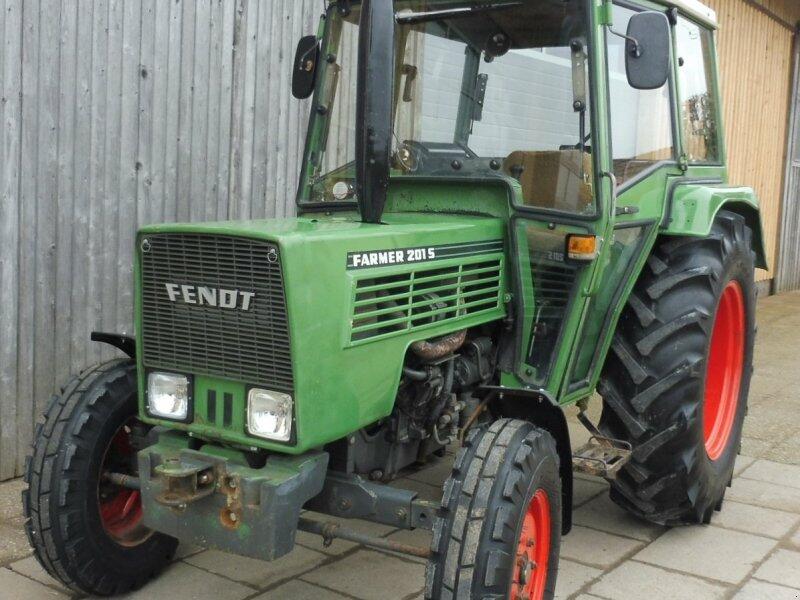

The Fendt Farmer 201S is a tractor with a rated output of 45 hp, categorising it as one of the more compact options in its class. It was manufactured between 1975 and 1982. The tractor is equipped with a 3-cylinder diesel engine, which powers mechanical front-wheel drive through a 13-speed gearbox. It has a listed weight of 4443 to 4972 pounds and is suited for tasks on around 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
4443 to 4972 pounds
Catalogue coverage
Variants represented
2
Richest spec table
29 rows
Recorded power
45 hp
Recorded weight
2015 kg
Transmissions
13-speed
Production years
1975-1982
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerFendtReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Engine
KHD 2.8L 3-cyl dieselReference
Fuel tank60.2 LReference
Engine33.6 kWReference
KHDReference
dieselReference
3-cylinderReference
Displacement2.8 LReference
Bore/Stroke100 x 120 mmReference
Power33.6 kWReference
Rated RPM2000Reference
Transmission
13-speedReference
Gears13 forward and 4 reverseReference
PTO & Hydraulics
Pump flow34.1 lpmReference
Rear lift1539 kgReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase197 cmReference
Weight4443 to 4972 poundsReference
Front tire7.50-16Reference
Rear tire12.4-32Reference
Ag front7.50-16Reference
Ag front7.5-18 (4WD)Reference
Ag rear12.4-32Reference
Length345 cmReference
Height234 cmReference
Weight2015 kgReference
Weight2255 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
