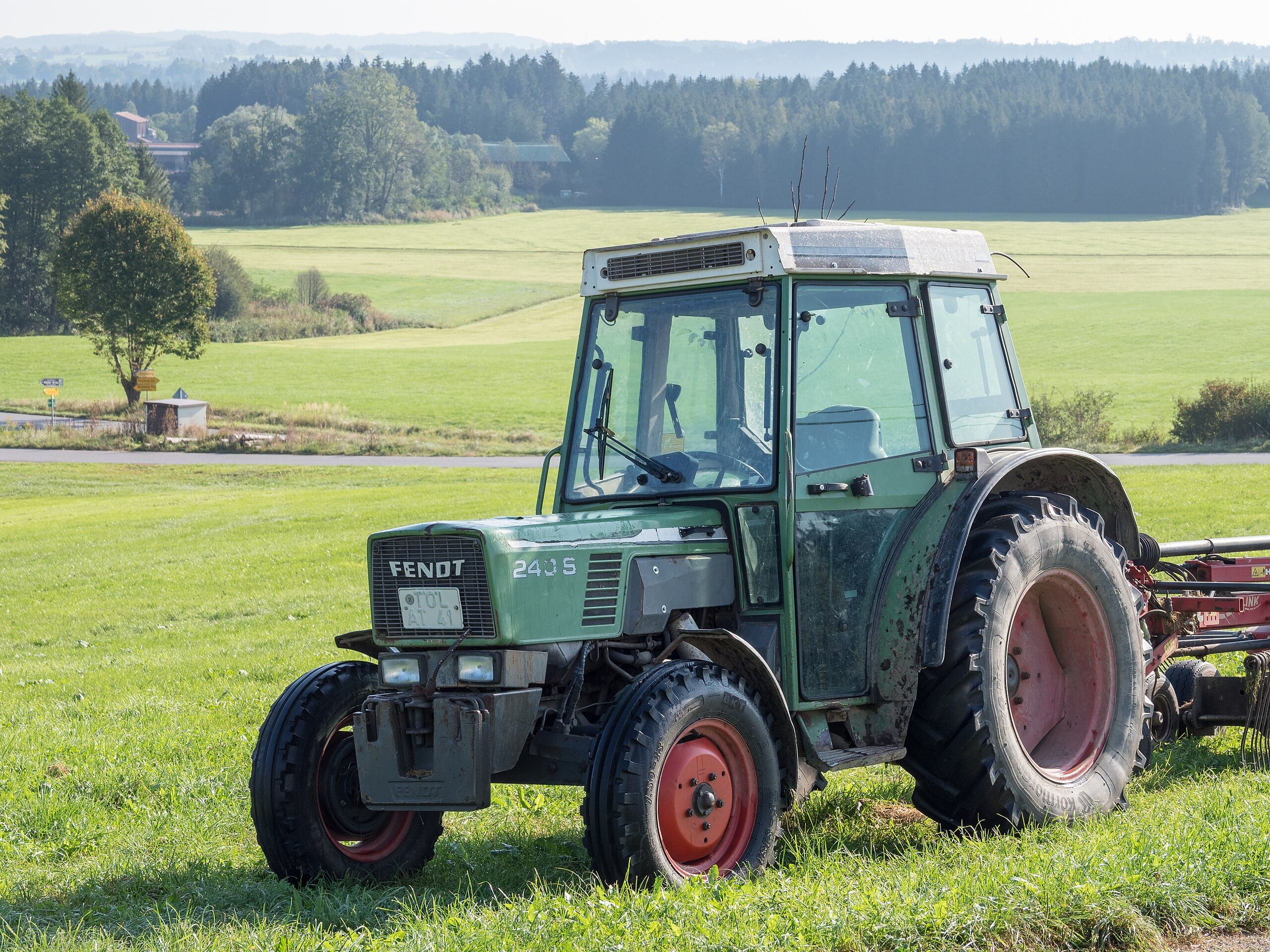

The Fendt Farmer 240S is a compact tractor model with a rated output of 40 hp. It was manufactured from 1987 to 1993 and features a 3-cylinder diesel air-cooled engine. The tractor is equipped with two-wheel drive and a 21-speed gearbox, with a listed weight of 2335 kg. It is designed for tasks on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
2335 kg
Catalogue coverage
Variants represented
2
Richest spec table
35 rows
Recorded power
40 hp
Recorded weight
2335 kg
Transmissions
21-speed
Production years
1987-1993
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerFendtReference
Row-Crop tractorReference
Two-wheel driveReference
Power steeringReference
Hydraulic drum brakesReference
Engine
KHD 2.8L 3-cyl dieselReference
Fuel tank60.2 LReference
Engine29.8 kWReference
KHD F3L912Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement2.8 LReference
Bore/Stroke100 x 120 mmReference
Power29.8 kWReference
Fuel systemdirect injectionReference
Rated RPM2000Reference
Torque163.9 NmReference
Torque RPM1450Reference
StarterelectricReference
Starter volts12Reference
Transmission
21-speedReference
Gears21 forward and 6 reverseReference
Gearshift with three gears (1-3), plus reverse (R), and three overdrive gears (25, 30, and 40 kph). Triple range gear split provides three speeds for each of the non-overdrive gears. Low and high ranges. Transmission also available with addition super-creeper range providing 30 gears forward and 9 reverse.Reference
PTO & Hydraulics
Pump flow34.1 lpmReference
Rear lift2450 kgReference
Rear PTO Type540, 750, 1000Reference
Dimensions
Wheelbase205 cmReference
Weight2335 kgReference
Front tire7.50-16Reference
Rear tire12.4R32Reference
Ag front7.50-16Reference
Ag rear12.4R32Reference
Length353 cmReference
Height229 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
