Tractor · 1987Unverified

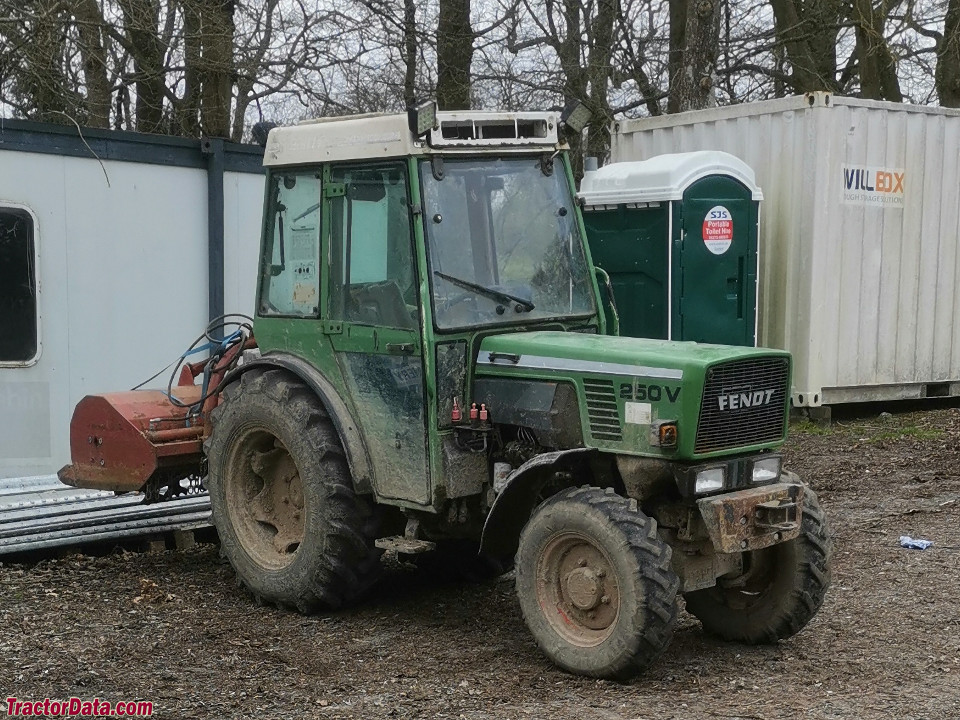

Fendt Farmer 250V

Name: Fendt Farmer 250V
Brand: Fendt

Fendt Farmer 250V — Farmer 200 Series · 50 hp. Reference specifications; pending source verification.

The Fendt Farmer 250V is a compact tractor model with a rating of 50 hp. It was produced from 1987 to 2002 and features a 3-cylinder diesel air-cooled engine. The tractor has a four-wheel drive system with a 20-speed gearbox and a weight range of 4166 to 4519 pounds. Its intended applications include tasks on plots of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

50 hp

Weight

4166 to 4519 pounds

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

50 hp

Transmissions

20-speed

Production years

1987-2002

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendtReference

Orchard/Vineyard tractorReference

Two- or four-wheel driveReference

Power steeringReference

Mechanical drum brakesReference

Two-post mid-mount folding ROPS. Cab available with heat and air-conditioning.Reference

Engine

KHD 2.8L 3-cyl dieselReference

Fuel tank60.0 LReference

Engine37.0 kWReference

KHD F3L912Reference

dieselReference

3-cylinderReference

air-cooledReference

Displacement2.8 LReference

Bore/Stroke100 x 120 mmReference

Power37.0 kWReference

Rated RPM2300Reference

Torque187.0 NmReference

Torque RPM1450Reference

StarterelectricReference

Starter volts12Reference

Transmission

20-speedReference

Gears20 forward and 6 reverseReference

Gears20 forward and reverseReference

PTO & Hydraulics

Pressure180.0 barReference

Total flow46.9 lpmReference

Rear PTOindependentReference

Rear PTO Type540/750Reference

Rear PTO Type540/750/1000Reference

Dimensions

2WD Wheelbase197 cmReference

4WD Wheelbase196 cmReference

Weight4166 to 4519 poundsReference

Front tire6.00-16Reference

2WD Rear tire11.2-24Reference

2WD Standard tires (ag)Front: 6.00-16. Rear: 11.2-24Reference

4WD Standard tires (ag)Front: 7.5L15. Rear: 11.2-24Reference

Length339 cmReference

Width104 cmReference

Height (ROPS)206 cmReference

Height (cab)215 cmReference

2WD Ground clearance29 cmReference

4WD Ground clearance22 cmReference

2WD Front tread76 cmReference

4WD Front tread79 cmReference

Rear tread75 cmReference

2WD1889 kgReference

4WD2049 kgReference

Max Drawbar1000 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Charging volts14Reference

Battery volts12Reference

Battery AH88Reference

Capacities

Max capacity3499 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
