Tractor · 1987Unverified

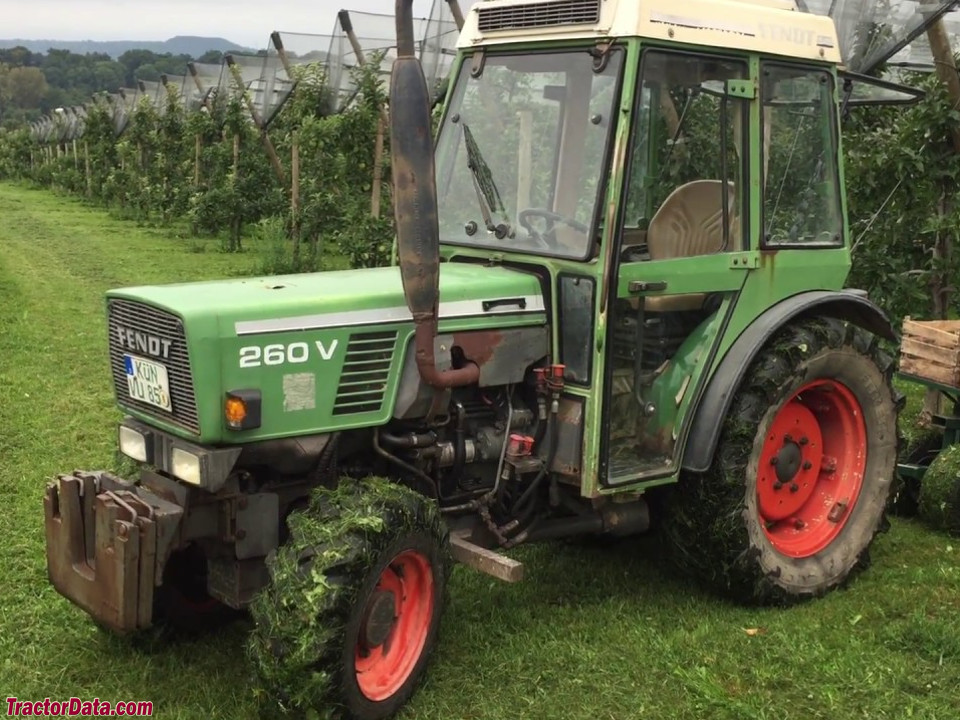

Fendt Farmer 260V
Fendt Farmer 260V — Farmer 200 Series · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
4233 to 4652 pounds
Hover a source tag to verify
Overview
ManufacturerFendtReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Power steeringReference
Mechanical drum brakesReference
Two-post mid-mount folding ROPS. Cab available with heat and air-conditioning.Reference
Engine
KHD 3.1L 3-cyl dieselReference
Fuel tank60.0 LReference
Engine44.0 kWReference
KHD F3L913Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement3.1 LReference
Bore/Stroke102 x 125 mmReference
Power44.0 kWReference
Rated RPM2400Reference
Torque203.0 NmReference
Torque RPM1450Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speedReference
Gears20 forward and 6 reverseReference
Gears20 forward and reverseReference
PTO & Hydraulics
Pressure180.0 barReference
Total flow48.8 lpmReference
Rear PTOindependentReference
Rear PTO Type540/750Reference
Rear PTO Type540/750/1000Reference
Dimensions
2WD Wheelbase197 cmReference
4WD Wheelbase196 cmReference
Weight4233 to 4652 poundsReference
Front tire6.00-16Reference
2WD Rear tire11.2-24Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 11.2-24Reference
4WD Standard tires (ag)Front: 7.5L15. Rear: 11.2-24Reference
Wide Standard tires (ag)Front: 11LR16. Rear: 13.6R24Reference
Length344 cmReference
Width104 cmReference
Wide Width124 cmReference
2WD Ground clearance29 cmReference
4WD Ground clearance22 cmReference
Wide Ground clearance25 cmReference
2WD Front tread76 cmReference
4WD Front tread79 cmReference
Wide Front tread95 cmReference
Rear tread75 cmReference
Wide Rear tread89 cmReference
2WD1920 kgReference
4WD2070 kgReference
4WD Wide2110 kgReference
Max Drawbar1000 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Charging volts14Reference
Battery volts12Reference
Battery AH88Reference
Capacities
Max capacity3499 kgReference
Fendt Farmer 260V Height
ROPS206 cmReference
Wide ROPS210 cmReference
Cab215 cmReference
Wide Cab219 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
