Tractor · 1987Unverified

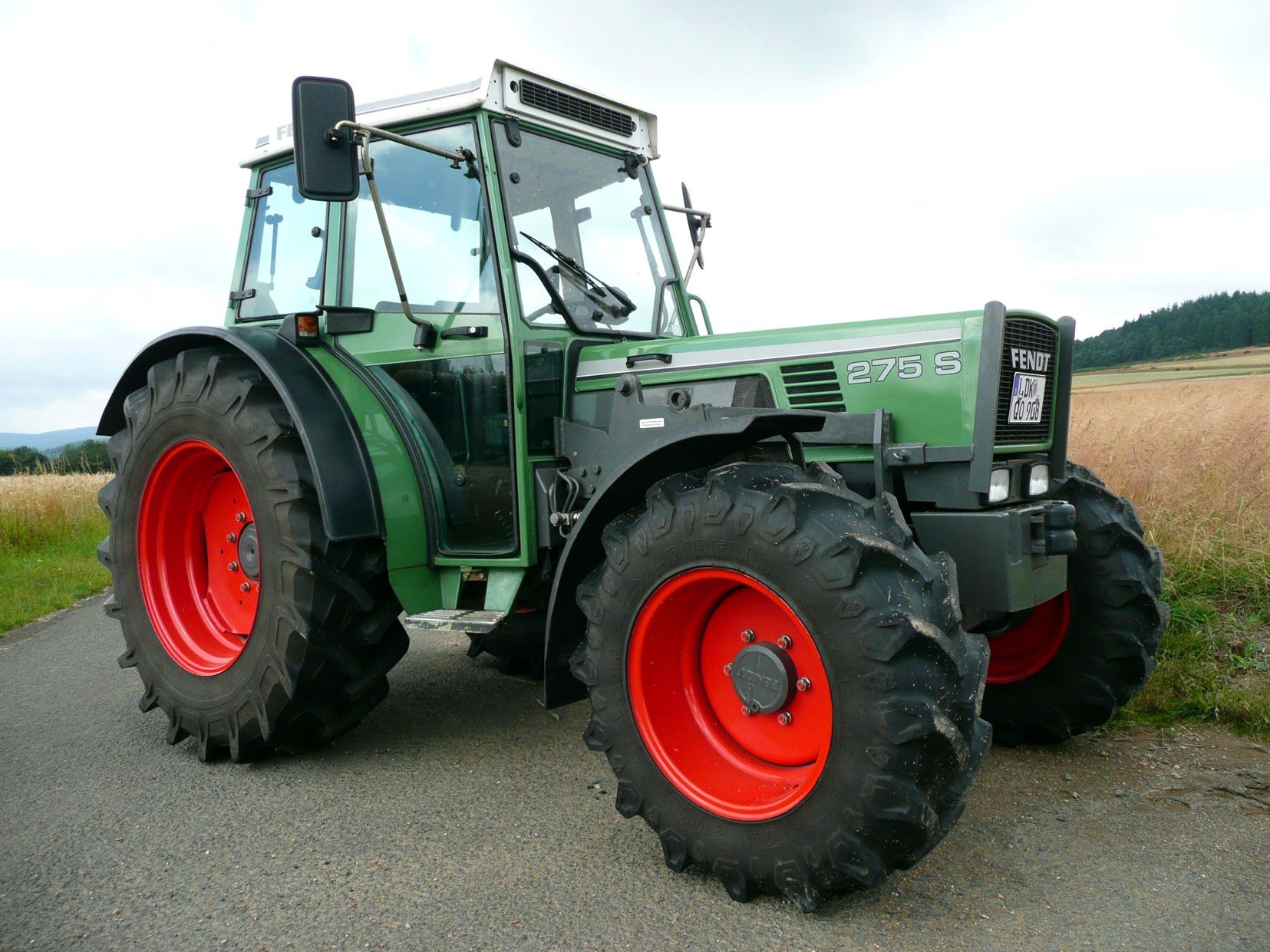

Fendt Farmer 275S
Fendt Farmer 275S — Farmer 200 Series · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
6019 to 6548 pounds
Hover a source tag to verify
Overview
ManufacturerFendtReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic drum brakesReference
Engine
KHD 4.1L 4-cyl dieselReference
Fuel tank60.2 LReference
Engine55.9 kWReference
KHD F4L913Reference
dieselReference
4-cylinderReference
air-cooledReference
Displacement4.1 LReference
Bore/Stroke102 x 125 mmReference
Power55.9 kWReference
Fuel systemdirect injectionReference
Rated RPM2300Reference
Torque269.0 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
21-speedReference
Gears21 forward and 6 reverseReference
Gearshift with three gears (1-3), plus reverse (R), and three overdrive gears (25, 30, and 40 kph). Triple range gear split provides three speeds for each of the non-overdrive gears. Low and high ranges. Transmission also available with addition super-creeper range providing 30 gears forward and 9 reverse.Reference
PTO & Hydraulics
Pump flow39.0 lpmReference
Rear lift2790 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Dimensions
Wheelbase217 cmReference
Weight6019 to 6548 poundsReference
Front tire7.50-18Reference
Rear tire16.9R28Reference
Ag front7.50-18Reference
Ag front11.2R20 (4WD)Reference
Ag rear16.9R28Reference
Length364 cmReference
Height235 cmReference
Weight2730 kgReference
Weight2970 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
