Tractor · 1987Unverified

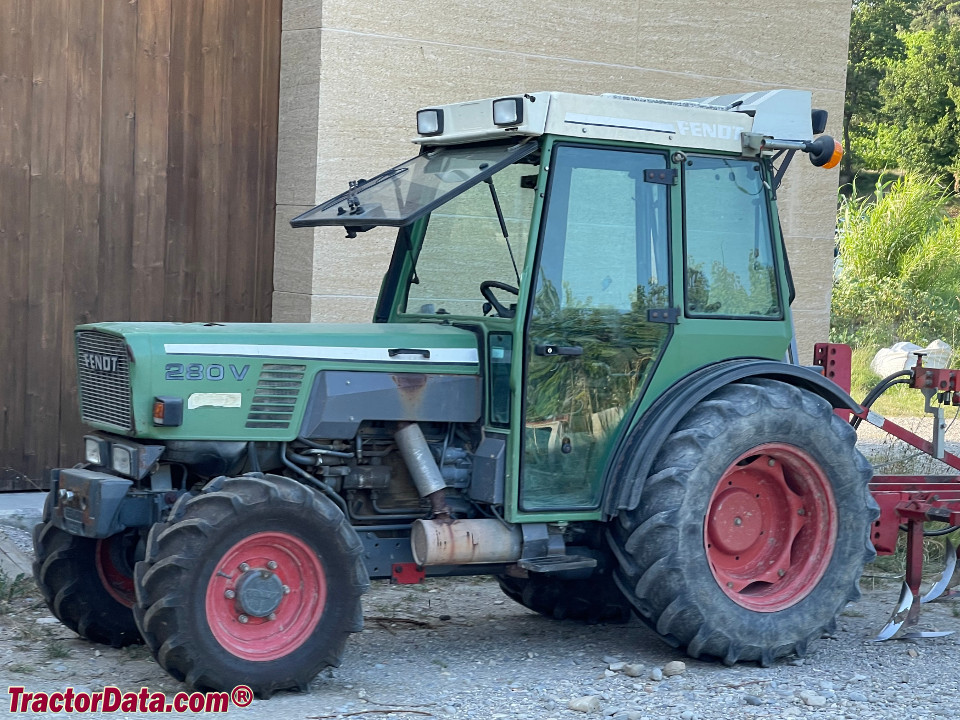

Fendt Farmer 280V

Name: Fendt Farmer 280V
Brand: Fendt

Fendt Farmer 280V — Farmer 200 Series · 79 hp. Reference specifications; pending source verification.

The Fendt Farmer 280V is a mid-range tractor model rated at approximately 79 horsepower. It was produced from 1987 to 2002. The tractor is equipped with a 4-cylinder diesel air-cooled engine and four-wheel drive, paired with a 20-speed gearbox. Its operating weight ranges from 5004 to 5159 pounds, and it is suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

79 hp

Weight

5004 to 5159 pounds

Catalogue coverage

Variants represented

Richest spec table

63 rows

Recorded power

79 hp

Transmissions

20-speed

Production years

1987-2002

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendtReference

Orchard/Vineyard tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical drum brakesReference

Two-post mid-mount folding ROPS. Cab available with heat and air-conditioning.Reference

Engine

KHD 4.1L 4-cyl dieselReference

Fuel tank60.0 LReference

Engine59.0 kWReference

KHD F4L913Reference

dieselReference

4-cylinderReference

air-cooledReference

Displacement4.1 LReference

Bore/Stroke102 x 125 mmReference

Power59.0 kWReference

Rated RPM2400Reference

Torque272.0 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

20-speedReference

Gears20 forward and 6 reverseReference

Gears20 forward and reverseReference

PTO & Hydraulics

Pressure180.0 barReference

Total flow46.9 lpmReference

Rear PTOindependentReference

Rear PTO Type540/750Reference

Rear PTO Type540/750/1000Reference

Dimensions

Wheelbase209 cmReference

Tall Wheelbase212 cmReference

Weight5004 to 5159 poundsReference

Front tire10.0/75-15.3Reference

Rear tire9.5-28Reference

Standard tires (ag)Front: 10.0/75-15.3. Rear: 9.5-28Reference

Wide Standard tires (ag)Front: 11LR16. Rear: 13.6R24Reference

Tall Standard tires (ag)Front: 275/80R18. Rear: 13.6-28Reference

Length344 cmReference

Width117 cmReference

Wide Width124 cmReference

Tall Width130 cmReference

Ground clearance22 cmReference

Wide Ground clearance25 cmReference

Tall Ground clearance28 cmReference

Front tread79 cmReference

Wide Front tread95 cmReference

Tall Front tread96 cmReference

2269 kgReference

Wide2300 kgReference

Tall2340 kgReference

Max Drawbar1000 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Charging volts14Reference

Battery volts12Reference

Battery AH88Reference

Capacities

Max capacity3499 kgReference

Fendt Farmer 280V Height

ROPS221 cmReference

Wide ROPS224 cmReference

Tall ROPS226 cmReference

Cab217 cmReference

Wide/Tall Cab219 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
