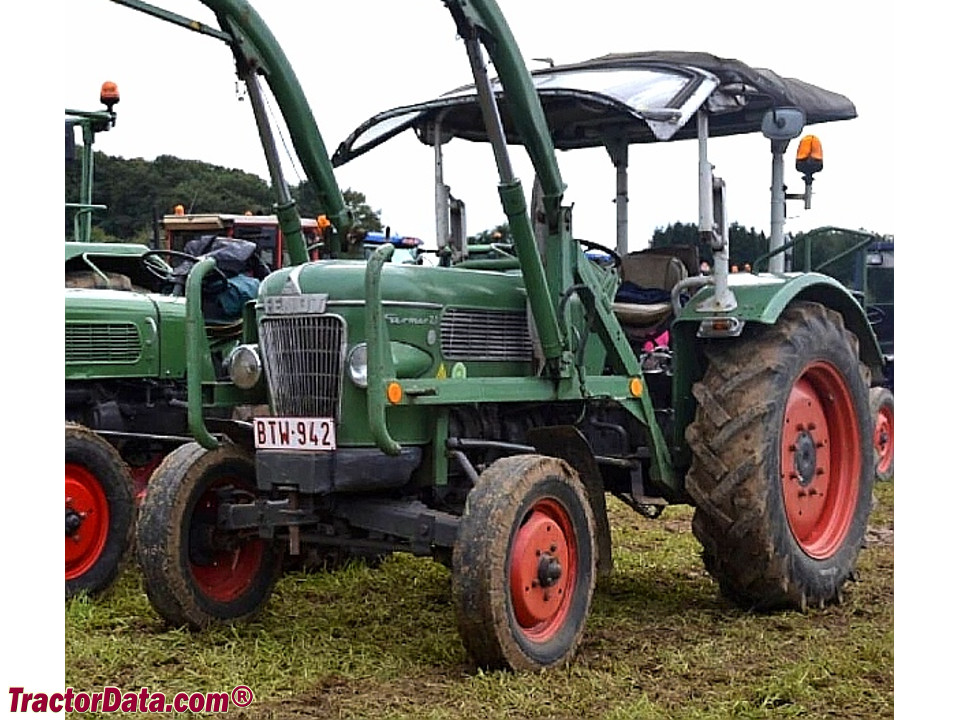

The Fendt Farmer 2D is a tractor with a rated power output of 30 hp, positioning it at the lower end of its class in terms of power. It was manufactured from 1961 to 1967. The tractor features a 3-cylinder diesel liquid-cooled engine, paired with two-wheel drive and an 8-speed gearbox. Its operating weight is 1820 kg, suitable for operations on up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1820 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
30 hp
Recorded weight
1820 kg
Transmissions
8-speed
Production years
1961-1967
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerFendtReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
MWM 2.0L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine22.4 kWReference
MWM KD 10.5Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.0 LReference
Bore/Stroke90 x 105 mmReference
Power22.4 kWReference
Rated RPM2100Reference
Starter volts12Reference
Transmission
8-speedReference
TransmissionZF A-210Reference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Rear lift1500 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase197 cmReference
Weight1820 kgReference
Front tire5.50-16Reference
Rear tire9.5-32Reference
Ag front5.50-16Reference
Ag rear9.5-32Reference
Length326 cmReference
Height215 cmReference
Electrical
Charging systemgeneratorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
