Tractor · 1967Unverified

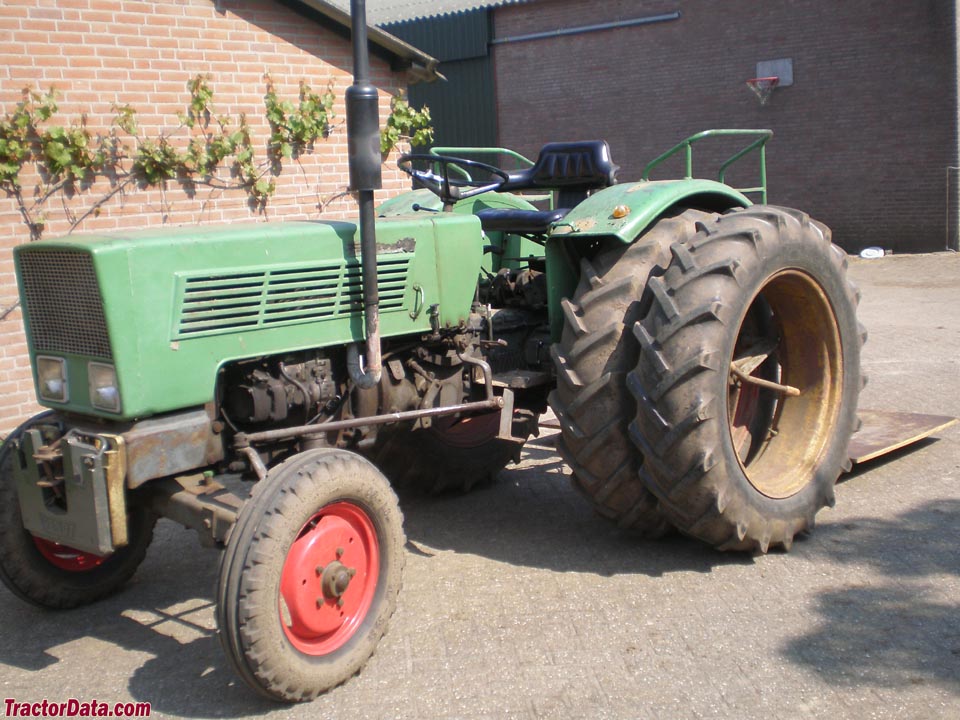

Fendt Farmer 2DE
Fendt Farmer 2DE — Farmer 2 Series · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
1820 kg
Hover a source tag to verify
Overview
ManufacturerFendtReference
Two-wheel driveReference
SteeringmanualReference
Expanding shoe brakesReference
Open operator station.Reference
Engine
MWM 2.2L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine (gross)29.8 kWReference
Engine (net)26.1 kWReference
MWM D208-3Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke95 x 105 mmReference
Power (net)26.1 kWReference
Power (gross)29.8 kWReference
Rated RPM2100Reference
Starter volts12Reference
Transmission
8-speedReference
TransmissionZF A-210Reference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Rear lift1500 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase197 cmReference
Weight1820 kgReference
Front tire5.50-16Reference
Rear tire9.5-32Reference
Ag front5.50-16Reference
Ag rear9.5-32Reference
Length326 cmReference
Height215 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
