Tractor · 1982Unverified

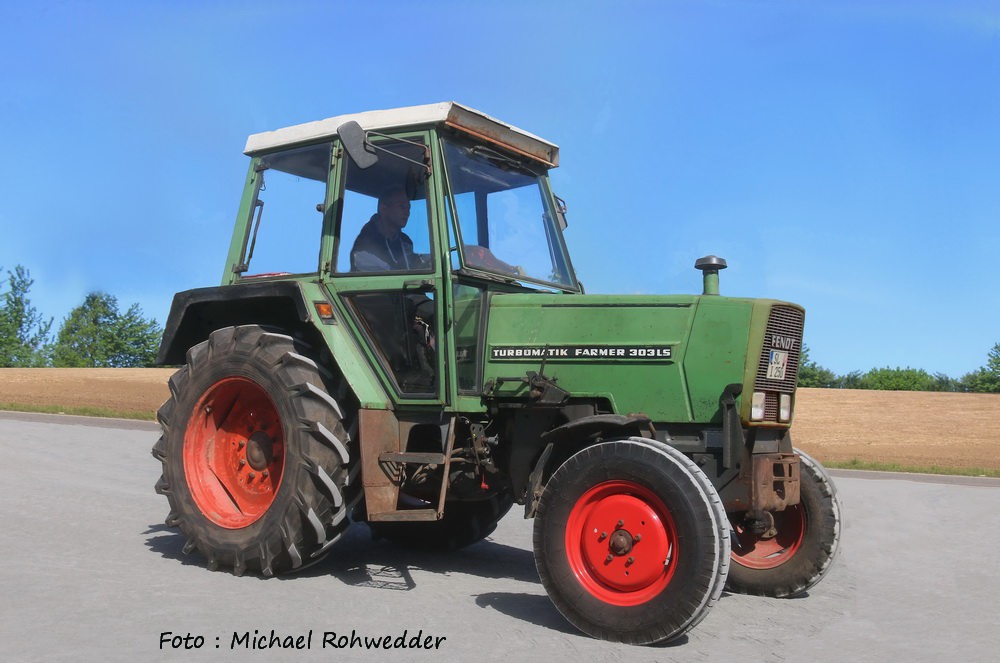

Fendt Farmer 303LS
Fendt Farmer 303LS — Farmer 300 Series · 52 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
7154 to 7441 pounds
Hover a source tag to verify
Overview
ManufacturerFendtReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic drum brakesReference
Cab standard with heat. Air-conditioning optional.Reference
Engine
MWM 3.1L 3-cyl dieselReference
Fuel tank79.9 LReference
Engine38.8 kWReference
MWMReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke105 x 120 mmReference
Power38.8 kWReference
Rated RPM2350Reference
Torque190.0 NmReference
Torque RPM1500Reference
Starter volts12Reference
Transmission
15-speed synchromeshReference
TypesynchromeshReference
Gears15 forward and 4 reverseReference
Clutch310mm hydraulic discReference
Three gears, plus reverse, in two ranges with two-speed torque converter. Additional three overdrive gears for road speed.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow37.1 lpmReference
Steering flow35.0 lpmReference
Rear lift2140 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/750Reference
Rear PTO Type540/750/1000Reference
Dimensions
2WD Wheelbase228 cmReference
4WD Wheelbase219 cmReference
Weight7154 to 7441 poundsReference
Front tire10.00-16Reference
2WD Rear tire13.6R36Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 13.6R36Reference
4WD Standard tires (ag)Front: 12.5-20. Rear: 13.6R36Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 13.6R36Reference
4WD Optional tires (ag)Front: 12.5-20. Rear: 16.9-30Reference
4WD Optional tires (ag)Front: 10.5-20. Rear: 14.9-30Reference
4WD Optional tires (ag)Front: 9.5-24. Rear: 13.6-36Reference
4WD Optional tires (ag)Front: 9.5-24. Rear: 12.4-36Reference
Length379 cmReference
Width196 cmReference
Height (cab)257 cmReference
2WD Ground clearance44 cmReference
4WD Ground clearance34 cmReference
2WD Shipping3245 kgReference
4WD Shipping3375 kgReference
Fendt Farmer 303LS attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps33Reference
Battery volts12Reference
Battery AH88Reference
Capacities
Max capacity4700 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
