Tractor · 1982Unverified

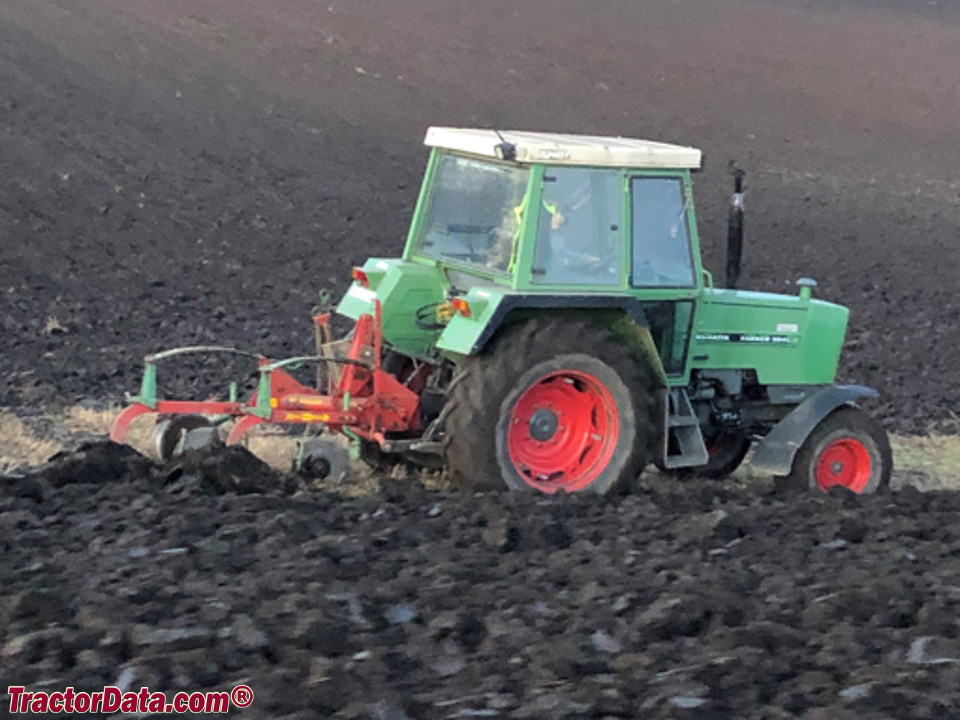

Fendt Farmer 304LS

Name: Fendt Farmer 304LS
Brand: Fendt

Fendt Farmer 304LS — Farmer 300 Series · 58 hp. Reference specifications; pending source verification.

The Fendt Farmer 304LS is a tractor model with a rated power output of 58 hp, positioning it at the lighter end of its class. This model was manufactured between 1982 and 1998, and it features a 3-cylinder diesel liquid-cooled engine paired with four-wheel drive and a 15-speed gearbox. The Fendt Farmer 304LS has an operating weight of between 7154 and 7441 pounds, and is suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

58 hp

Weight

7154 to 7441 pounds

Catalogue coverage

Variants represented

Richest spec table

59 rows

Recorded power

58 hp

Transmissions

15-speed synchromesh

Production years

1982-1998

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendtReference

Utility tractorReference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic drum brakesReference

Cab standard with heat. Air-conditioning optional.Reference

Engine

MWM 3.1L 3-cyl dieselReference

Fuel tank79.9 LReference

Engine43.3 kWReference

MWMReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement3.1 LReference

Bore/Stroke105 x 120 mmReference

Power43.3 kWReference

Rated RPM2350Reference

Torque205.0 NmReference

Torque RPM1500Reference

Starter volts12Reference

Transmission

15-speed synchromeshReference

TypesynchromeshReference

Gears15 forward and 4 reverseReference

Clutch310mm hydraulic discReference

Three gears, plus reverse, in two ranges with two-speed torque converter. Additional three overdrive gears for road speed.Reference

PTO & Hydraulics

Typeopen centerReference

Pump flow40.1 lpmReference

Steering flow35.0 lpmReference

Rear lift2140 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540/750Reference

Rear PTO Type540/750/1000Reference

Dimensions

2WD Wheelbase228 cmReference

4WD Wheelbase219 cmReference

Weight7154 to 7441 poundsReference

Front tire10.00-16Reference

2WD Rear tire13.6R36Reference

2WD Standard tires (ag)Front: 10.00-16. Rear: 13.6R36Reference

4WD Standard tires (ag)Front: 12.5-20. Rear: 13.6R36Reference

2WD Optional tires (ag)Front: 7.50-16. Rear: 13.6R36Reference

4WD Optional tires (ag)Front: 12.5-20. Rear: 16.9-30Reference

4WD Optional tires (ag)Front: 10.5-20. Rear: 14.9-30Reference

4WD Optional tires (ag)Front: 9.5-24. Rear: 13.6-36Reference

4WD Optional tires (ag)Front: 9.5-24. Rear: 12.4-36Reference

Length379 cmReference

Width196 cmReference

Height (cab)257 cmReference

2WD Ground clearance44 cmReference

4WD Ground clearance34 cmReference

2WD Shipping3245 kgReference

4WD Shipping3375 kgReference

Fendt Farmer 304LS attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps33Reference

Battery volts12Reference

Battery AH88Reference

Capacities

Max capacity4700 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
