Search/Tractor/Fendt/Farmer 305LS

Tractor · 1980Unverified

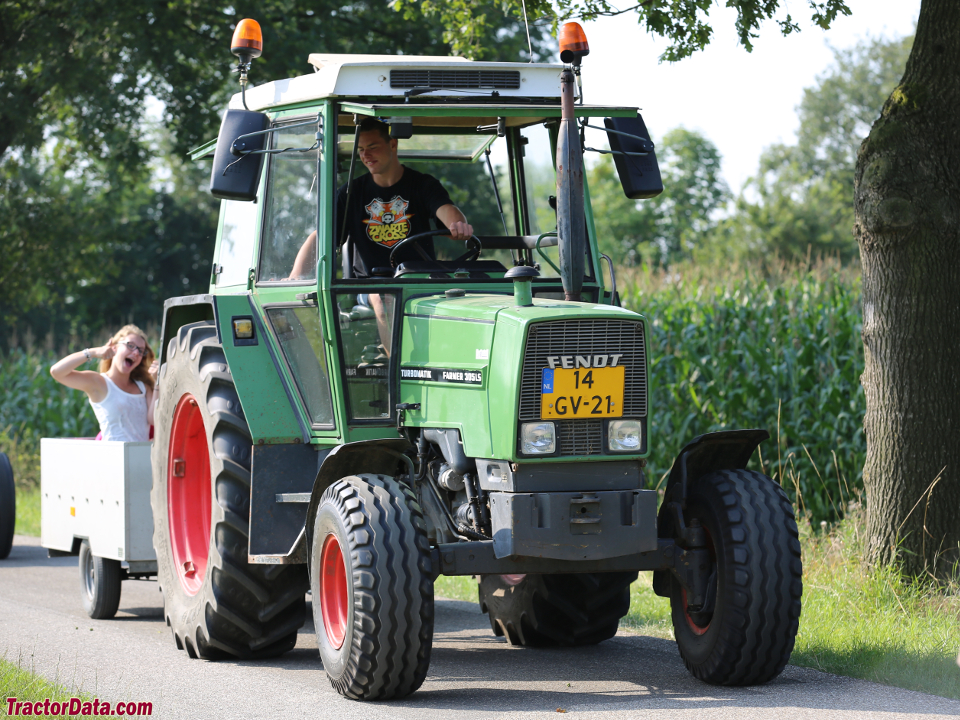

Fendt Farmer 305LS

Name: Fendt Farmer 305LS
Brand: Fendt

Fendt Farmer 305LS — Farmer 300 Series · 62 hp. Reference specifications; pending source verification.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

62 hp

Weight

7430 to 7716 pounds

Hover a source tag to verify

Overview

ManufacturerFendtReference

Row-Crop tractorReference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with heat. Air-conditioning optional.Reference

Engine

MWM 3.8L 4-cyl dieselReference

MWM 4.2L 4-cyl dieselReference

Fuel tank107.1 LReference

Engine46.2 kWReference

MWMReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.8 LReference

Bore/Stroke100 x 120 mmReference

Power46.2 kWReference

Rated RPM2175Reference

Torque253.0 NmReference

Torque RPM1500Reference

Starter volts12Reference

MWM D226-4Reference

Displacement4.2 LReference

Transmission

15-speed synchromeshReference

21-speedReference

TypesynchromeshReference

Gears15 forward and 4 reverseReference

Clutch310mm hydraulic discReference

Three gears (1-3), plus reverse (R), in two ranges (low/high) with two-speed torque converter (L/S). Additional three overdrive gears for road speed.Reference

Gears21 forward and 6 reverseReference

Three gears (1-3), plus reverse (R), in two ranges (low/high) with three-speed torque converter (L/M/S). Additional three overdrive gears for road speed.Reference

PTO & Hydraulics

Typeopen centerReference

Pump flow37.1 lpmReference

Steering flow32.2 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift2770 kgReference

Front HitchIIReference

Front lift2510 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540/750Reference

Rear PTO Type540/750/1000Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

2WD Wheelbase231 cmReference

4WD Wheelbase197 cmReference

Weight7430 to 7716 poundsReference

Front tire7.50-20Reference

2WD Rear tire16.9R34Reference

2WD Standard tires (ag)Front: 7.50-20. Rear: 16.9R34Reference

4WD Standard tires (ag)Front: 12.4R34. Rear: 16.9R34Reference

4WD Optional tires (ag)Front: 13.6-24. Rear: 16.9-34Reference

4WD Optional tires (ag)Front: 14.5-20. Rear: 16.9R30Reference

4WD Optional tires (ag)Front: 12.4R24. Rear: 13.6R38Reference

4WD Optional tires (ag)Front: 11.2-24. Rear: 18.4R30Reference

2WD Optional tires (ag)Front: 10.00-16. Rear: 16.9R34Reference

2WD Length390 cmReference

4WD Length391 cmReference

Width197 cmReference

Height (cab)259 cmReference

2WD Ground clearance47 cmReference

4WD Ground clearance42 cmReference

2WD Shipping3370 kgReference

4WD Shipping3499 kgReference
