Tractor · 1980Unverified

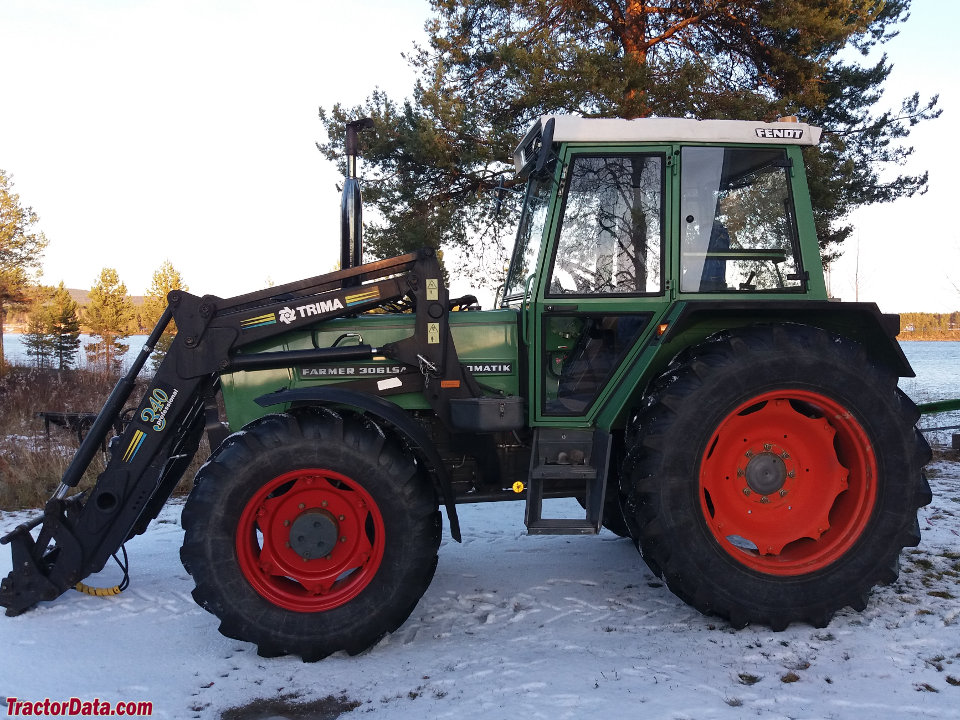

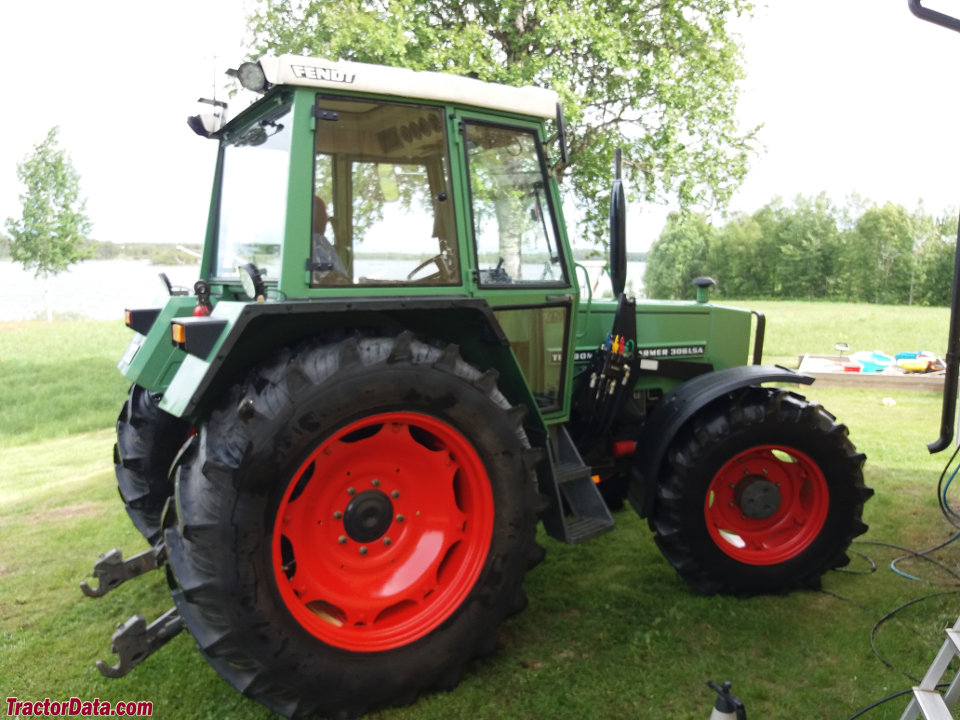

Fendt Farmer 306LS

Name: Fendt Farmer 306LS
Brand: Fendt

Fendt Farmer 306LS — Farmer 300 Series · 70 hp. Reference specifications; pending source verification.

The Fendt Farmer 306LS is a tractor with a rated power of 70 hp, falling within the mid-range for its class. Manufactured from 1980 to 1993, this model features a 4-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a 15-speed gearbox. The operating weight of the Fendt Farmer 306LS is listed as 7793 to 8168 pounds. It is designed for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

70 hp

Weight

7793 to 8168 pounds

Catalogue coverage

Variants represented

Richest spec table

72 rows

Recorded power

70 hp

Transmissions

15-speed synchromesh

Production years

1980-1993

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendtReference

Row-Crop tractorReference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with heat. Air-conditioning optional.Reference

Engine

MWM 4.2L 4-cyl dieselReference

Fuel tank107.1 LReference

Engine52.2 kWReference

MWMReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke105 x 120 mmReference

Power52.2 kWReference

Rated RPM2200Reference

Torque268.1 NmReference

Torque RPM1500Reference

Starter volts12Reference

Transmission

15-speed synchromeshReference

21-speedReference

TypesynchromeshReference

Gears15 forward and 4 reverseReference

Clutch310mm hydraulic discReference

Three gears (1-3), plus reverse (R), in two ranges (low/high) with two-speed torque converter (L/S). Additional three overdrive gears for road speed.Reference

Gears21 forward and 6 reverseReference

Three gears (1-3), plus reverse (R), in two ranges (low/high) with three-speed torque converter (L/M/S). Additional three overdrive gears for road speed.Reference

PTO & Hydraulics

Typeopen centerReference

Pump flow37.9 lpmReference

Steering flow32.9 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift2770 kgReference

Front HitchIIReference

Front lift2510 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540/750Reference

Rear PTO Type540/750/1000Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

2WD Wheelbase231 cmReference

4WD Wheelbase197 cmReference

Weight7793 to 8168 poundsReference

Front tire7.50-20Reference

2WD Rear tire16.9R34Reference

2WD Standard tires (ag)Front: 7.50-20. Rear: 16.9R34Reference

4WD Standard tires (ag)Front: 12.4R34. Rear: 16.9R34Reference

4WD Optional tires (ag)Front: 13.6-24. Rear: 16.9-34Reference

4WD Optional tires (ag)Front: 14.5-20. Rear: 16.9R30Reference

4WD Optional tires (ag)Front: 12.4R24. Rear: 13.6R38Reference

4WD Optional tires (ag)Front: 11.2-24. Rear: 18.4R30Reference

2WD Optional tires (ag)Front: 10.00-16. Rear: 16.9R34Reference

2WD Length390 cmReference

4WD Length391 cmReference

Width197 cmReference

Height (cab)259 cmReference

2WD Ground clearance47 cmReference

4WD Ground clearance42 cmReference

2WD Shipping3534 kgReference

4WD Shipping3705 kgReference

Fendt Farmer 306LS attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps33Reference

Charging amps55Reference

Battery volts12Reference

Battery AH110Reference

Attachment overview

Fendt 3 loaderReference

Fendt 3S loaderReference

Capacities

Max capacity5000 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
