Tractor · 1993Unverified

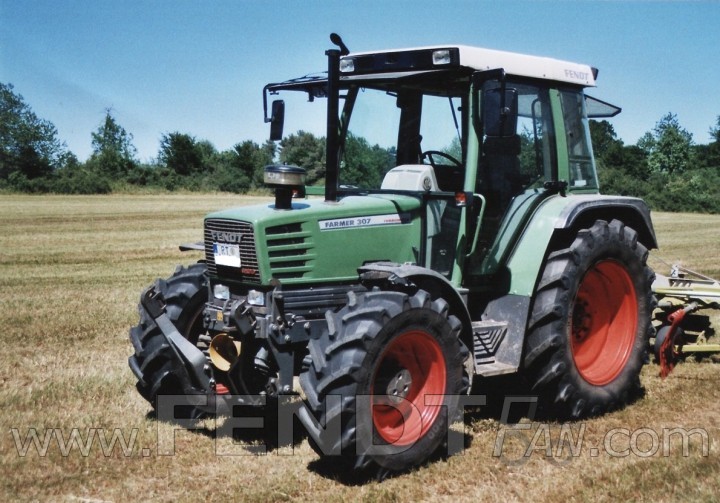

Fendt Farmer 307

Name: Fendt Farmer 307
Brand: Fendt

Fendt Farmer 307 — Farmer 300 Series · 75 hp. Reference specifications; pending source verification.

The Fendt Farmer 307 is a tractor with an engine rating of approximately 75 horsepower, categorised as a mid-range model in its class. It was manufactured from 1993 to 1998. The tractor features a 3-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a powershift transmission. Its operating weight is specified at 3850 kg, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

75 hp

Weight

3850 kg

Catalogue coverage

Variants represented

Richest spec table

56 rows

Recorded power

75 hp

Recorded weight

3850 kg

Transmissions

21-speed three-speed power shift

Production years

1993-1998

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendtReference

Row-Crop tractorReference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic disc brakesReference

Cab standard with air-conditioning.Reference

Engine

MWM 3.1L 3-cyl dieselReference

Fuel tank79.9 LReference

Engine55.9 kWReference

MWM TD226.B3Reference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement3.1 LReference

Bore/Stroke105 x 120 mmReference

Power55.9 kWReference

Rated RPM2250Reference

Torque306.0 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

21-speed three-speed power shiftReference

Typethree-speed power shiftReference

Gears21 forward and reverseReference

Three gears, in two ranges, with a three-speed power shift. Additional three overdrive gear ranges. The 40 kph overdrive was not available in all markets.Reference

PTO & Hydraulics

Pump flow71.2 lpmReference

Rear lift4018 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/750/1000Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase215 cmReference

Weight3850 kgReference

Front tire380/70R24Reference

Rear tire480/70R34Reference

Standard tires (ag)Front: 380/70R24. Rear: 480/70R34Reference

Optional tires (ag)Front: 12.4R24. Rear: 12.4-38Reference

Optional tires (ag)Front: 13.6-24. Rear: 13.6R38Reference

Optional tires (ag)Front: 440/65R24. Rear: 540/65R34Reference

Optional tires (ag)Front: 375/75R20. Rear: 480/70R38Reference

Optional tires (ag)Front: 11.2R28. Rear: 11.2R44Reference

Optional tires (ag)Front: 9.5R28. Rear: 9.5R44Reference

Length389 cmReference

Width211 cmReference

Height (cab)266 cmReference

Max weight6500 kgReference

Front tread170 cmReference

Rear tread165 cmReference

Fendt Farmer 307 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps95Reference

Battery volts12Reference

Battery AH90Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
