Tractor · 2003Unverified

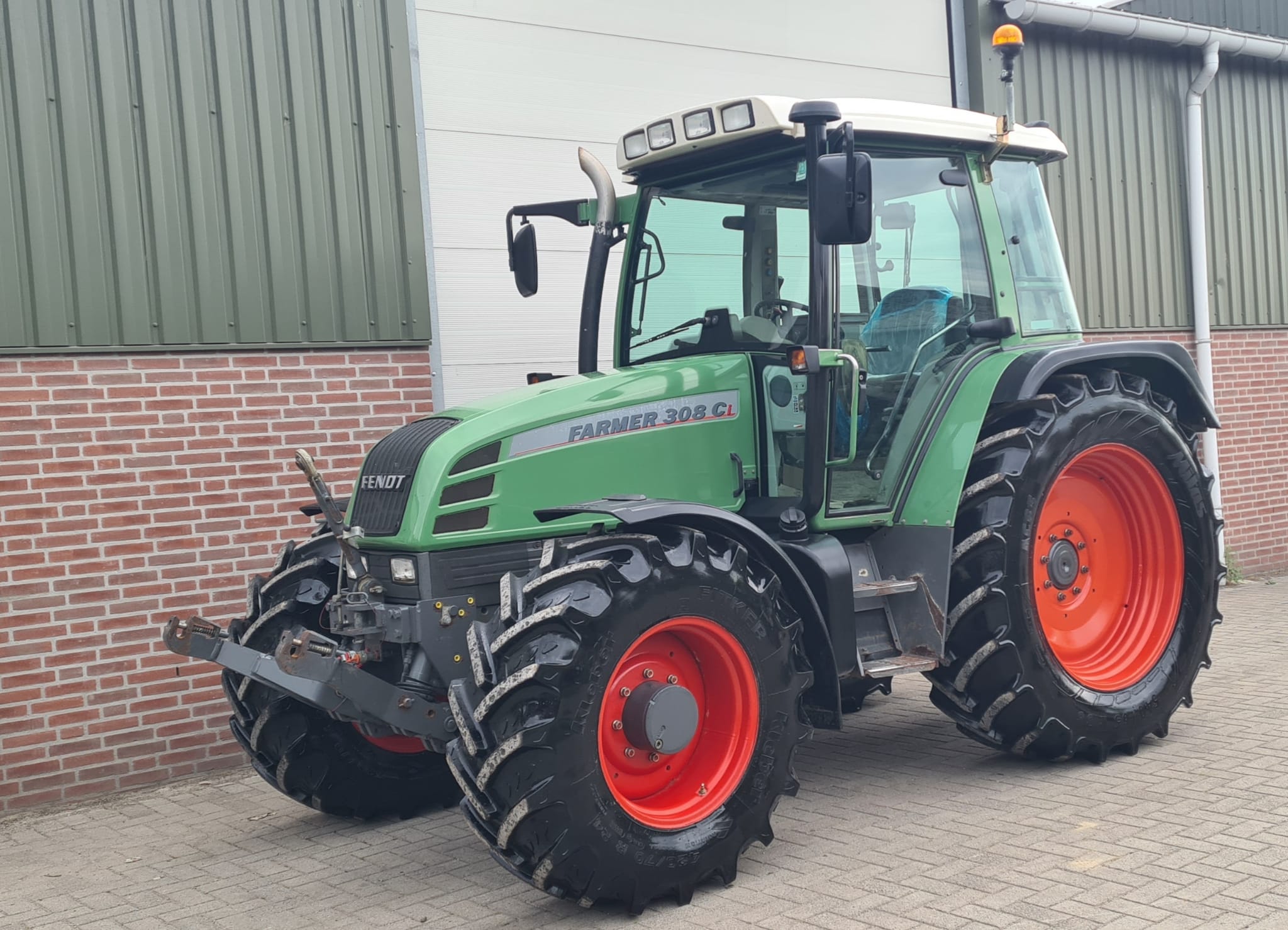

Fendt Farmer 308Ci
Fendt Farmer 308Ci — Farmer 300 Series · 89 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
89 hp
Weight
8135 to 9237 pounds
Hover a source tag to verify
Overview
ManufacturerFendt (a part of AGCO)Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic disc brakesReference
Cab standard with heat. Air-conditioning optional.Reference
Engine
Deutz 4.0L 4-cyl dieselReference
Fuel tank110.1 LReference
Engine (net)66.0 kWReference
DeutzReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke101 x 126 mmReference
Rated Power (net)66.0 kWReference
Maximum Power (net)72.0 kWReference
Rated RPM2300Reference
Torque428.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
21-speed synchronizedReference
21-speed shuttleReference
TypesynchronizedReference
Gears21 forward and 6 reverseReference
Three gears (1-3) plus reverse (R) in two ranges (Low/High) with a three-way splitter (L/M/S). Three additional overdrive gears.Reference
TypeshuttleReference
Gears21 forward and reverseReference
Three gears (1-3) in two ranges (Low/High) with a three-way splitter (L/M/S). Three additional overdrive gears and mechanical shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure200.0 barReference
Valves2 to 4Reference
Pump flow70.0 lpmReference
Rear TypeIII/IIReference
Rear lift4980 kgReference
Front lift2945 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Front PTOindependentReference
Front PTO Type540Reference
Front PTO Type1000Reference
Dimensions
2WD Wheelbase238 cmReference
4WD Wheelbase228 cmReference
Weight8135 to 9237 poundsReference
Front tire11.00-16Reference
2WD Rear tire480/70R34Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 480/70R34Reference
4WD Standard tires (ag)Front: 380/70R24. Rear: 480/70R34Reference
Length400 cmReference
Width214 cmReference
Height (cab)270 cmReference
Ground clearance48 cmReference
2WD Shipping3690 kgReference
4WD Shipping4030 kgReference
2WD Operating3850 kgReference
4WD Operating4189 kgReference
Max Drawbar1500 kgReference
Fendt Farmer 308Ci attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Charging volts14Reference
Battery volts12Reference
Battery AH90Reference
Attachment overview
Fendt 3/60 loaderReference
Fendt 3S/60 loaderReference
Capacities
2WD Max capacity6000 kgReference
4WD Max capacity6999 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
