Tractor · 1980Unverified

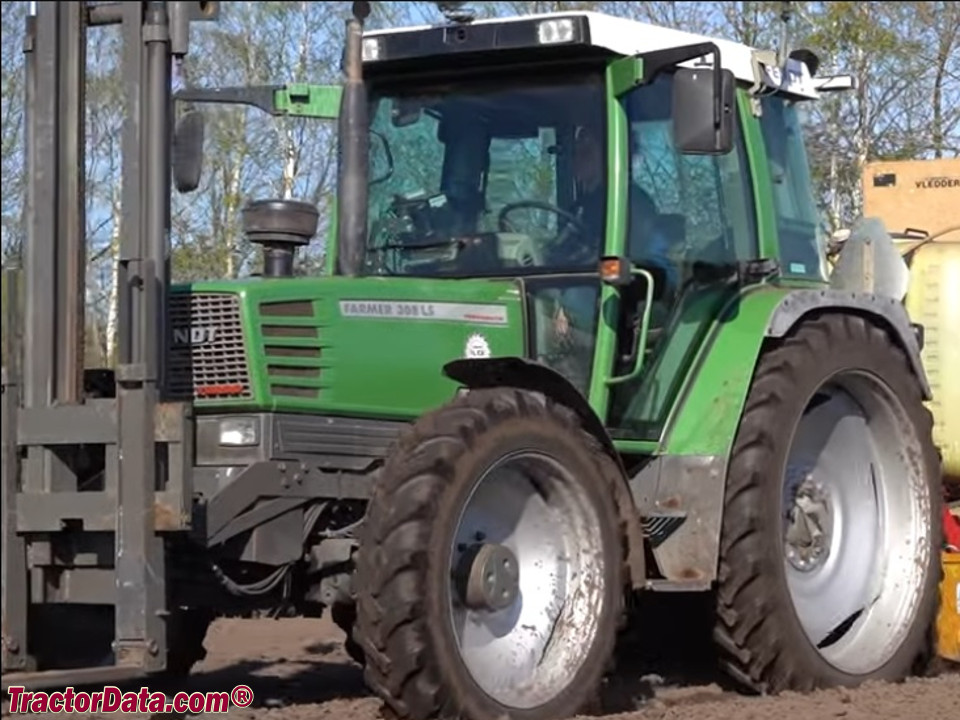

Fendt Farmer 308LS
Fendt Farmer 308LS — Farmer 300 Series · 78 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
78 hp
Weight
8080 to 8532 pounds
Hover a source tag to verify
Overview
ManufacturerFendtReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with heat. Air-conditioning optional.Reference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank107.1 LReference
Engine58.2 kWReference
MWMReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power58.2 kWReference
Rated RPM2350Reference
Torque272.0 NmReference
Torque RPM1500Reference
Starter volts12Reference
Transmission
15-speed synchromeshReference
21-speedReference
TypesynchromeshReference
Gears15 forward and 4 reverseReference
Clutch310mm hydraulic discReference
Three gears (1-3), plus reverse (R), in two ranges (low/high) with two-speed torque converter (L/S). Additional three overdrive gears for road speed.Reference
Gears21 forward and 6 reverseReference
Three gears (1-3), plus reverse (R), in two ranges (low/high) with three-speed torque converter (L/M/S). Additional three overdrive gears for road speed.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow40.1 lpmReference
Steering flow35.2 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift3700 kgReference
Front HitchIIReference
Front lift2510 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/750Reference
Rear PTO Type540/750/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
2WD Wheelbase231 cmReference
4WD Wheelbase211 cmReference
Weight8080 to 8532 poundsReference
Front tire7.50-20Reference
2WD Rear tire16.9R34Reference
2WD Standard tires (ag)Front: 7.50-20. Rear: 16.9R34Reference
4WD Standard tires (ag)Front: 13.6R24. Rear: 16.9R34Reference
4WD Optional tires (ag)Front: 12.4-28. Rear: 14.9-38Reference
4WD Optional tires (ag)Front: 14.9R24. Rear: 14.9-38Reference
4WD Optional tires (ag)Front: 13.6R24. Rear: 16.9R34Reference
4WD Optional tires (ag)Front: 13.6R24. Rear: 18.4R34Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 16.9R34Reference
2WD Optional tires (ag)Front: 11.00-16. Rear: 16.9R34Reference
2WD Length393 cmReference
4WD Length400 cmReference
Width197 cmReference
Height (cab)259 cmReference
2WD Ground clearance47 cmReference
4WD Ground clearance40 cmReference
2WD Shipping3665 kgReference
4WD Shipping3870 kgReference
Fendt Farmer 308LS attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps33Reference
Charging amps55Reference
Battery volts12Reference
Battery AH110Reference
Attachment overview
Fendt 3 loaderReference
Fendt 3S loaderReference
Capacities
Max capacity6000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
