Tractor · 1997Unverified

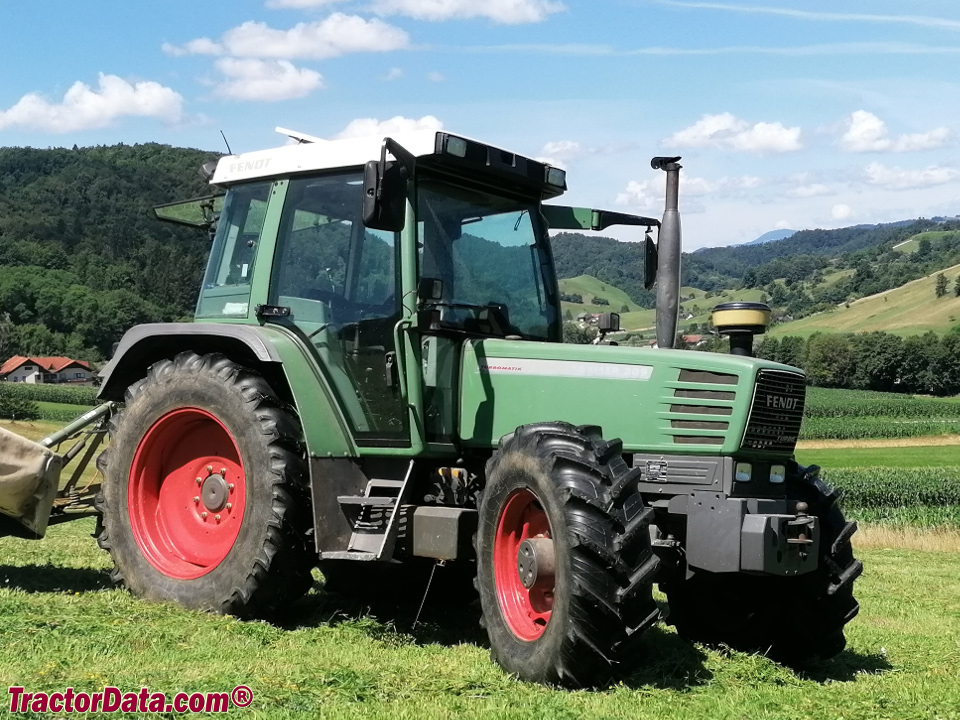

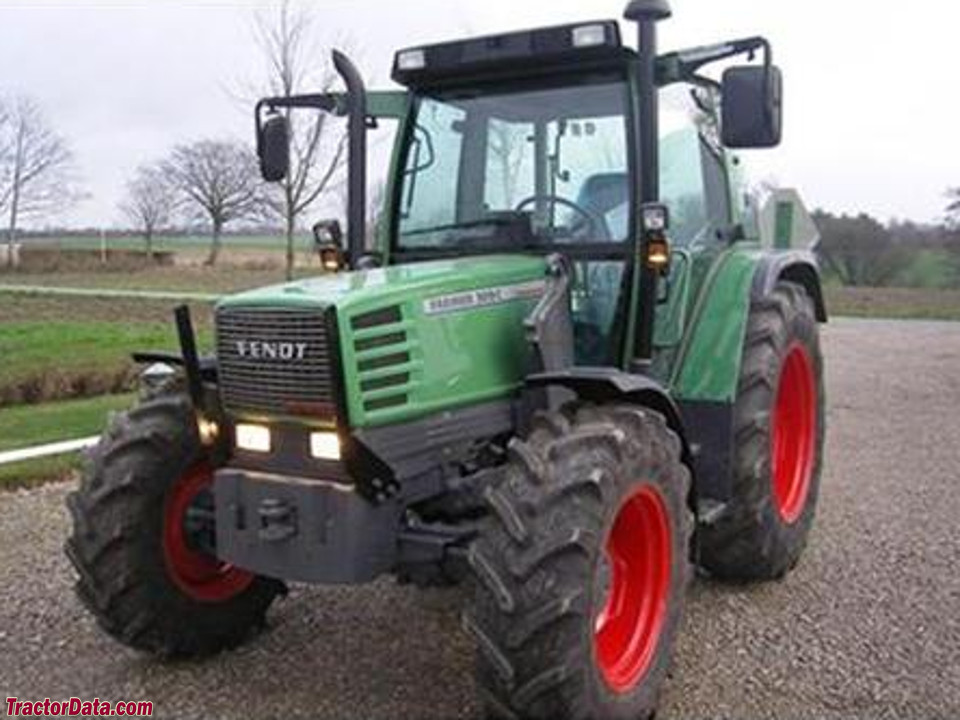

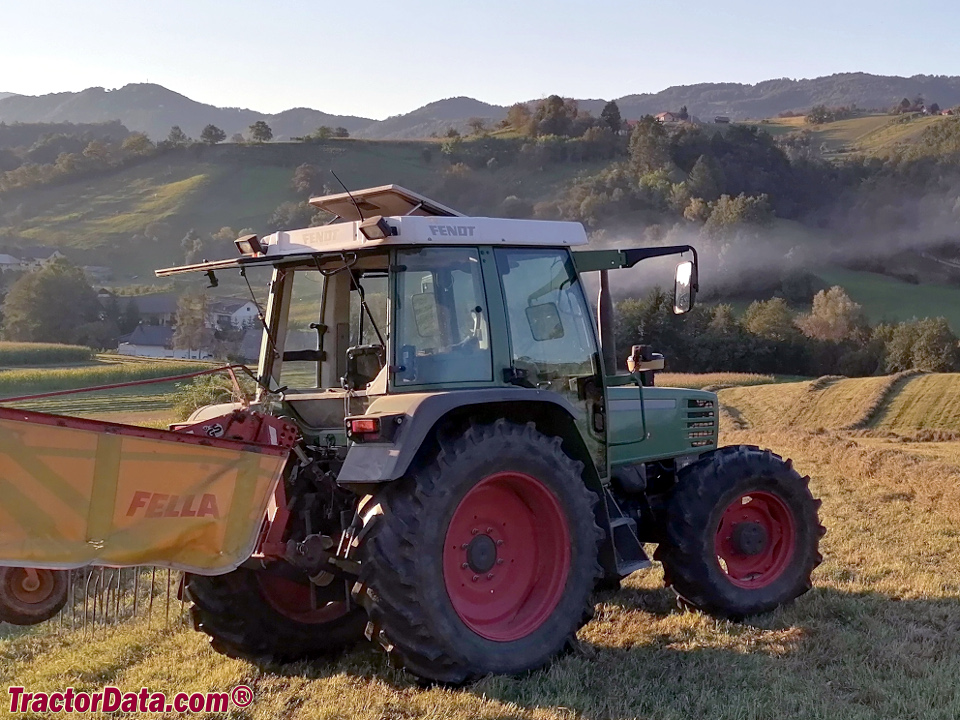

Fendt Farmer 309C
Fendt Farmer 309C · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
4220 kg
Hover a source tag to verify
Overview
ManufacturerFendtReference
Four-wheel driveReference
Engine
MWM 3.2L 4-cyl dieselReference
Fuel tank110.1 LReference
Engine70.8 kWReference
MWMReference
turbocharged dieselReference
4-cylinderReference
Displacement3.2 LReference
Bore/Stroke94 x 116 mmReference
Power70.8 kWReference
Rated RPM2350Reference
Torque378.1 NmReference
Torque RPM1500Reference
Transmission
21-speedReference
Gears21 forward and 6 reverseReference
PTO & Hydraulics
Pump flow74.9 lpmReference
Rear lift4100 kgReference
Rear PTO Type540, 750, 1000Reference
Dimensions
Wheelbase227 cmReference
Weight4220 kgReference
Front tire13.6R24Reference
Rear tire16.9R34Reference
Ag front13.6R24Reference
Ag rear16.9R34Reference
Length400 cmReference
Height267 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
