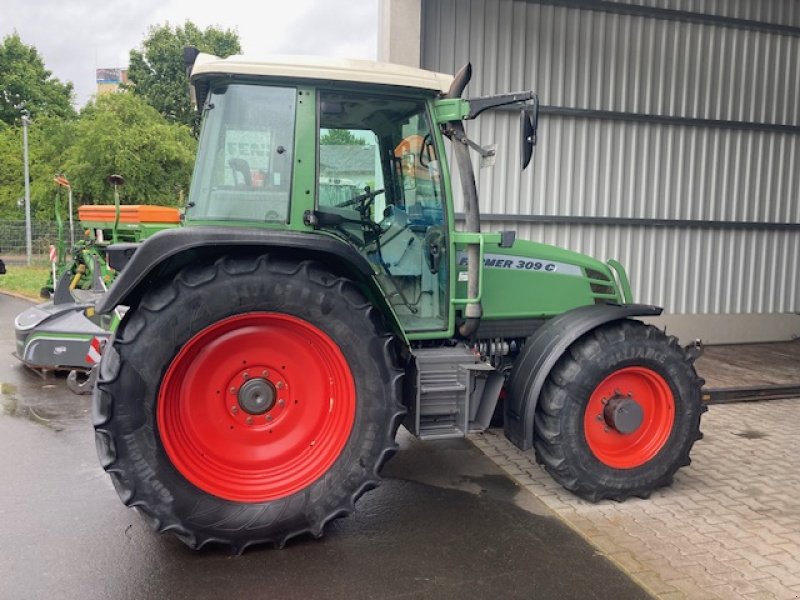

Fendt Farmer 309Ci
Fendt Farmer 309Ci — Farmer 300 Series · 103 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
103 hp
Weight
8951 to 9304 pounds
Hover a source tag to verify
Overview
ManufacturerFendt (a part of AGCO)Reference
Four-wheel driveReference
Power steeringReference
Hydraulic disc brakesReference
Cab standard with heat. Air-conditioning optional.Reference
Engine
Deutz 4.0L 4-cyl dieselReference
Fuel tank110.1 LReference
Engine (net)77.0 kWReference
DeutzReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke101 x 126 mmReference
Rated Power (net)77.0 kWReference
Maximum Power (net)82.0 kWReference
Rated RPM2300Reference
Torque474.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
21-speed synchronizedReference
21-speed shuttleReference
TypesynchronizedReference
Gears21 forward and 6 reverseReference
Three gears (1-3) plus reverse (R) in two ranges (Low/High) with a three-way splitter (L/M/S). Three additional overdrive gears.Reference
TypeshuttleReference
Gears21 forward and reverseReference
Three gears (1-3) in two ranges (Low/High) with a three-way splitter (L/M/S). Three additional overdrive gears and mechanical shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure200.0 barReference
Valves2 to 4Reference
Pump flow70.0 lpmReference
Rear TypeIII/IIReference
Rear lift4980 kgReference
Front lift2945 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Front PTOindependentReference
Front PTO Type540Reference
Front PTO Type1000Reference
Dimensions
2WD Wheelbase238 cmReference
4WD Wheelbase228 cmReference
Weight8951 to 9304 poundsReference
Front tire440/65R24Reference
Rear tire540/65R34Reference
Standard tires (ag)Front: 440/65R24. Rear: 540/65R34Reference
Length400 cmReference
Width214 cmReference
Height (cab)270 cmReference
Ground clearance48 cmReference
Shipping4060 kgReference
Operating4220 kgReference
Max Drawbar1500 kgReference
Fendt Farmer 309Ci attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Charging volts14Reference
Battery volts12Reference
Battery AH90Reference
Attachment overview
Fendt 3/60 loaderReference
Fendt 3S/60 loaderReference
Capacities
Max capacity7500 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
