Tractor · 1981Unverified

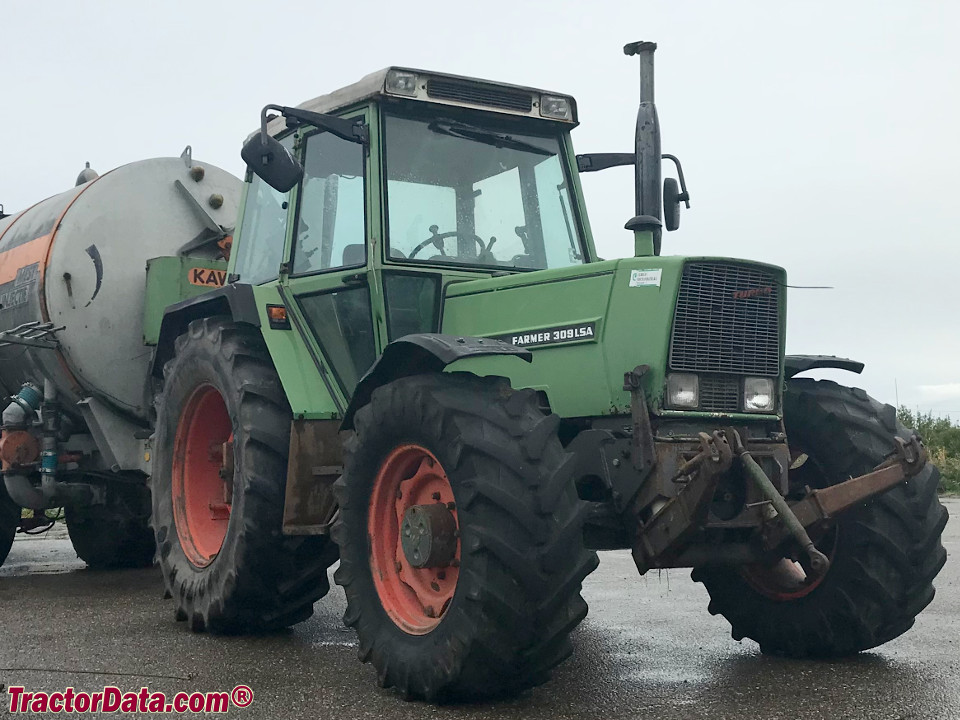

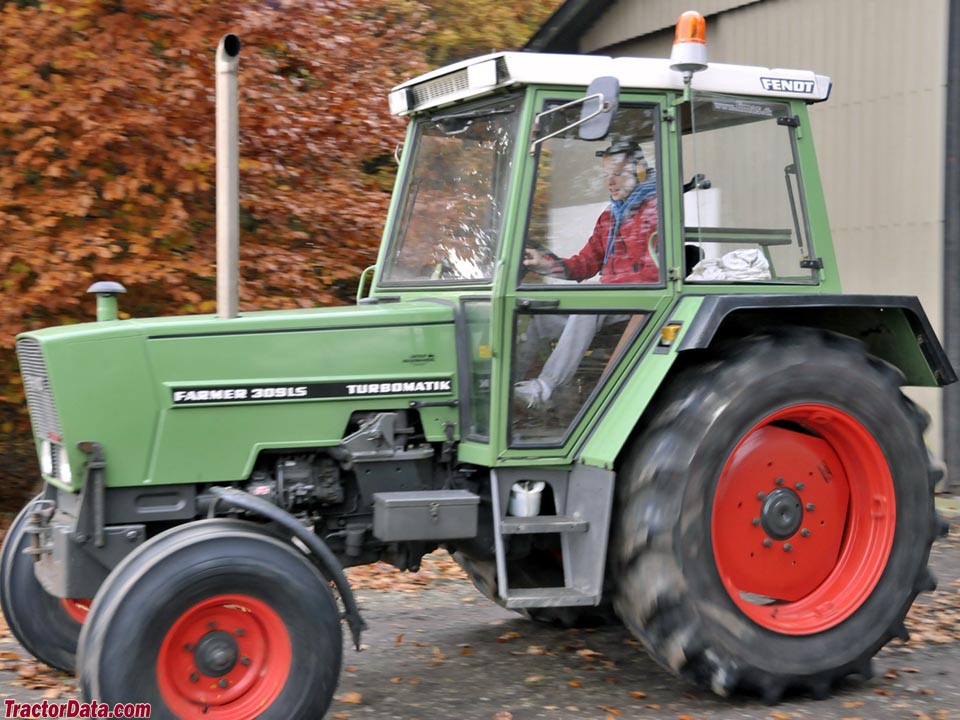

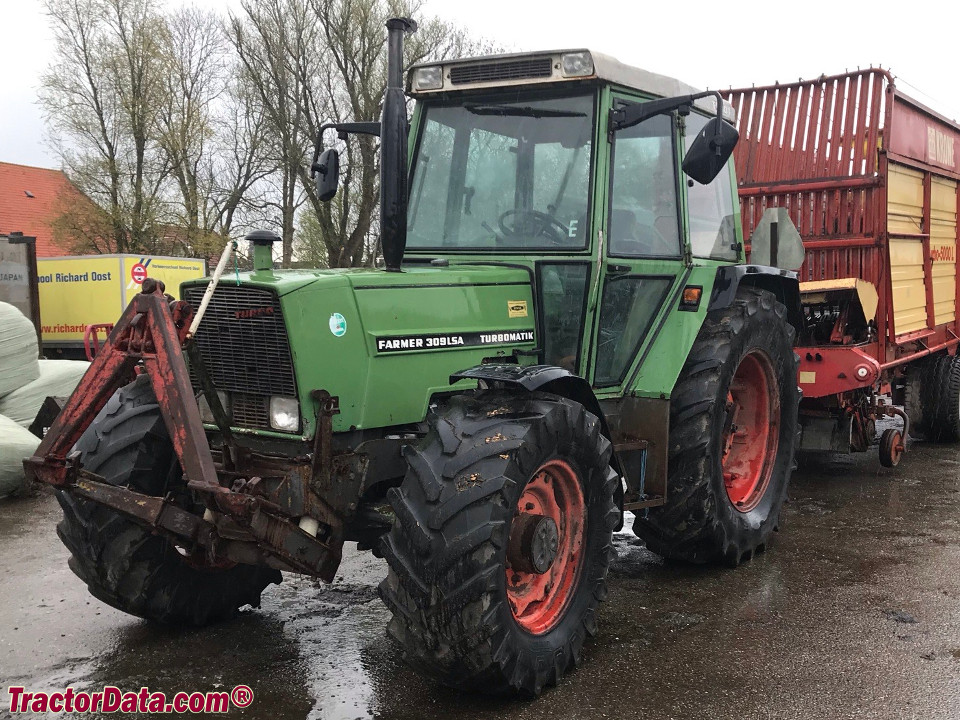

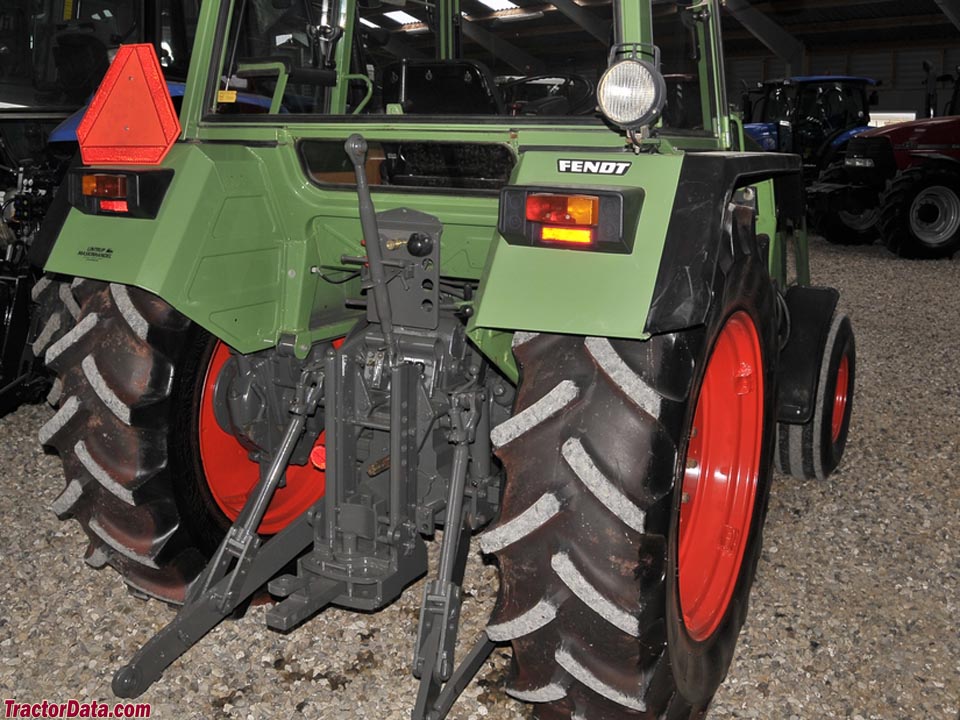

Fendt Farmer 309LS

Name: Fendt Farmer 309LS
Brand: Fendt

Fendt Farmer 309LS — Farmer 300 Series · 86 hp. Reference specifications; pending source verification.

The Fendt Farmer 309LS is a tractor with an 86 hp rating, placing it near the middle of its class in terms of power. Manufactured from 1981 to 1987, this model features a 4-cylinder turbocharged diesel liquid-cooled engine, which drives a four-wheel drive system via a 15-speed gearbox. The listed weight range is 8190 to 8841 pounds. It is designed for use on jobs covering areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

86 hp

Weight

8190 to 8841 pounds

Catalogue coverage

Variants represented

Richest spec table

73 rows

Recorded power

86 hp

Transmissions

15-speed synchromesh

Production years

1981-1987

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendtReference

Row-Crop tractorReference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with heat. Air-conditioning optional.Reference

Engine

MWM 4.2L 4-cyl dieselReference

Fuel tank107.1 LReference

Engine64.1 kWReference

MWMReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke105 x 120 mmReference

Power64.1 kWReference

Rated RPM2350Reference

Torque311.1 NmReference

Torque RPM1600Reference

Starter volts12Reference

Transmission

15-speed synchromeshReference

21-speedReference

TypesynchromeshReference

Gears15 forward and 4 reverseReference

Clutch310mm hydraulic discReference

Three gears (1-3), plus reverse (R), in two ranges (low/high) with two-speed torque converter (L/S). Additional three overdrive gears for road speed.Reference

Gears21 forward and 6 reverseReference

Three gears (1-3), plus reverse (R), in two ranges (low/high) with three-speed torque converter (L/M/S). Additional three overdrive gears for road speed.Reference

PTO & Hydraulics

Typeopen centerReference

Pump flow40.1 lpmReference

Steering flow35.2 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift3700 kgReference

Front HitchIIReference

Front lift2510 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540/750Reference

Rear PTO Type540/750/1000Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

2WD Wheelbase231 cmReference

4WD Wheelbase211 cmReference

Weight8190 to 8841 poundsReference

Front tire7.50-20Reference

2WD Rear tire16.9R34Reference

2WD Standard tires (ag)Front: 7.50-20. Rear: 16.9R34Reference

4WD Standard tires (ag)Front: 13.6R24. Rear: 16.9R34Reference

4WD Optional tires (ag)Front: 12.4-28. Rear: 14.9-38Reference

4WD Optional tires (ag)Front: 14.9R24. Rear: 14.9-38Reference

4WD Optional tires (ag)Front: 13.6R24. Rear: 16.9R34Reference

4WD Optional tires (ag)Front: 13.6R24. Rear: 18.4R34Reference

2WD Optional tires (ag)Front: 10.00-16. Rear: 16.9R34Reference

2WD Optional tires (ag)Front: 11.00-16. Rear: 16.9R34Reference

2WD Length393 cmReference

4WD Length400 cmReference

Width197 cmReference

Height (cab)259 cmReference

2WD Ground clearance47 cmReference

4WD Ground clearance40 cmReference

2WD Shipping3714 kgReference

4WD Shipping4010 kgReference

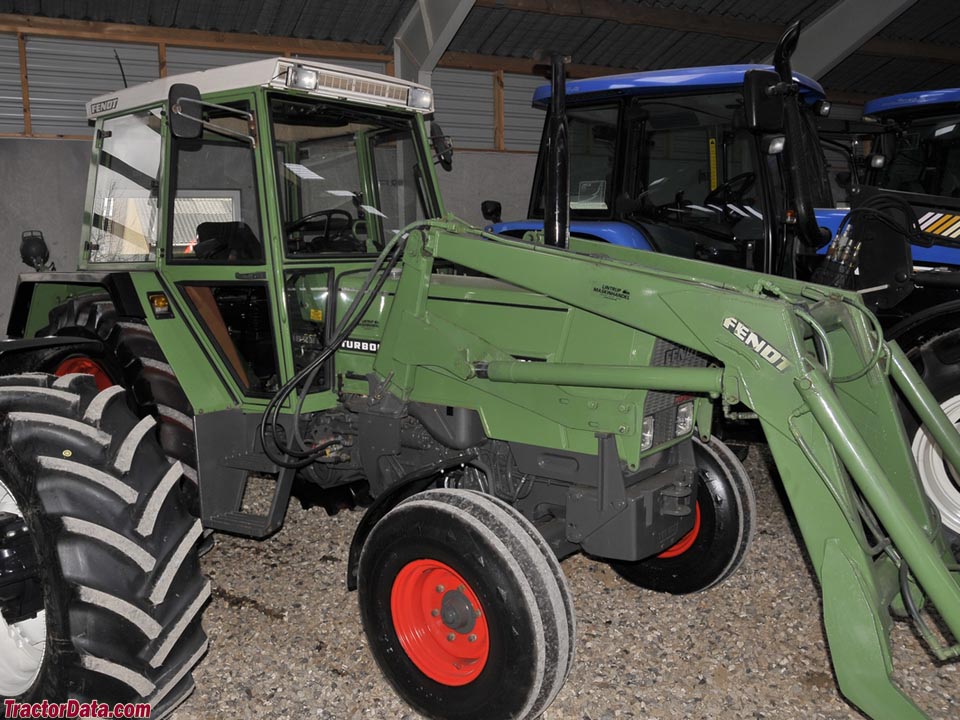

Fendt Farmer 309LS attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps33Reference

Charging amps55Reference

Battery volts12Reference

Battery AH110Reference

Attachment overview

Fendt 3 loaderReference

Fendt 3S loaderReference

Capacities

Max capacity6500 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
