Tractor · 1984Unverified

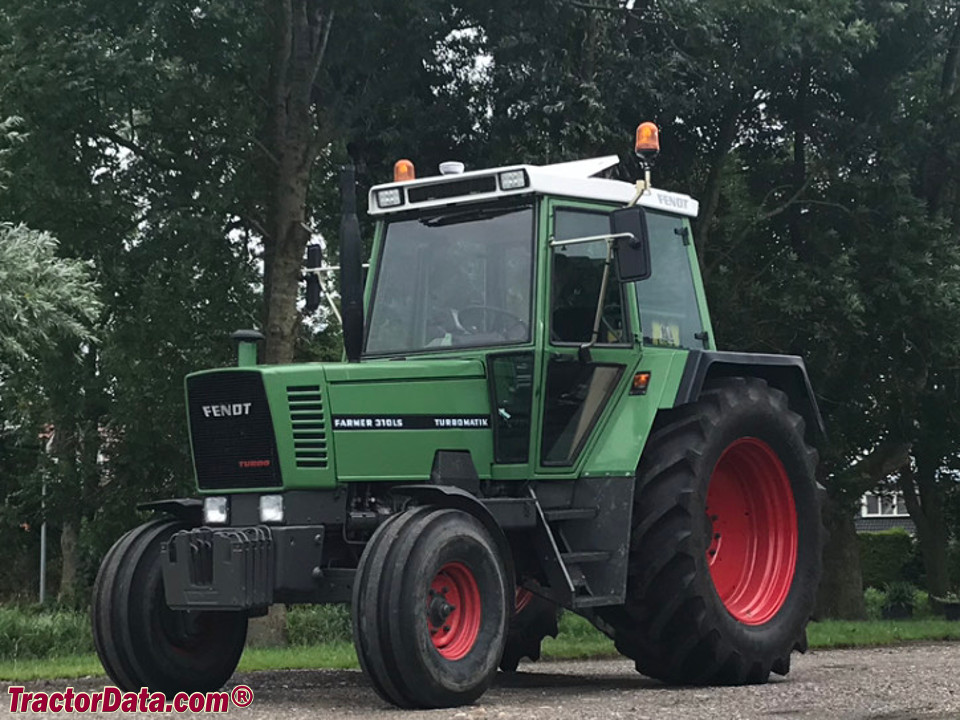

Fendt Farmer 310LS
Fendt Farmer 310LS — Row-Crop tractor · 92 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
92 hp
Weight
9073 to 9812 pounds
Hover a source tag to verify
Overview
ManufacturerFendtReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Variants
310LS2WDReference
310LSA4WDReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank135.1 LReference
Engine68.6 kWReference
MWMReference
turbocharged dieselReference
4-cylinderReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power68.6 kWReference
Rated RPM2350Reference
Torque340.1 NmReference
Torque RPM1500Reference
Transmission
21-speedReference
Gears21 forward and 6 reverseReference
PTO & Hydraulics
Pump flow40.1 lpmReference
Rear lift4000 kgReference
Rear PTO Type540, 750, 1000Reference
Dimensions
Wheelbase239 cmReference
Weight9073 to 9812 poundsReference
Front tire11.00-16Reference
Rear tire16.9R38Reference
Ag front11.00-16Reference
Ag front14.9R24 (4WD)Reference
Ag rear16.9R38Reference
Length414 cmReference
Height272 cmReference
2WD Weight4115 kgReference
4WD Weight4450 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
