Tractor · 1993Unverified

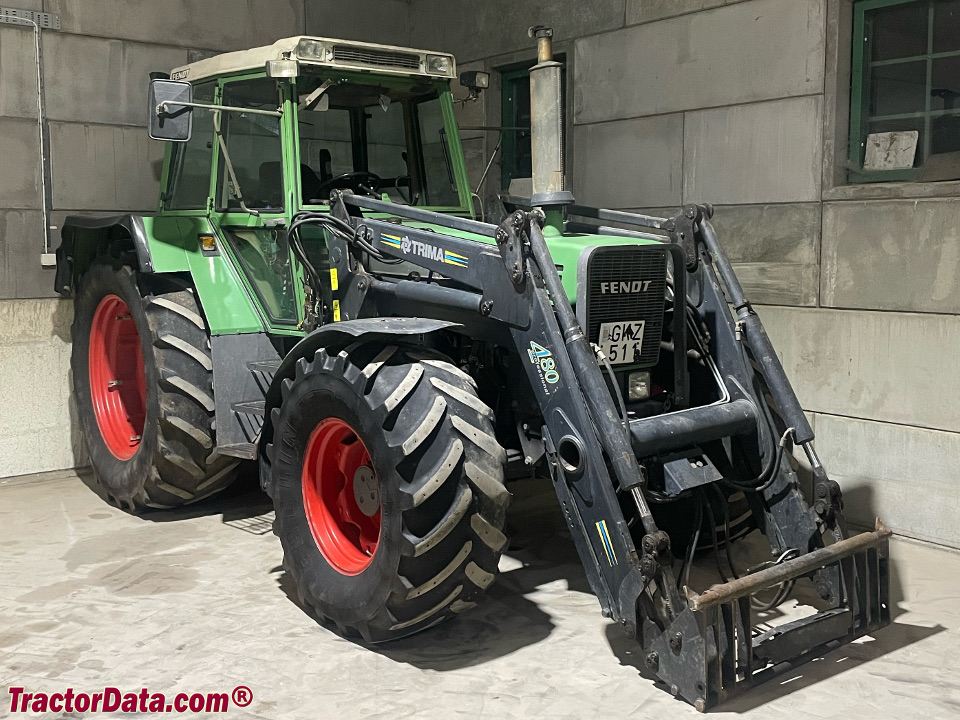

Fendt Farmer 311
Fendt Farmer 311 — Farmer 300 Series · 115 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Weight
5200 kg
Hover a source tag to verify
Overview
ManufacturerFendtReference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
MWM 6.2L 6-cyl dieselReference
Fuel tank160.1 LReference
Engine85.8 kWReference
MWM D226.B6Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.2 LReference
Bore/Stroke105 x 120 mmReference
Power85.8 kWReference
Rated RPM2300Reference
Torque456.0 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
21-speed three-speed power shiftReference
Typethree-speed power shiftReference
Gears21 forward and reverseReference
Three gears, in two ranges, with a three-speed power shift. Additional three overdrive gear ranges. The 40 kph overdrive was not available in all markets.Reference
PTO & Hydraulics
Pump flow74.9 lpmReference
Rear lift5140 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/750/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase258 cmReference
Weight5200 kgReference
Front tire480/70R24Reference
Rear tire520/70R38Reference
Standard tires (ag)Front: 480/70R24. Rear: 520/70R38Reference
Optional tires (ag)Front: 16.9R24. Rear: 18.4R38Reference
Optional tires (ag)Front: 540/65R24. Rear: 600/65R38Reference
Optional tires (ag)Front: 420/70R24. Rear: 480/70R38Reference
Optional tires (ag)Front: 11.2R32. Rear: 11.2R48Reference
Optional tires (ag)Front: 11.2R32. Rear: 12.4R46Reference
Optional tires (ag)Front: 9.5R32. Rear: 9.5R48Reference
Length443 cmReference
Width231 cmReference
Height (cab)281 cmReference
Max weight7500 kgReference
Front tread183 cmReference
Rear tread180 cmReference
Fendt Farmer 311 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Battery volts12Reference
Battery AH135Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
