Tractor · 1993Unverified

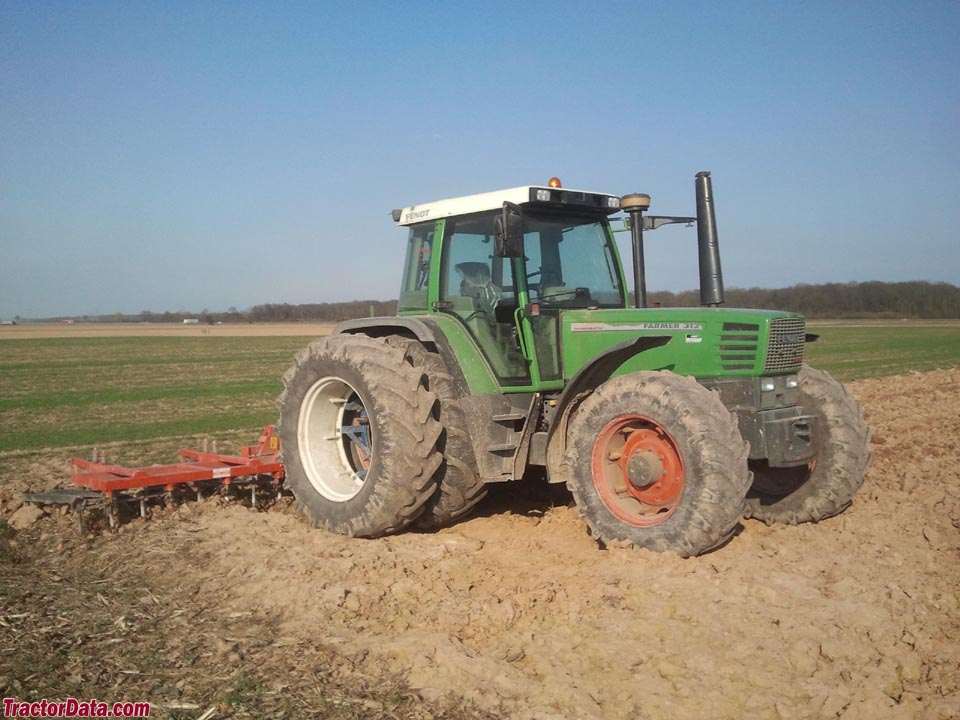

Fendt Farmer 312
Fendt Farmer 312 — Farmer 300 Series · 125 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Weight
5350 kg
Hover a source tag to verify
Overview
ManufacturerFendtReference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
MWM 6.2L 6-cyl dieselReference
Fuel tank160.1 LReference
Engine93.2 kWReference
MWM TD226.B6Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.2 LReference
Bore/Stroke105 x 120 mmReference
Power93.2 kWReference
Rated RPM2400Reference
Torque480.0 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
21-speed three-speed power shiftReference
Typethree-speed power shiftReference
Gears21 forward and reverseReference
Three gears, in two ranges, with a three-speed power shift. Additional three overdrive gear ranges. The 40 kph overdrive was not available in all markets.Reference
PTO & Hydraulics
Pump flow74.9 lpmReference
Rear lift5814 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/750/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase258 cmReference
Weight5350 kgReference
Front tire420/70R28Reference
Rear tire520/70R38Reference
Standard tires (ag)Front: 420/70R28. Rear: 520/70R38Reference
Optional tires (ag)Front: 16.9R26. Rear: 18.4R38Reference
Optional tires (ag)Front: 480/70R26. Rear: 520/70R38Reference
Optional tires (ag)Front: 480/65R38. Rear:Reference
Optional tires (ag)Front: 600/65R38. Rear:Reference
Optional tires (ag)Front: 9.5R36. Rear:Reference
Optional tires (ag)Front: 11.2R48. Rear:Reference
Optional tires (ag)Front: 12.4R32. Rear: 12.4R46Reference
Length448 cmReference
Width231 cmReference
Height (cab)281 cmReference
Max weight7500 kgReference
Front tread180 cmReference
Rear tread180 cmReference
Fendt Farmer 312 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Battery volts12Reference
Battery AH135Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
