Tractor · 1968Unverified

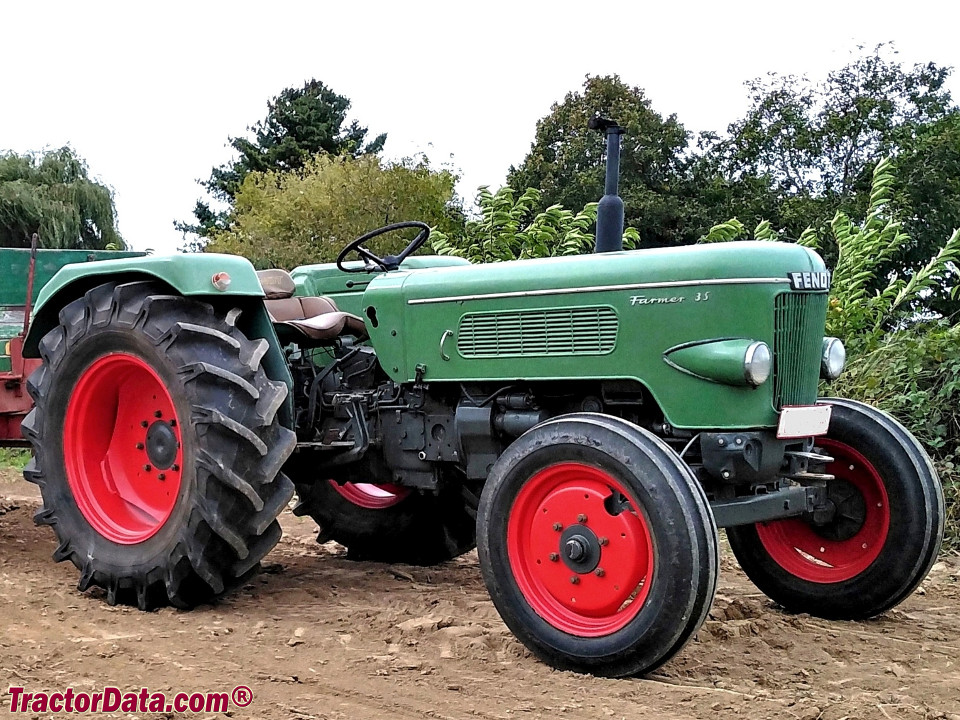

Fendt Farmer 3S

Name: Fendt Farmer 3S
Brand: Fendt

Fendt Farmer 3S · 45 hp. Reference specifications; pending source verification.

The Fendt Farmer 3S is a tractor model with a power output of approximately 45 hp, positioning it at the lower end of its class. It was manufactured between 1968 and 1972. The tractor is equipped with a 4-cylinder diesel liquid-cooled engine and four-wheel drive, paired with a 13-speed gearbox. Its operating weight is listed as 5336 to 5854 pounds, with a maximum operating capacity of 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

45 hp

Weight

5336 to 5854 pounds

Catalogue coverage

Variants represented

Richest spec table

30 rows

Recorded power

45 hp

Recorded weight

2420 kg

Transmissions

13-speed

Production years

1968-1972

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendtReference

Two- or four-wheel driveReference

Drum brakesReference

Open operator station.Reference

Engine

MWM 3.0L 4-cyl dieselReference

Fuel tank82.9 LReference

Engine33.6 kWReference

MWM D208-4Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.0 LReference

Bore/Stroke95 x 105 mmReference

Power33.6 kWReference

Rated RPM2125Reference

Transmission

13-speedReference

Gears13 forward and 4 reverseReference

PTO & Hydraulics

Rear lift2000 kgReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase224 cmReference

Weight5336 to 5854 poundsReference

Front tire6.50-20Reference

2WD Rear tire13-30Reference

2WD Standard tires (ag)Front: 6.50-20. Rear: 13-30Reference

4WD Standard tires (ag)Front: 10.5-18. Rear: 12-36Reference

2WD Optional tires (ag)Front: 7.50-18. Rear: 11-36Reference

Length381 cmReference

Height236 cmReference

2WD Weight2420 kgReference

4WD Weight2655 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
