Tractor · 1999Unverified

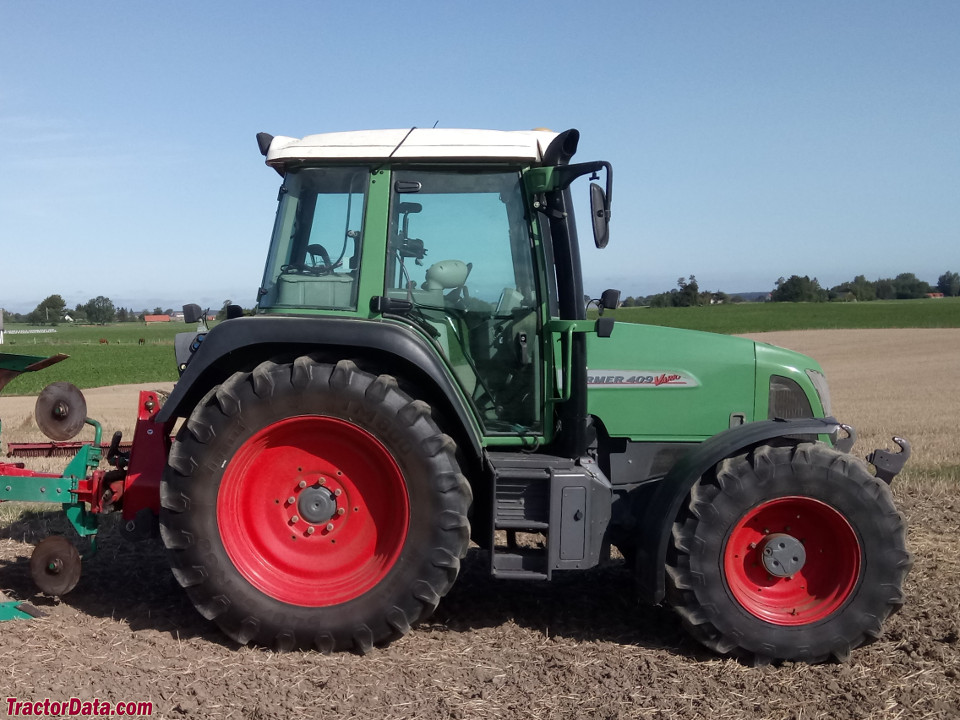

Fendt Farmer 409 Vario
Fendt Farmer 409 Vario — Model year 1999-20042004-2006 · 86 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
86 hp
Weight
5069 kg
Hover a source tag to verify
Overview
ManufacturerFendtReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with heater. Air-conditioning optional.Reference
Engine
Deutz 3.8L 4-cyl dieselReference
Fuel tank165.0 LReference
Engine64.1 kWReference
DeutzReference
turbocharged dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke98 x 126 mmReference
Power64.1 kWReference
Rated RPM2100Reference
Torque386.1 NmReference
Torque RPM1450Reference
Starter volts12Reference
Transmission
continuously variable transmissionReference
TransmissionVarioReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Pump flow74.9 lpmReference
Rear TypeIIIReference
Rear lift6569 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Front PTOindependentReference
Front PTO Type540Reference
Front PTO Type1000Reference
Dimensions
Wheelbase241 cmReference
Weight5069 kgReference
Front tire440/65R24Reference
Rear tire540/65R34Reference
Standard tires (ag)Front: 440/65R24. Rear: 540/65R34Reference
Length418 cmReference
Width216 cmReference
Height (cab)279 cmReference
Max weight7500 kgReference
Ground clearance46 cmReference
Front tread171 cmReference
Rear tread166 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps143Reference
Battery volts12Reference
Battery AH90Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
