Tractor · 1999Unverified

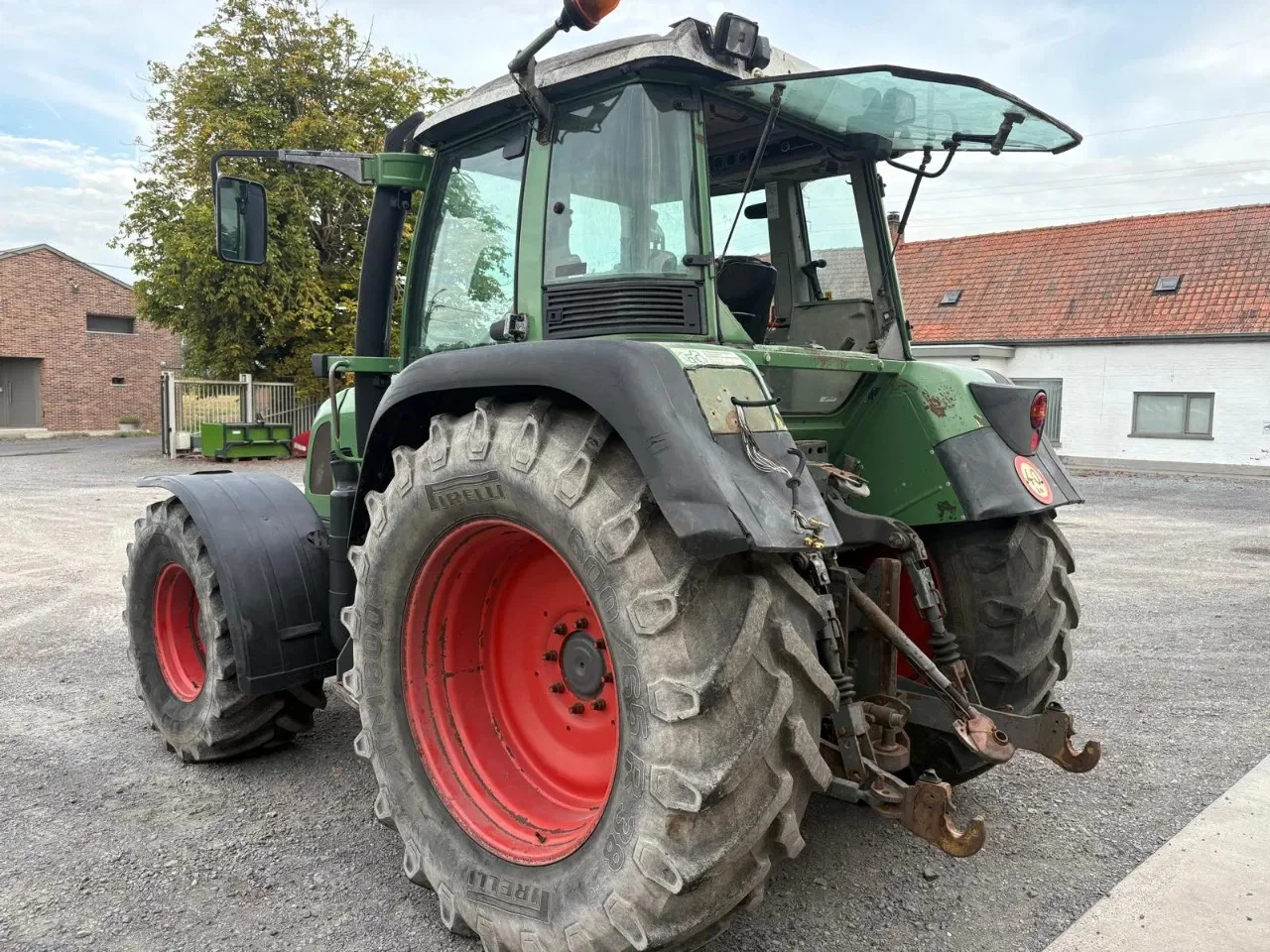

Fendt Farmer 411 Vario
Fendt Farmer 411 Vario — Model year 1999-20042004-2006 · 96 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
96 hp
Max power
80.3 kW
Weight
5239 kg
Hover a source tag to verify
Overview
ManufacturerFendtReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with heater. Air-conditioning optional.Reference
Engine
Deutz 3.8L 4-cyl dieselReference
Fuel tank165.0 LReference
Engine82.0 kWReference
Drawbar (tested)60.5 kWReference
DeutzReference
turbocharged intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke98 x 126 mmReference
Power82.0 kWReference
Rated RPM2100Reference
Torque497.1 NmReference
Torque RPM1450Reference
Starter volts12Reference
Max power80.3 kWReference
Power at rated engine speed71.6 kWReference
Max power60.5 kWReference
Transmission
continuously variable transmissionReference
TransmissionVarioReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (tested)80.3 kWReference
Pump flow74.9 lpmReference
Rear TypeIIIReference
Rear lift6569 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Engine RPM540@1932Reference
Engine RPM1000@1937Reference
Front PTOindependentReference
Front PTO Type540Reference
Front PTO Type1000Reference
Power at rated PTO speed79.2 kWReference
Dimensions
Wheelbase241 cmReference
Weight5239 kgReference
Front tire480/65R24Reference
Rear tire540/65R38Reference
Ag front480/65R24Reference
Ag rear540/65R38Reference
Length419 cmReference
Width239 cmReference
Height (cab)284 cmReference
Max weight7500 kgReference
Ground clearance51 cmReference
Front tread182 cmReference
Rear tread180 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps143Reference
Battery volts12Reference
Battery AH90Reference
Test results
Diesel Vario 4WDSeptember 2002 - October 2002, Link: OCED Tractor Test 2070 fileReference
PTO performanceReference
Fuel use22.3 l/hourReference
Fuel use22.0 l/hourReference
Fuel use22.7 l/hourReference
Drawbar performanceReference
Pull at 7.50 KPHReference
Max pull6066 kgReference
Pull at 3.44 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
