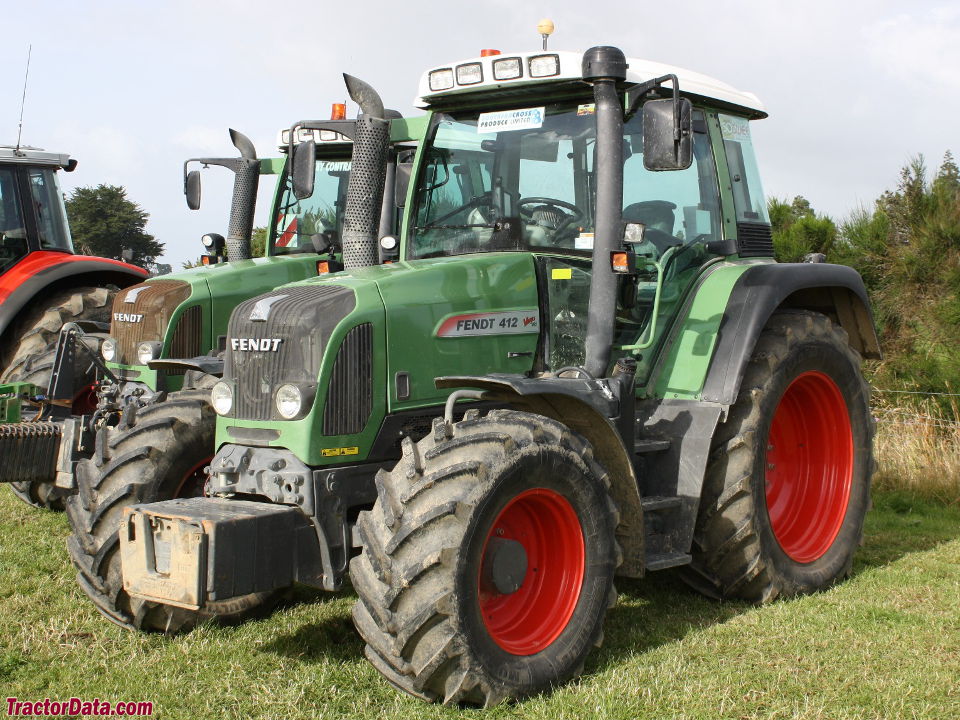

Fendt Farmer 412 Vario
Fendt Farmer 412 Vario — Model year 2001-20042004-2006 · 107 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
107 hp
Max power
86.4 kW
Weight
5239 kg
Hover a source tag to verify
Overview
ManufacturerFendtReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with heater. Air-conditioning optional.Reference
Engine
Deutz 3.8L 4-cyl dieselReference
Fuel tank165.0 LReference
Engine89.5 kWReference
Drawbar (tested)63.5 kWReference
DeutzReference
turbocharged intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke98 x 126 mmReference
Power89.5 kWReference
Compression18:1Reference
Rated RPM2100Reference
Torque540.1 NmReference
Torque RPM1450Reference
Starter volts12Reference
Max power86.4 kWReference
Power at rated engine speed80.0 kWReference
Max power63.5 kWReference
Transmission
continuously variable transmissionReference
TransmissionVarioReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (tested)86.4 kWReference
Pump flow74.9 lpmReference
Rear TypeIIIReference
Rear lift6569 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Engine RPM540@1932Reference
Engine RPM1000@1937Reference
Front PTOindependentReference
Front PTO Type540Reference
Front PTO Type1000Reference
Power at rated PTO speed85.5 kWReference
Dimensions
Wheelbase241 cmReference
Weight5239 kgReference
Front tire540/65R24Reference
Rear tire600/65R38Reference
Ag front540/65R24Reference
Ag rear600/65R38Reference
Length419 cmReference
Width245 cmReference
Height (cab)287 cmReference
Max weight7500 kgReference
Ground clearance53 cmReference
Front tread182 cmReference
Rear tread180 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps143Reference
Battery volts12Reference
Battery AH90Reference
Test results
Diesel Vario 4WDJanuary 2003 - March 2003, Link: OCED Tractor Test 2071 fileReference
PTO performanceReference
Fuel use23.8 l/hourReference
Fuel use24.2 l/hourReference
Drawbar performanceReference
Fuel use23.5 l/hourReference
Pull at 7.24 KPHReference
Max pull5611 kgReference
Pull at 3.71 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
