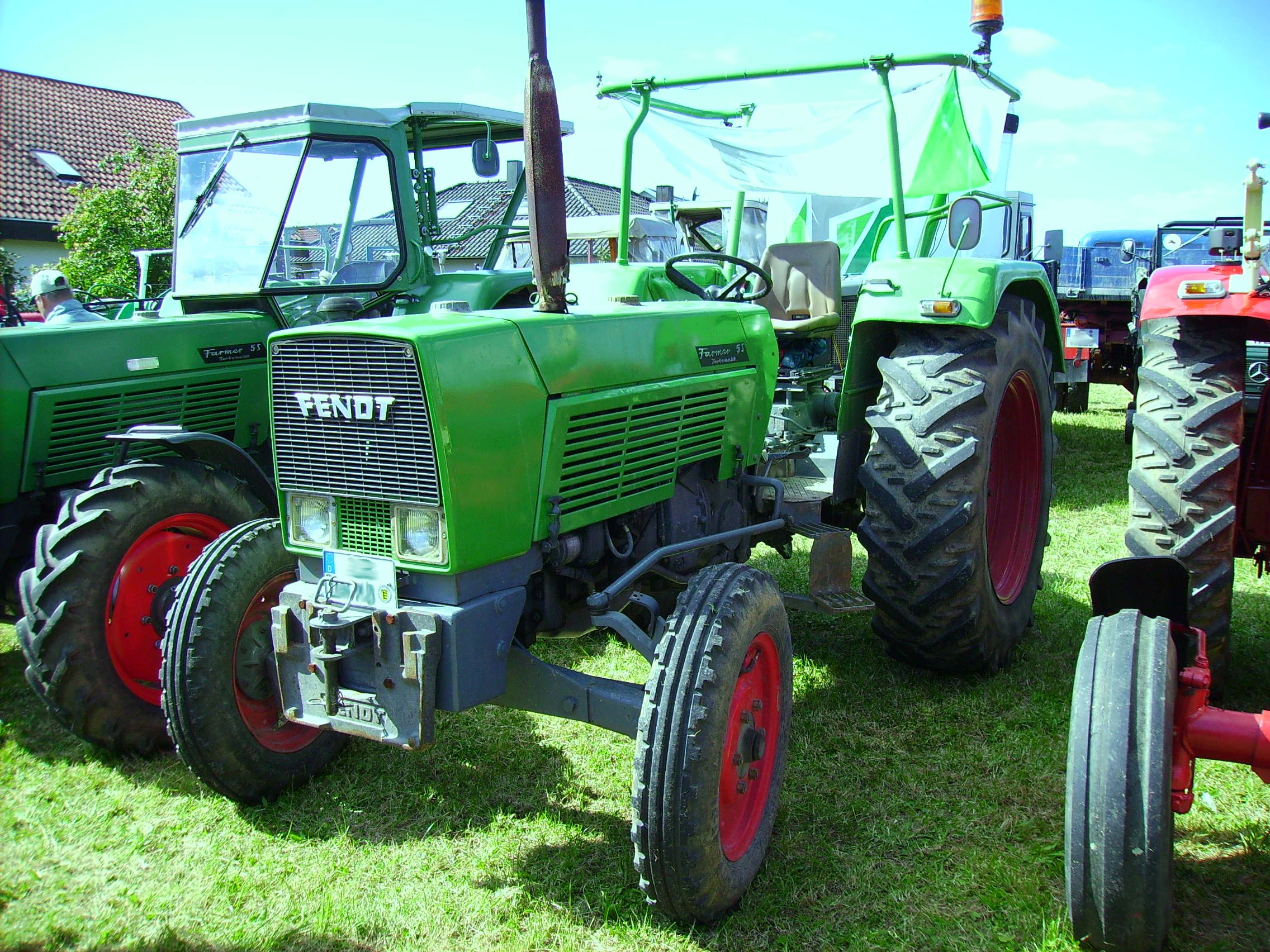

The Fendt Farmer 5S is a tractor model with a rated output of 65 hp, positioned in the middle of its class in terms of power. It was manufactured between 1970 and 1972. The tractor is equipped with a 4-cylinder diesel engine and features mechanical front-wheel drive with a 13-speed gearbox. Its listed weight is 3020 kg, and it is designed for tasks of approximately up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
3020 kg
Catalogue coverage
Variants represented
2
Richest spec table
27 rows
Recorded power
65 hp
Recorded weight
3020 kg
Transmissions
13-speed
Production years
1970-1972
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerFendtReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Engine
MWM 3.0L 4-cyl dieselReference
Fuel tank82.9 LReference
Engine48.5 kWReference
MWMReference
dieselReference
4-cylinderReference
Displacement3.0 LReference
Bore/Stroke95 x 105 mmReference
Power48.5 kWReference
Rated RPM2400Reference
Transmission
13-speedReference
Gears13 forward and 4 reverseReference
PTO & Hydraulics
Rear lift2000 kgReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase224 cmReference
Weight3020 kgReference
Front tire6.50-20Reference
Rear tire13.6-36Reference
Ag front6.50-20Reference
Ag front9.5-24 (4WD)Reference
Ag rear13.6-36Reference
Length381 cmReference
Height245 cmReference
Weight3020 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
