Tractor · 1970Unverified

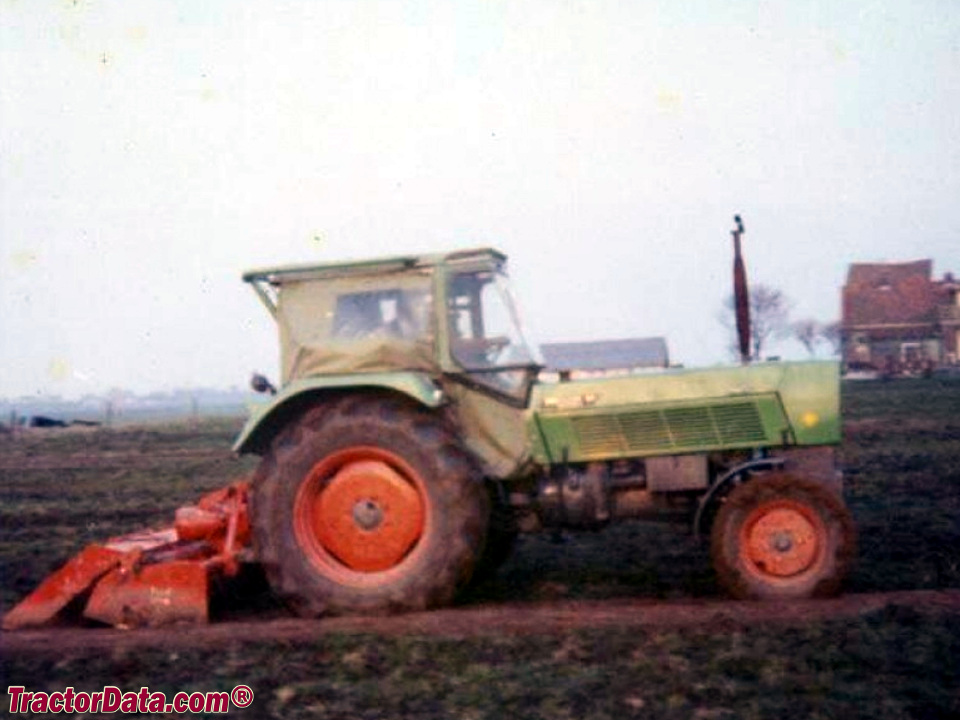

Fendt Favorit 10S
Fendt Favorit 10S · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
8587 to 8940 pounds
Hover a source tag to verify
Overview
ManufacturerFendtReference
Built in Marktoberdorf, GermanyReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Open operator station.Reference
Engine
MWM 5.1L 6-cyl dieselReference
Fuel tank129.8 LReference
Engine (gross)67.1 kWReference
Engine (net)59.7 kWReference
MWM D225Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.1 LReference
Bore/Stroke95 x 120 mmReference
Power (net)59.7 kWReference
Power (gross)67.1 kWReference
Rated RPM2200Reference
Starter volts12Reference
Transmission
16-speedReference
20-speed creeperReference
Gears16 forward and 8 reverseReference
TypecreeperReference
Gears20 forward and 10 reverseReference
PTO & Hydraulics
Rear lift3000 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase261 cmReference
Weight8587 to 8940 poundsReference
Front tire7.50-20Reference
2WD Rear tire14-34Reference
2WD Standard tires (ag)Front: 7.50-20. Rear: 14-34Reference
4WD Standard tires (ag)Front: 9-24. Rear: 14-34Reference
Length439 cmReference
Width210 cmReference
Height (steering wheel)193 cmReference
Height (ROPS)254 cmReference
2WD Weight3895 kgReference
4WD Weight4055 kgReference
Ground clearance40 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
