Tractor · 1970Unverified

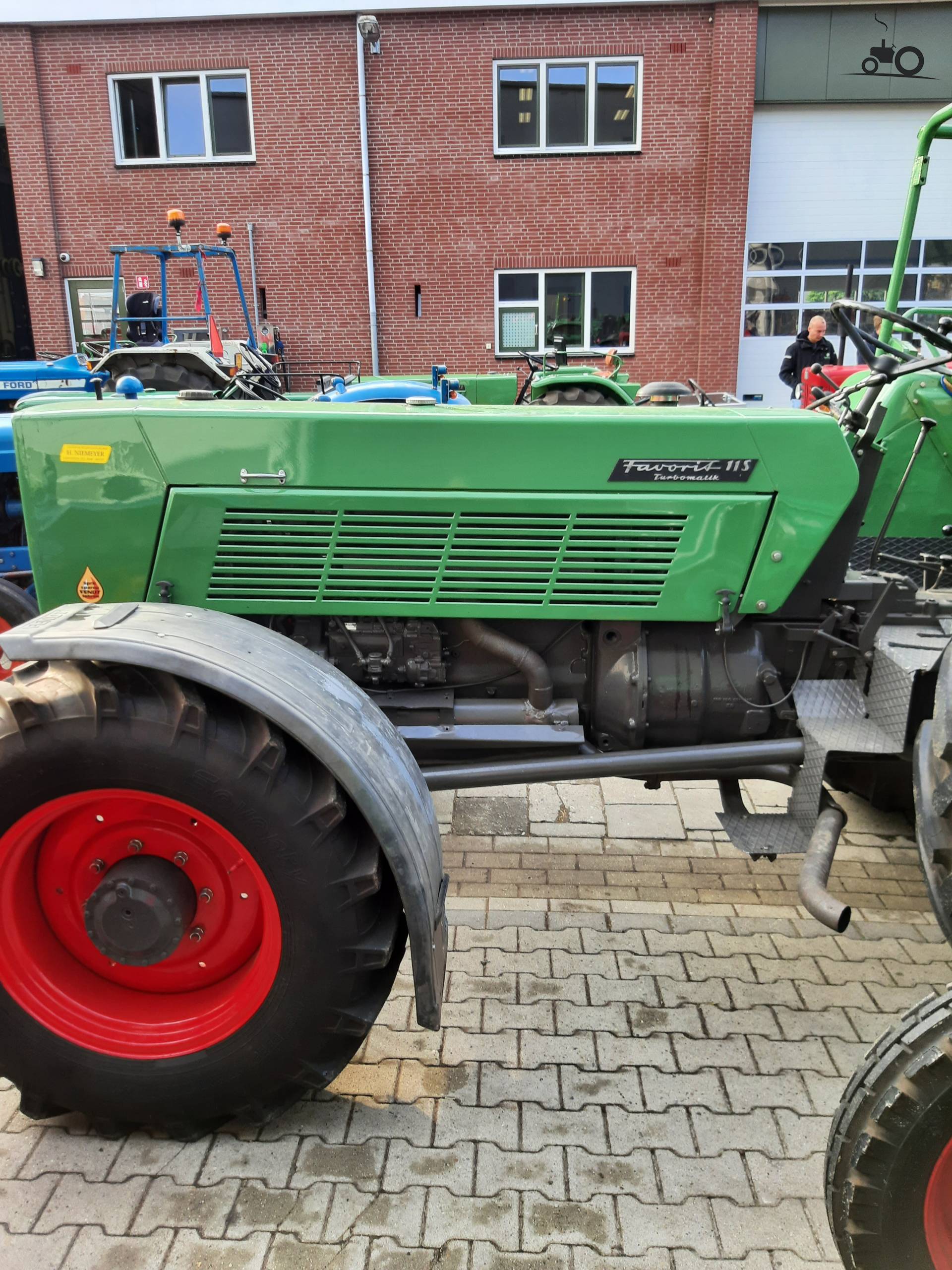

Fendt Favorit 11S
Fendt Favorit 11S · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
9018 to 9900 pounds
Hover a source tag to verify
Overview
ManufacturerFendtReference
Built in Marktoberdorf, GermanyReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Open operator station.Reference
Engine
MWM 5.1L 6-cyl dieselReference
Fuel tank129.8 LReference
Engine (gross)78.3 kWReference
Engine (net)70.8 kWReference
MWM D225Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.1 LReference
Bore/Stroke95 x 120 mmReference
Power (net)70.8 kWReference
Power (gross)78.3 kWReference
Rated RPM2400Reference
Transmission
16-speedReference
20-speed creeperReference
Gears16 forward and 8 reverseReference
TypecreeperReference
Gears20 forward and 10 reverseReference
PTO & Hydraulics
Rear lift3500 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase268 cmReference
Weight9018 to 9900 poundsReference
Front tire7.50-20Reference
Rear tire18.4-34Reference
Ag front7.50-20Reference
Ag front11.2-28 (MFWD)Reference
Ag rear18.4-34Reference
Length440 cmReference
Height256 cmReference
Weight4090 kgReference
Weight4490 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
