Tractor · 1994Unverified

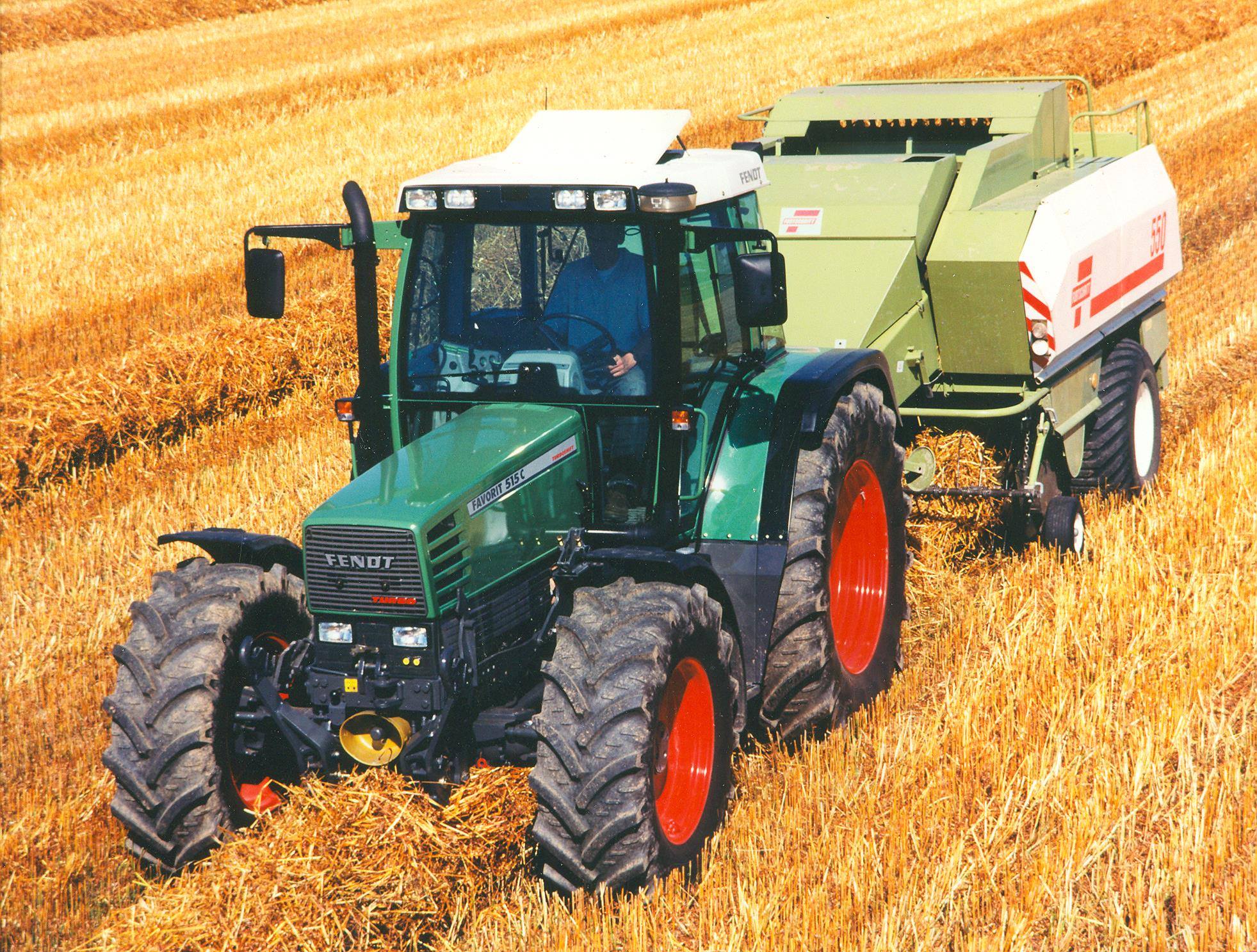

Fendt Favorit 509C
Fendt Favorit 509C — Favorit 500C Series · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
4970 kg
Hover a source tag to verify
Overview
ManufacturerFendtReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic disc brakesReference
Cab standard with heater. Air-conditioning optional.Reference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank135.1 LReference
Engine70.8 kWReference
MWMReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power70.8 kWReference
Rated RPM2300Reference
Torque381.0 NmReference
Torque RPM1500Reference
Starter volts12Reference
Transmission
44-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears44 forward and reverseReference
Four power shift gears (I-IV) in six ranges (1-6) with shuttle. Additional creeper range provides another five ranges.Reference
PTO & Hydraulics
Pump flow101.8 lpmReference
Rear TypeIII/IIReference
Controllower-link draft sensingReference
Rear lift5508 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/750/1000/1400Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase233 cmReference
Weight4970 kgReference
Front tire420/70R24Reference
Rear tire480/70R38Reference
Standard tires (ag)Front: 420/70R24. Rear: 480/70R38Reference
Optional tires (ag)Front: 480/70R24. Rear: 520/70R38Reference
Optional tires (ag)Front: 480/70R24. Rear: 600/65R38Reference
Optional tires (ag)Front: 16.9R24. Rear: 18.4R38Reference
Optional tires (ag)Front: 420/70R24. Rear: 520/70R34Reference
Optional tires (ag)Front: 380/70R24. Rear: 480/70R34Reference
Optional tires (ag)Front: 9.5R32. Rear: 9.5R48Reference
Optional tires (ag)Front: 11.2R32. Rear: 11.2R48Reference
Optional tires (ag)Front: 11.2R32. Rear: 12.4R46Reference
Length418 cmReference
Width209 cmReference
Height (cab)279 cmReference
Max weight7500 kgReference
Ground clearance53 cmReference
Front tread150 to 189 cmReference
Rear tread150 to 189 cmReference
Fendt Favorit 509C attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Battery AH110Reference
Speeds
With 520/70R38 rear tires and 50 kph option.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
