Tractor · 1993Unverified

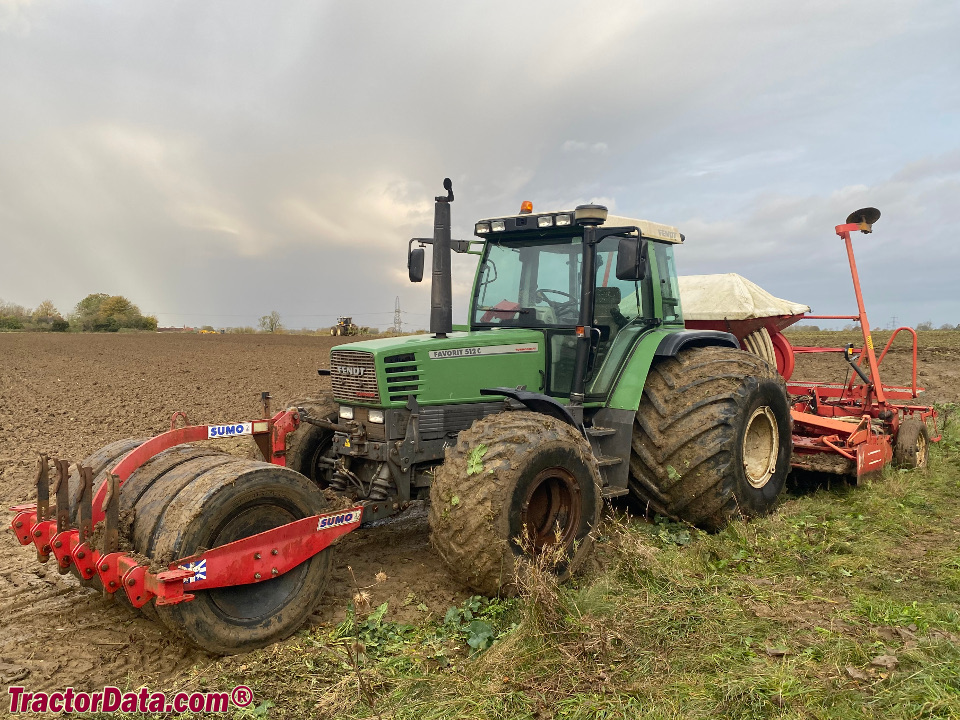

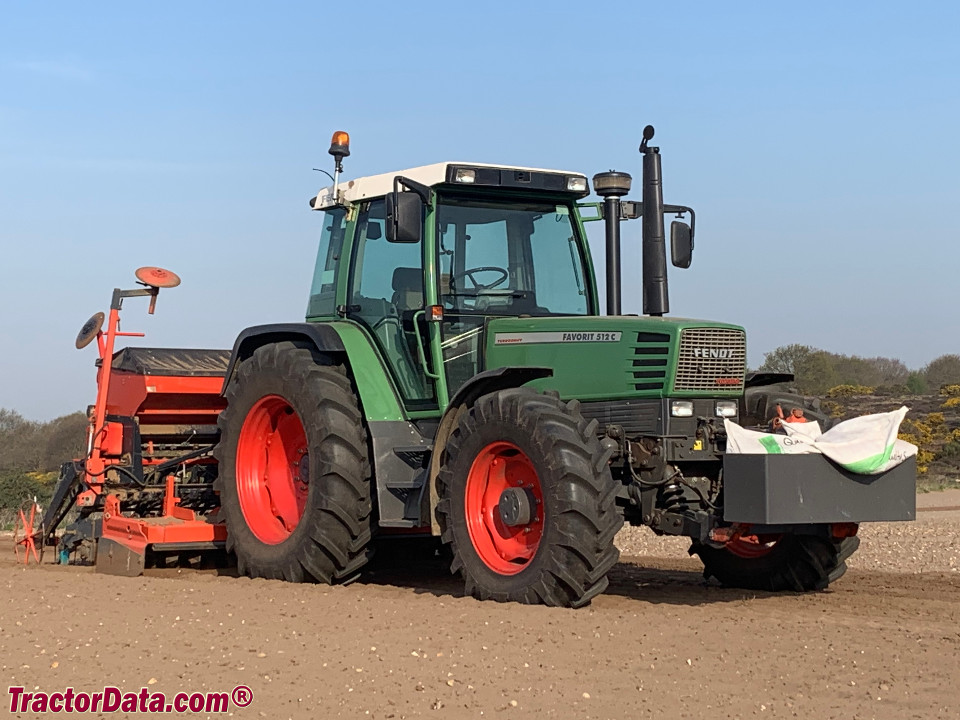

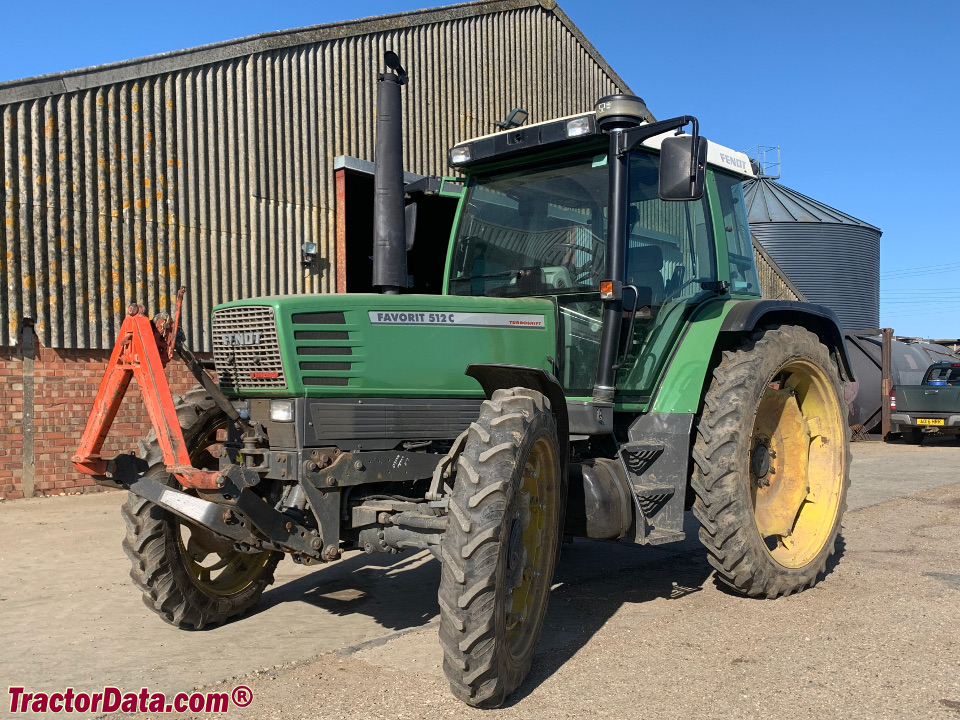

Fendt Favorit 512C
Fendt Favorit 512C — Favorit 500C Series · 125 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Weight
5410 kg
Hover a source tag to verify
Overview
ManufacturerFendtReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic disc brakesReference
Cab standard with heater. Air-conditioning optional.Reference
Engine
MWM 6.2L 6-cyl dieselReference
Fuel tank210.1 LReference
Engine93.2 kWReference
MWMReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.2 LReference
Bore/Stroke105 x 120 mmReference
Power93.2 kWReference
Rated RPM2300Reference
Torque496.0 NmReference
Torque RPM1500Reference
Starter volts12Reference
Transmission
44-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears44 forward and reverseReference
Four power shift gears (I-IV) in six ranges (1-6) with shuttle. Additional creeper range provides another five ranges.Reference
PTO & Hydraulics
Pump flow101.8 lpmReference
Rear TypeIII/IIReference
Controllower-link draft sensingReference
Rear lift6886 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/750/1000/1400Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase261 cmReference
Weight5410 kgReference
Front tire420/70R28Reference
Rear tire520/70R38Reference
Standard tires (ag)Front: 420/70R28. Rear: 520/70R38Reference
Optional tires (ag)Front: 480/70R26. Rear: 520/70R38Reference
Optional tires (ag)Front: 480/65R28. Rear: 600/65R38Reference
Optional tires (ag)Front: 480/70R28. Rear: 580/70R38Reference
Optional tires (ag)Front: 540/65R28. Rear: 650/65R38Reference
Optional tires (ag)Front: 16.9R26. Rear: 18.4R38Reference
Optional tires (ag)Front: 16.9R28. Rear: 20.8R38Reference
Optional tires (ag)Front: 9.5R36. Rear: 11.2R48Reference
Optional tires (ag)Front: 12.4R32. Rear: 12.4R46Reference
Length448 cmReference
Width237 cmReference
Height (cab)281 cmReference
Max weight7500 kgReference
Ground clearance55 cmReference
Front tread150 to 197 cmReference
Rear tread150 to 199 cmReference
Fendt Favorit 512C attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Battery AH135Reference
Speeds
With 520/70R38 rear tires and 50 kph option.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
