Tractor · 1995Unverified

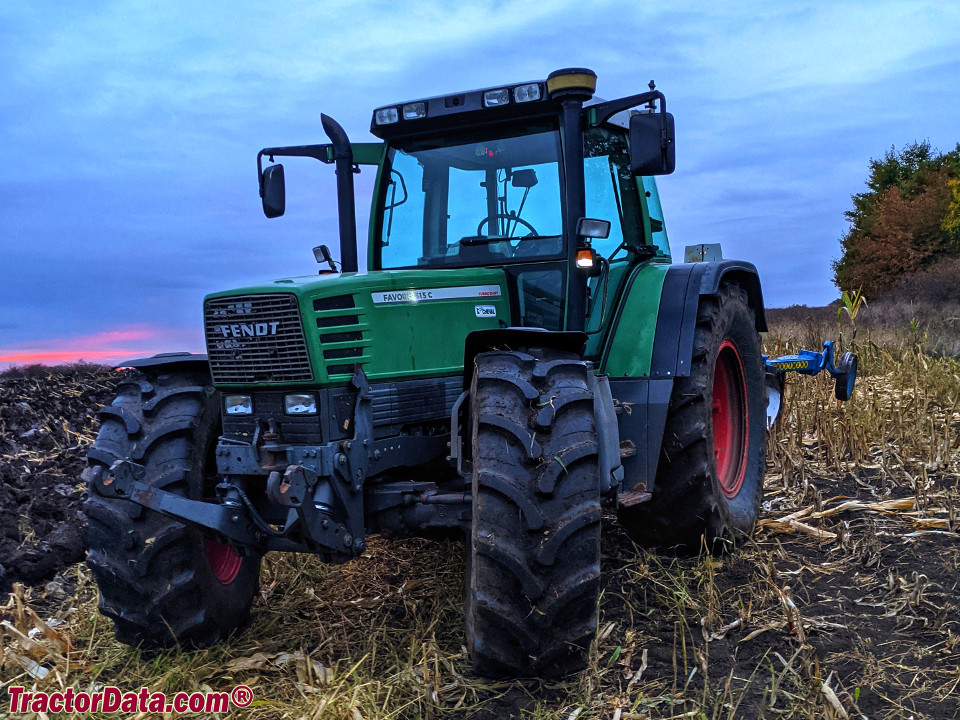

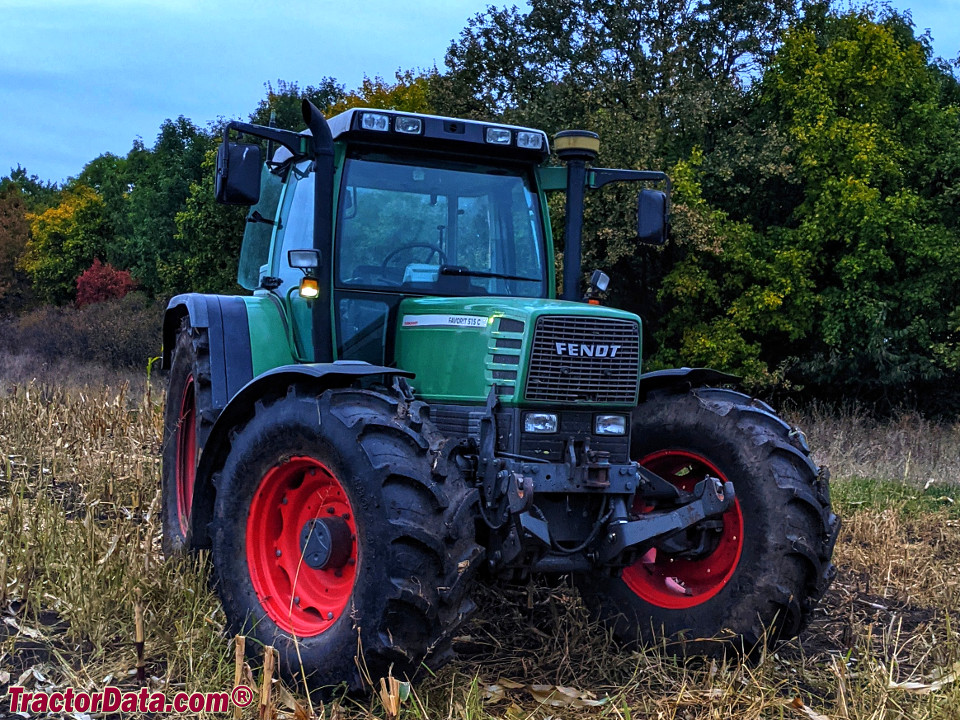

Fendt Favorit 515C

Name: Fendt Favorit 515C
Brand: Fendt

Fendt Favorit 515C — Favorit 500C Series · 150 hp. Reference specifications; pending source verification.

The Fendt Favorit 515C is a tractor that features a rated output of 150 hp, positioning it among the higher-powered machines in its class. It was manufactured from 1995 to 1999. The tractor is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, and it is fitted with a powershift transmission for four-wheel drive. Its listed weight is 5540 kg.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

150 hp

Weight

5540 kg

Catalogue coverage

Variants represented

Richest spec table

58 rows

Recorded power

150 hp

Recorded weight

5540 kg

Transmissions

44-speed four-speed power shift

Production years

1995-1999

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendtReference

Four-wheel driveReference

Power steeringReference

Hydraulic disc brakesReference

Cab standard with heater. Air-conditioning optional.Reference

Engine

MWM 6.2L 6-cyl dieselReference

Fuel tank210.1 LReference

Engine111.9 kWReference

MWMReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.2 LReference

Bore/Stroke105 x 120 mmReference

Power111.9 kWReference

Rated RPM2300Reference

Torque594.1 NmReference

Torque RPM1500Reference

Starter volts12Reference

Transmission

44-speed four-speed power shiftReference

Typefour-speed power shiftReference

Gears44 forward and reverseReference

Four power shift gears (I-IV) in six ranges (1-6) with shuttle. Additional creeper range provides another five ranges.Reference

PTO & Hydraulics

Pump flow101.8 lpmReference

Rear TypeIII/IIReference

Controllower-link draft sensingReference

Rear lift6886 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/750/1000/1400Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase261 cmReference

Weight5540 kgReference

Front tire420/70R28Reference

Rear tire520/70R38Reference

Standard tires (ag)Front: 420/70R28. Rear: 520/70R38Reference

Optional tires (ag)Front: 480/70R26. Rear: 520/70R38Reference

Optional tires (ag)Front: 480/65R28. Rear: 600/65R38Reference

Optional tires (ag)Front: 480/70R28. Rear: 580/70R38Reference

Optional tires (ag)Front: 540/65R28. Rear: 650/65R38Reference

Optional tires (ag)Front: 16.9R26. Rear: 18.4R38Reference

Optional tires (ag)Front: 16.9R28. Rear: 20.8R38Reference

Optional tires (ag)Front: 9.5R36. Rear: 11.2R48Reference

Optional tires (ag)Front: 12.4R32. Rear: 12.4R46Reference

Length448 cmReference

Width244 cmReference

Height (cab)285 cmReference

Max weight7500 kgReference

Ground clearance57 cmReference

Front tread150 to 197 cmReference

Rear tread150 to 199 cmReference

Fendt Favorit 515C attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Battery AH135Reference

Speeds

With 520/70R38 rear tires and 50 kph option.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
