Tractor · 1974Unverified

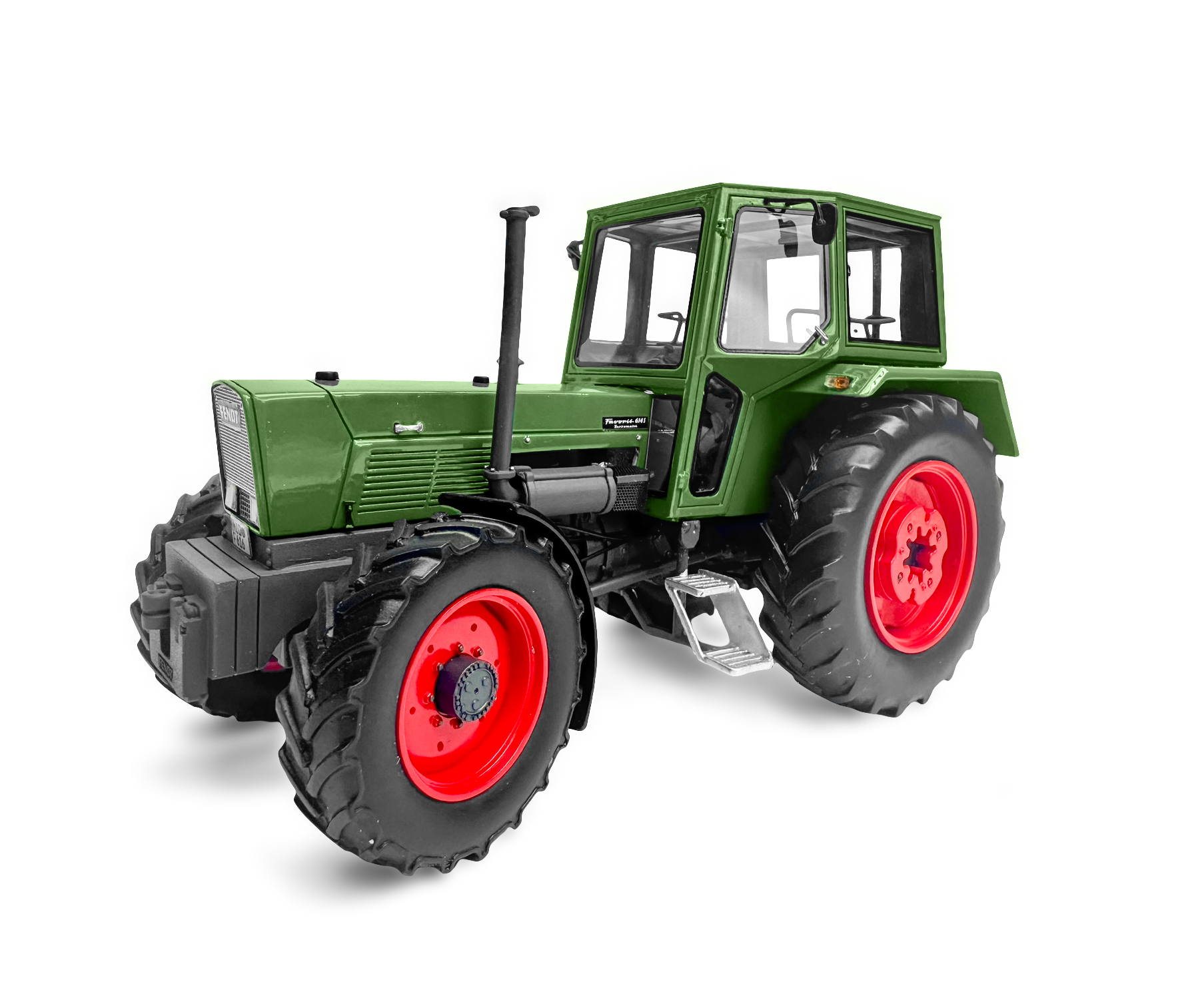

Fendt Favorit 614S
Fendt Favorit 614S — Favorit 600 Series · 135 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Weight
5180 kg
Hover a source tag to verify
Overview
ManufacturerFendtReference
Built in Marktoberdorf, GermanyReference
Four-wheel driveReference
Engine
MWM 6.2L 6-cyl dieselReference
Fuel tank180.2 LReference
Engine100.7 kWReference
MWM TD226-6Reference
turbocharged dieselReference
6-cylinderReference
Displacement6.2 LReference
Bore/Stroke105 x 120 mmReference
Power100.7 kWReference
Rated RPM2400Reference
Transmission
16-speedReference
Gears16 forward and 7 reverseReference
PTO & Hydraulics
Rear lift4900 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase270 cmReference
Weight5180 kgReference
Front tire12.4-28Reference
Rear tire18.4-38Reference
Ag front12.4-28Reference
Ag rear18.4-38Reference
Length470 cmReference
Height269 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
