Tractor · 1993Unverified

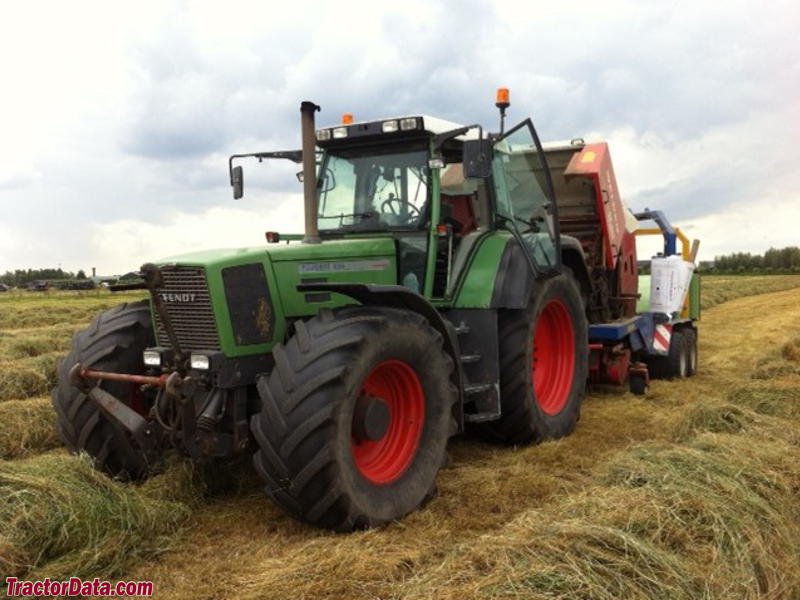

Fendt Favorit 816
Fendt Favorit 816 · 170 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
170 hp
Weight
7571 kg
Hover a source tag to verify
Overview
ManufacturerFendtReference
Four-wheel driveReference
Cab standard.Reference
Engine
MAN 6.9L 6-cyl dieselReference
Fuel tank370.2 LReference
Engine126.8 kWReference
MANReference
turbocharged dieselReference
6-cylinderReference
Displacement6.9 LReference
Bore/Stroke108 x 125 mmReference
Power126.8 kWReference
Rated RPM2200Reference
Torque750.1 NmReference
Torque RPM1400Reference
Transmission
44-speedReference
Gears44 forward and reverseReference
PTO & Hydraulics
Pump flow101.8 lpmReference
Rear lift9181 kgReference
Rear PTO Type750, 1000Reference
Dimensions
Wheelbase283 cmReference
Weight7571 kgReference
Front tire480/70R30Reference
Rear tire580/70R38Reference
Ag front480/70R30Reference
Ag rear580/70R38Reference
Length494 cmReference
Height305 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
