Tractor · 1997Unverified

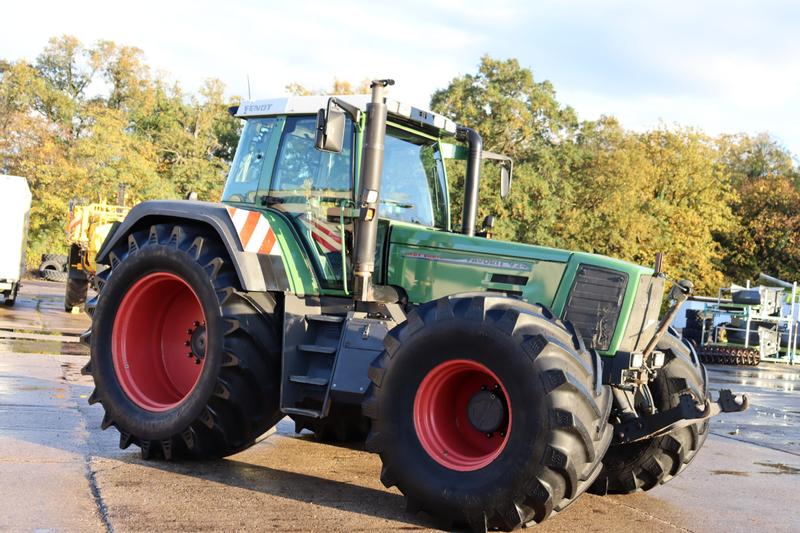

Fendt Favorit 924 Vario
Fendt Favorit 924 Vario — 900 Vario Series · 230 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
230 hp
Weight
8191 kg
Hover a source tag to verify
Overview
ManufacturerFendt (a part of AGCO)Reference
Row-Crop tractorReference
Built in Marktoberdorf, GermanyReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
MAN 6.9L 6-cyl dieselReference
Fuel tank370.2 LReference
Engine171.5 kWReference
MANReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.9 LReference
Bore/Stroke108 x 125 mmReference
Power171.5 kWReference
Rated RPM2300Reference
Torque965.2 NmReference
Torque RPM1400Reference
Transmission
continuously variable transmissionReference
TransmissionVarioReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Pump flow101.8 lpmReference
Rear lift9181 kgReference
Rear PTO Type750, 1000Reference
Dimensions
Wheelbase283 cmReference
Weight8191 kgReference
Front tire480/70R34Reference
Rear tire620/70R42Reference
Ag front480/70R34Reference
Ag rear620/70R42Reference
Length494 cmReference
Height310 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
