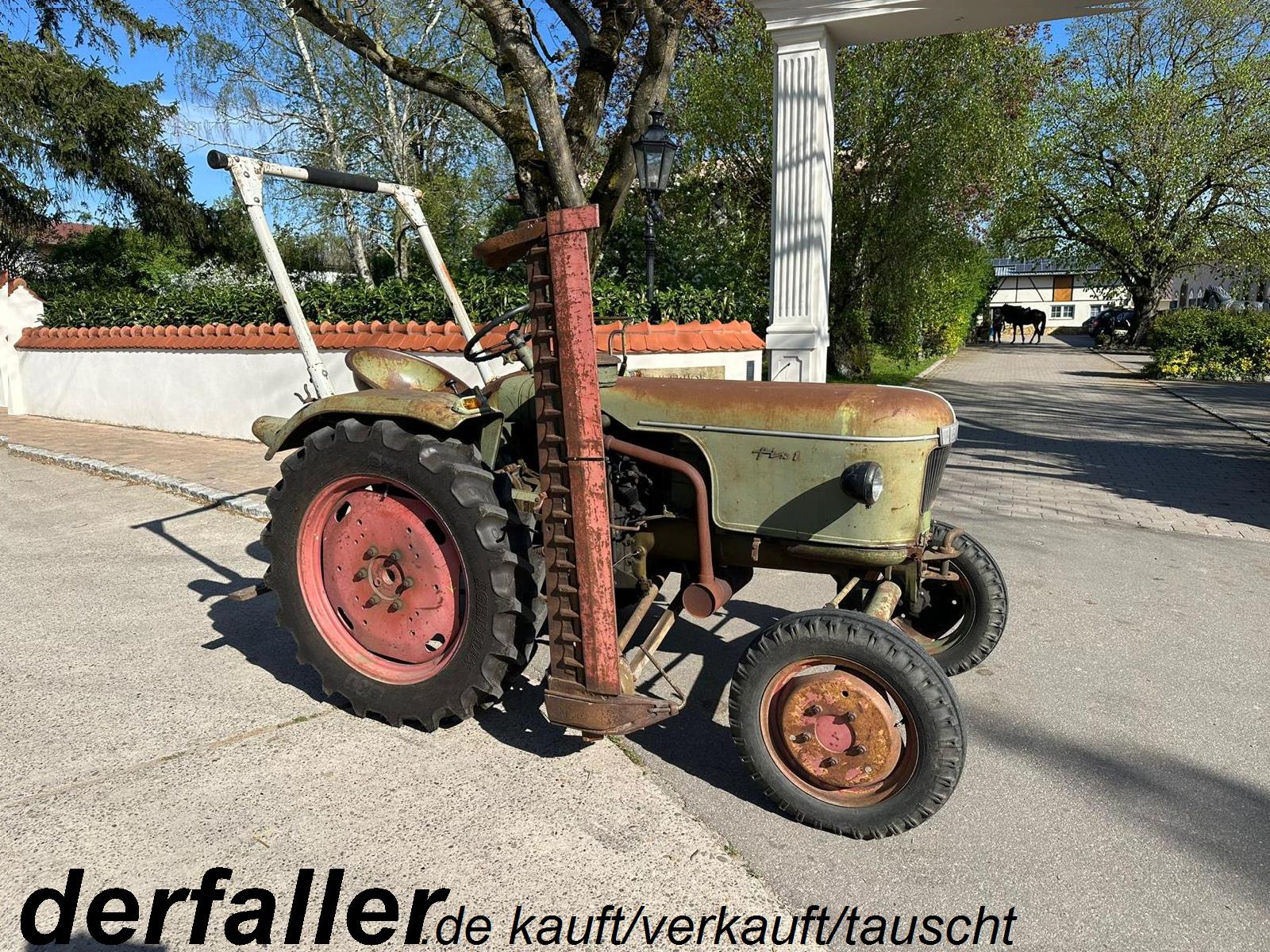

The Fendt Fix 1E is a tractor model with a rated power of 17 hp, positioning it at the lighter end of its class. This model was manufactured from 1958 to 1960. It features a 2-cylinder diesel engine, paired with two-wheel drive and a 6-speed gearbox. The Fix 1E has a listed operating weight of 1265 kg and is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
1265 kg
Catalogue coverage
Variants represented
2
Richest spec table
21 rows
Recorded power
17 hp
Recorded weight
1265 kg
Transmissions
6-speed
Production years
1958-1960
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerFendtReference
Two-wheel driveReference
Engine
MWM 1.4L 2-cyl dieselReference
Fuel tank0.0 LReference
Engine12.7 kWReference
MWMReference
dieselReference
2-cylinderReference
Displacement1.4 LReference
Power12.7 kWReference
Rated RPM2000Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase175 cmReference
Weight1265 kgReference
Front tire5.00-16Reference
Rear tire9.5-28Reference
Ag front5.00-16Reference
Ag rear9.5-28Reference
Length289 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
