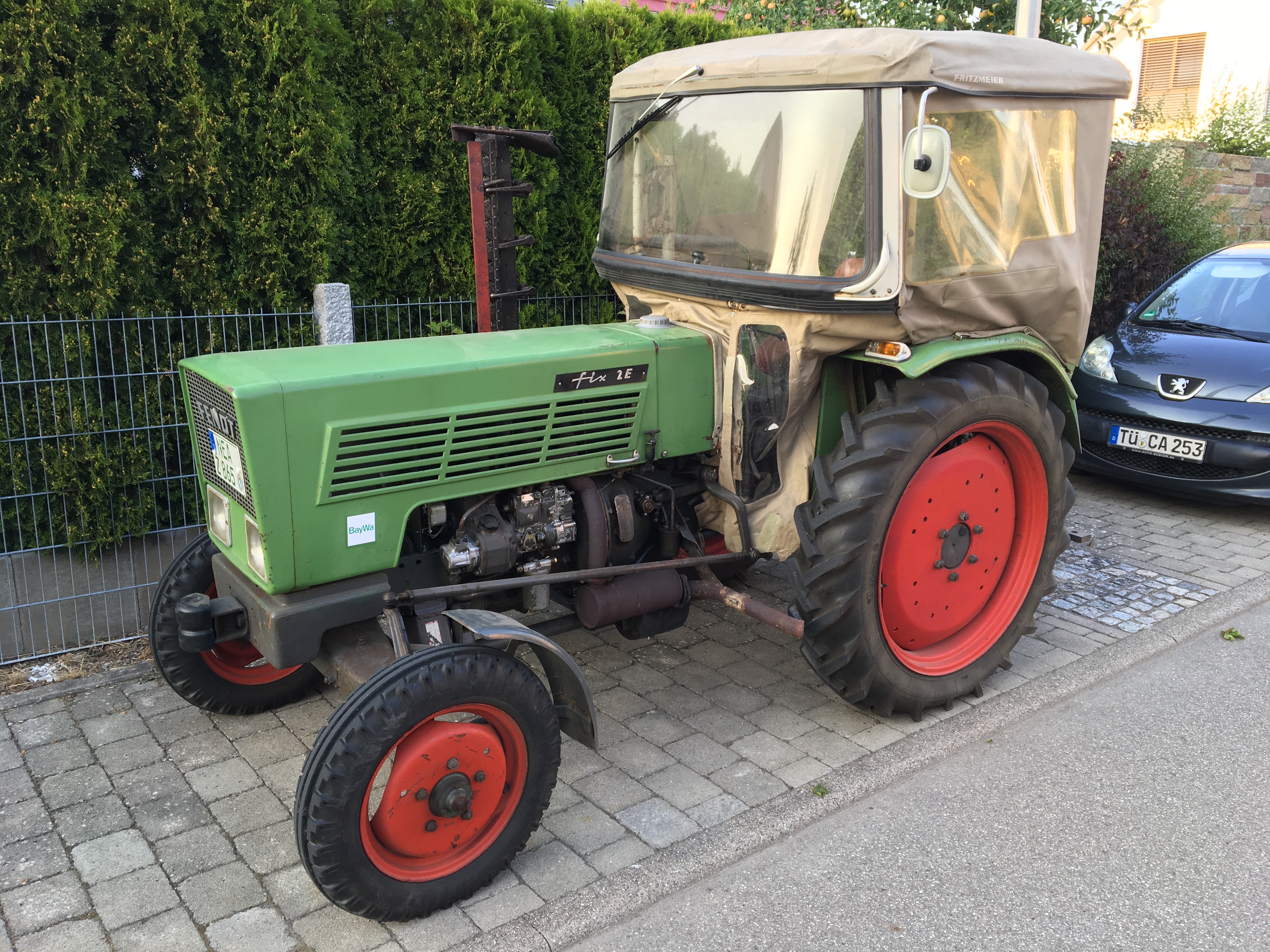

The Fendt Fix 2E is a tractor with a rated power of 22 hp, positioning it at the lighter end of its class. It was manufactured between 1968 and 1970. The tractor is equipped with a 2-cylinder diesel engine and two-wheel drive, paired with a 6-speed gearbox. Its listed operating weight is 1610 kg, suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1610 kg
Catalogue coverage
Variants represented
2
Richest spec table
24 rows
Recorded power
22 hp
Recorded weight
1610 kg
Transmissions
6-speed
Production years
1968-1970
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerFendtReference
Total built682Reference
Two-wheel driveReference
Engine
MWM 1.7L 2-cyl dieselReference
Engine16.4 kWReference
MWMReference
dieselReference
2-cylinderReference
Displacement1.7 LReference
Bore/Stroke95 x 120 mmReference
Power16.4 kWReference
Rated RPM2050Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear lift1500 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase186 cmReference
Weight1610 kgReference
Front tire5.00-16Reference
Rear tire9.5-30Reference
Ag front5.00-16Reference
Ag rear9.5-30Reference
Length318 cmReference
Height219 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
