Tractor · 2007Unverified

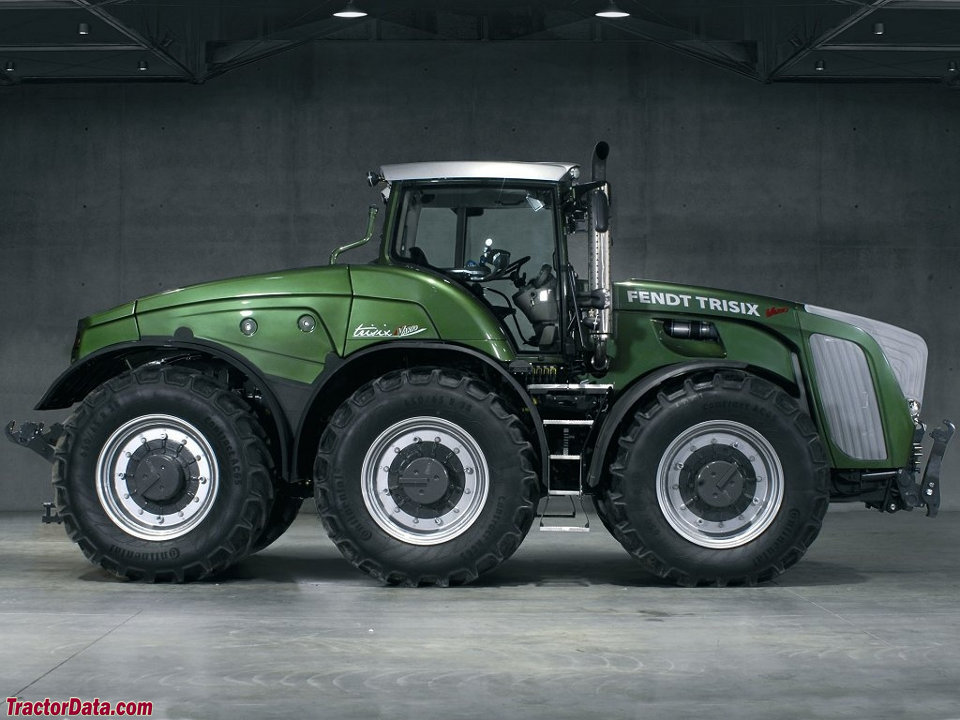

Fendt Trisix
Fendt Trisix — Experimental tractor · 500 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
500 hp
Hover a source tag to verify
Overview
ManufacturerFendtReference
Experimental tractorReference
Drive6x6 6WDReference
Anti-lock braking (ABS) brakesReference
Fendt X5 cab with air-conditioning.Reference
Engine
MAN 12.4L 6-cyl dieselReference
Fuel tank1360.0 LReference
Engine (net)372.9 kWReference
MAN D2676Reference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement12.4 LReference
Bore/Stroke126 x 166 mmReference
EmissionsStage 3BReference
Rated Power (net)372.9 kWReference
Maximum Power (net)402.7 kWReference
PTO & Hydraulics
Pump flow219.9 lpmReference
Dimensions
Front tire650/65R38Reference
Rear tire650/65R38Reference
Ag front650/65R38Reference
Ag rear650/65R38Reference
Length760 cmReference
Width275 cmReference
Height (cab)355 cmReference
Max weight29000 kgReference
Transmission
TransmissionVario CVTReference
Gearsinfinite forward and reverseReference
Two continuously variable transmissions power the three axles.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
